IP67 Waterproof Panel-Mount USB 2.0 Type-B to 5-pin Header Cable


Categories:
> Panel-Mount USB-B Cables, IP-Rated Rugged Cables, USB 2.0 Cables
IP67 Waterproof Panel-Mount USB 2.0 Type-B to 5-pin Header Cable

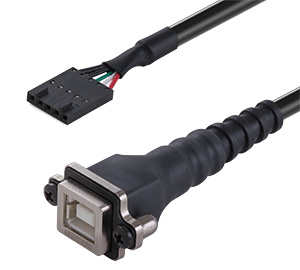

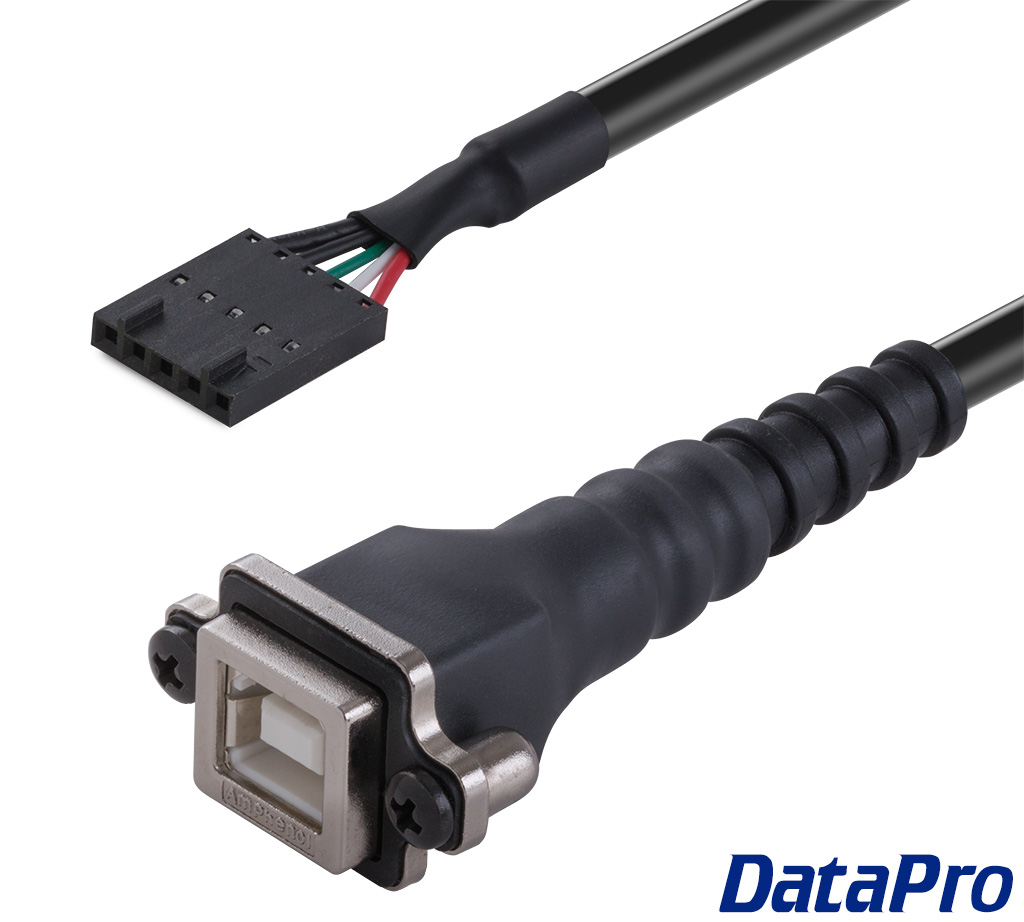

This waterproof and dustproof USB panel-mount cable features an IP67 rated female USB Type-B connector on one end, and a 5-pin motherboard header style connector on the other.

1580-00W   USB B Waterproof P/M to Socket
Custom build at $34.00 + $1.00 per foot.
Some custom products may not be REACH compliant.
  Add to Cart

This cable can also be terminated with:
Optional Connectors
  • DuPont-style connectors
  • 4-Pin Polarized and Unpolarized
  • 5-Pin Polarized and Unpolarized
  • Locking
  • 4-Pin and 5-Pin JST Connectors
  • and more!
See our Custom Cables page or contact us!

An alternative to bulky waterproof USB connectors that require a screw-on cap, ours is waterproof even when directly exposed to the elements. Consisting of a watertight connector and gasket, it creates a seal around its cutout.

This part's IP67 rating means it can be submerged up to 1m (3.3f). As opposed to IP68, which covers a depth greater than 1m. Perfect for extending USB ports to a flying bridge, marine dash panel, motorcycle, or anywhere else that may experience splashing and light immersion. Also great for industrial and manufacturing applications.

Waterproof Panel Mount USB Connector Diagram

Please note that if you would like to extend your USB connection more than 15 feet from source to device, you'll need to use an active USB booster cable or active USB booster.


Drawings & Models:

PartDownloads
1580WPDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
REACH Compliant
CL2 In-Wall Rated
IPC Compliant
Made in the USA

Related Products:

Features:

  • Panel-Mountable Female USB Type-B Connector
  • Custom length available up to 15ft
  • CL2 rated for in-wall use
  • Includes mounting hardware
  • Gold-plated contacts
  • USB socket is waterproof and dustproof even without a cover


Specifications:

  • USB 1.1/2.0 High-Speed Compatible
  • Max speed 480 Mb/s
  • RoHS compliant
  • CL2 rated
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
  • IP67 rated (Submersion up to 1m, or 3.3ft)
