Non-Term VGA Spliced Cable (Male/Male)


Categories:
> Spliced VGA Cables
Non-Term VGA Spliced Cable (Male/Male)
Directly connect a video monitor and source through conduit or wiring holes, without any on-site termination! Our spliced VGA cables use a breakaway connector to run through tight spaces, and reterminate to 15-pin in a snap.

1151-10C   VGA Spliced Coaxial Cable M/M   10 ft $ 39.00   49 in stock   Add to Cart
1151-15C   VGA Spliced Coaxial Cable M/M   15 ft $ 45.00   155 in stock   Add to Cart
1151-20C   VGA Spliced Coaxial Cable M/M   20 ft $ 50.00   177 in stock   Add to Cart
1151-25C   VGA Spliced Coaxial Cable M/M   25 ft $ 55.00   51 in stock   Add to Cart
1151-30C   VGA Spliced Coaxial Cable M/M   30 ft $ 59.00   106 in stock   Add to Cart
1151-40C   VGA Spliced Coaxial Cable M/M   40 ft $ 69.00   304 available Jul 6th   Backorder
1151-50C   VGA Spliced Coaxial Cable M/M   50 ft $ 79.00   24 in stock   Add to Cart
1151-75C   VGA Spliced Coaxial Cable M/M   75 ft $ 99.00   21 in stock   Add to Cart
1151-99C   VGA Spliced Coaxial Cable M/M   100 ft $ 119.00   10 in stock   Add to Cart
1151-CAP   VGA Spliced Cap For Conduit   EACH $ 14.95   10 in stock   Add to Cart
1151-M   VGA to DIN Cable Stub (M)   EACH $ 19.00   22 in stock   Add to Cart
1151-00C   VGA Spliced Coaxial Cable M/M
Custom build at $35.00 + $1.50 per foot.
Some custom products may not be REACH compliant.
  Add to Cart
1151-00P   VGA Spliced Coax Cable PLENUM
Custom build at $90.00 + $3.80 per foot.
Some custom products may not be REACH compliant.
  Add to Cart

Please note that the splice connector does not conduct the ID and DDC channels (pins 5 and 9) of the VGA signal. Most computer monitors have no issue with this, but some television and projector models cannot detect a signal without these channels.

The DataPro SVGA spliced cable is used for long runs of VGA, XGA, or SVGA monitor cable, and is a non-terminated style cable for use in wire runs through conduit, walls, boats, etc.

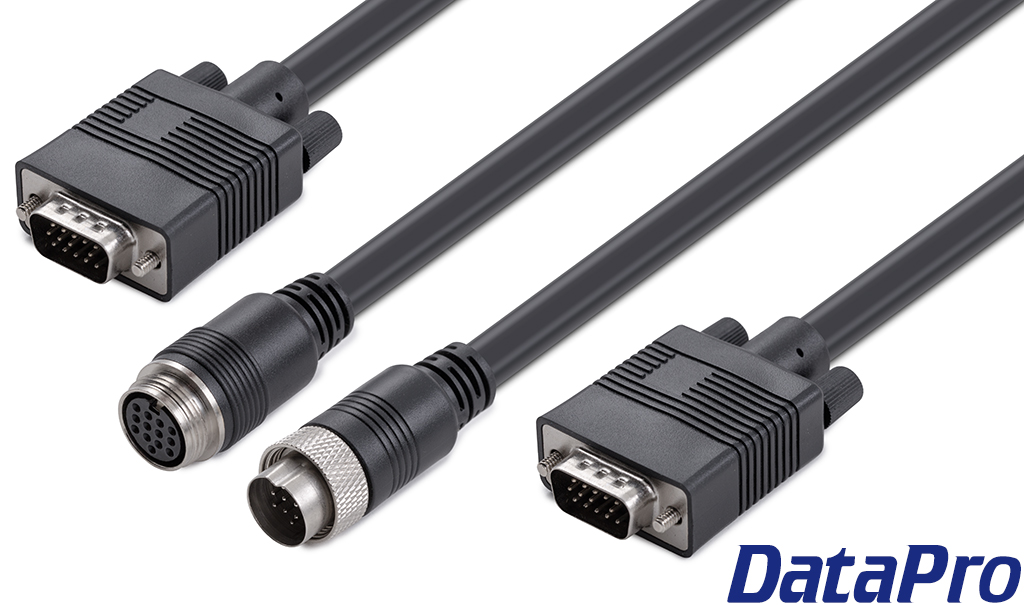

The first piece of the set has a male VGA connector and a locking male circular connector, available in various lengths. The second piece has a female circular and a male VGA connector, and measures approximately 18 inches long. Both parts are included when you order.

By splicing the two VGA connectors with the circular connector, this cable can be run through wiring holes as small as 0.75" (19mm). Once reassembled, the splice connectors screw-lock together for a tight and secure seal.


Splice connector fits through 3/4" conduit!

The cable is made of 75 Ohm video-grade coaxial wire. This low-signal-loss cable allows lengths of up to 200 feet in most cases, with good signal strength.

We also offer spliced, non-terminated VGA cables in the following configurations:

If you don't need the non-terminated splice, see our standard VGA male/male cable.


Drawings & Models:

PartDownloads
1151PDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
REACH Compliant
CL2 In-Wall Rated
IPC Compliant

Related Products:

Features:

  • Gold-plated contacts
  • Low-loss cable allows lengths of up to 200 feet in most cases, with good strength and fidelity.
  • Splice connector fits through 3/4" (19mm) diameter conduit.


Specifications:

  • 2x Male DH15 VGA Connectors, No Pin #9
  • 1x Male Circular 13 Pin Connector
  • 1x Female Circular 13 Pin Connector
  • Splice connector diameter: 0.72" (18.3mm)
  • Wire Gauge 28 & 24 AWG
  • RoHS Compliant
  • CL2 Rated
  • Made of 75 Ohm video-grade coaxial wire
  • Triple-shielded mini-coax wire
