Non-Term VGA Spliced Extension Cable


Categories:
> Spliced VGA Cables
Non-Term VGA Spliced Extension Cable
Extend a VGA video signal through walls, floors, or ceilings in seconds with a spliced VGA non-term extension cable. These cables feature a small, rounded locking connector for a low-profile installation, and easily plug into a breakaway pigtail on the other end. No crimping or soldering required, just plug and go!

1151-CAP   VGA Spliced Cap For Conduit   EACH $ 14.95   10 in stock   Add to Cart
1151-F   VGA to DIN Cable Stub (F)   EACH $ 19.00   62 in stock   Add to Cart
1153-10C   VGA Spliced Coax Extension M/F   10 ft $ 39.00   10 in stock   Add to Cart
1153-15C   VGA Spliced Coax Extension M/F   15 ft $ 45.00   6 in stock   Add to Cart
1153-20C   VGA Spliced Coax Extension M/F   20 ft $ 50.00   24 in stock   Add to Cart
1153-25C   VGA Spliced Coax Extension M/F   25 ft $ 55.00   8 in stock   Add to Cart
1153-30C   VGA Spliced Coax Extension M/F   30 ft $ 59.00   3 in stock   Add to Cart
1153-40C   VGA Spliced Coax Extension M/F   40 ft $ 69.00   6 in stock   Add to Cart
1153-50C   VGA Spliced Coax Extension M/F   50 ft $ 79.00   3 in stock   Add to Cart
1153-00C   VGA Spliced Coax Extension M/F
Custom build at $35.00 + $1.50 per foot.
Some custom products may not be REACH compliant.
  Add to Cart

The DataPro SVGA spliced Extension cable is used to extend the length of a VGA, XGA, or SVGA monitor cable, and is a non-terminated cable for use in wire runs through conduit, walls, boats, etc.

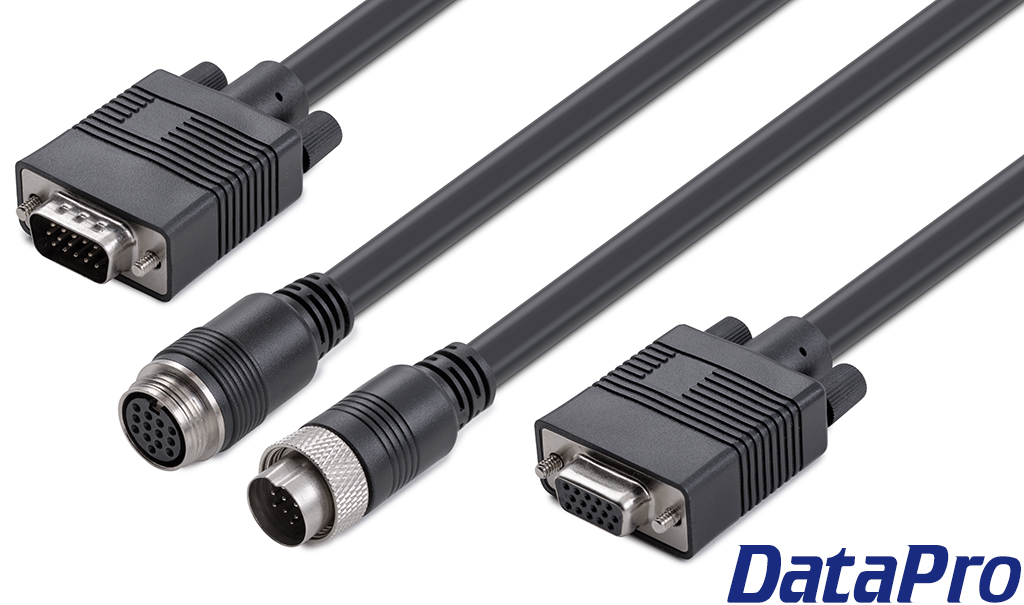

The first piece of the set has a male VGA connector and a locking female circular connector, available in various lengths. The second piece has a male circular and a female VGA connector, and measures approximately 18 inches long. Both parts are included when you order.

By splicing the two VGA connectors with the circular connector, this cable can be run through wiring holes as small as 0.75" (19mm). Once reassembled, the splice connectors screw-lock together for a tight and secure seal.


Splice connector fits through 3/4" conduit!

The cable is made of 75 Ohm video-grade coaxial wire. This low-signal-loss cable allows lengths of up to 200 feet in most cases, with good signal strength.

We also offer spliced, non-terminated VGA cables in the following configurations:

If you don't need the non-terminated splice, see our standard VGA male/female extension cable.

Please note that the splice connector does not conduct the ID and DDC channels (pins 5 and 9) of the VGA signal. Most computer monitors have no issue with this, but some television and projector models cannot detect a signal without these channels.


Drawings & Models:

PartDownloads
1153PDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
REACH Compliant
CL2 In-Wall Rated
IPC Compliant
