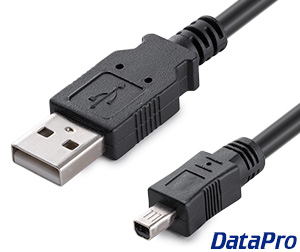

USB 2.0 A to 4-Pin Mini-B

The 1597 series is a USB Type A to Mini-B 4-pin cable, which can be used in certain types of cameras and other USB devices but is not a standard Mini-B cable.

The 4-Pin Mini type-B connector is small, roughly square but with bevelled corners, and can be found on various USB accessories manufactured in the late 1990's and early-to-mid 2000's.

Many digital cameras are compatible with this cable, but not all of them. Please verify compatibility carefully!

Part	Downloads
1597	Drawing (PDF)	Model (STEP)

Features:

• Mini-B 4-pin end used with many digital cameras
• Gold-plated contacts

Specifications:

• USB 1.1/2.0 High-Speed Compatible
• Max speed 480 Mb/s
• RoHS compliant
