USB 2.0 Dual Panel-Mount Cable

> USB 2.0 Cables, USB Panel-Mount Cables, Panel-Mount USB-A Cables

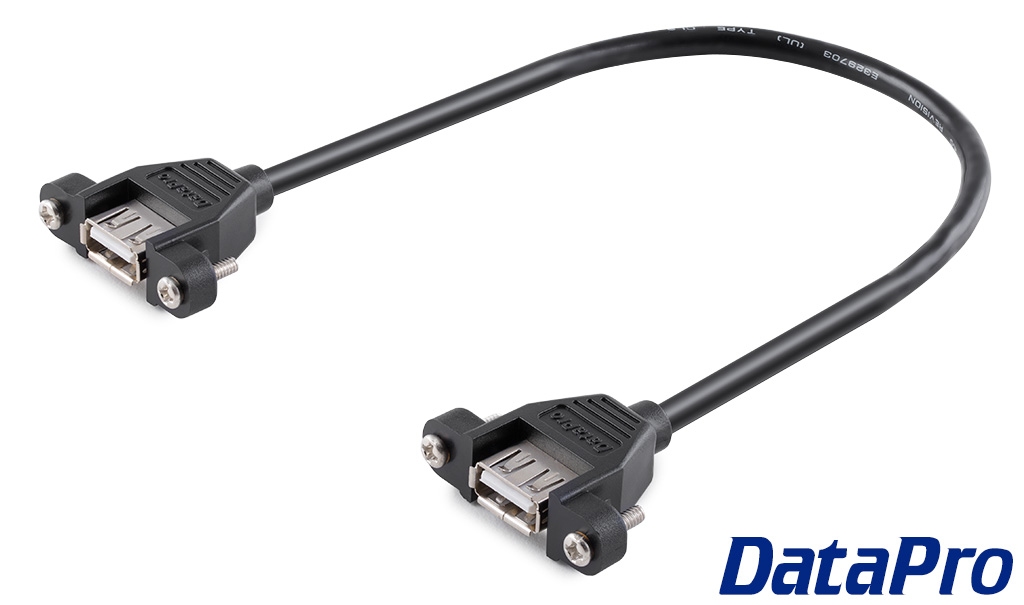

USB 2.0 Dual Panel-Mount Cable
With this double-mounting cable you can jumper two nearby plates for a seamless USB connection through any obstruction! Perfect for passing through walls or cabinets, and extendable when used with our standard USB panel-mount cables!

1588-01C   USB 2.0 Panel-Mount DUAL CL-2   1 ft $ 11.95   531 in stock   Add to Cart
1588-02C   USB 2.0 Panel-Mount DUAL CL-2   2 ft $ 12.95   1000 available Sep 22nd   Backorder
1588-03C   USB 2.0 Panel-Mount DUAL CL-2   3 ft $ 13.95   359 in stock   Add to Cart
1588-04C   USB 2.0 Panel-Mount DUAL CL-2   4 ft $ 15.95   127 in stock   Add to Cart
1588-06C   USB 2.0 Panel-Mount DUAL CL-2   6 ft $ 17.95   161 in stock   Add to Cart
1588-10C   USB 2.0 Panel-Mount DUAL CL-2   10 ft $ 21.95   375 in stock   Add to Cart
1588-15C   USB 2.0 Panel-Mount DUAL CL-2   15 ft $ 29.95   60 in stock   Add to Cart

Technical Documents

Download Drawing

Download 3D Model

Patch two USB wall plates together with our brand-new dual panel-mount USB cable. Featuring a sturdy bulkhead mounting USB connector on each end, this cable allows you to directly mount two USB ports wherever you need them.

This cable is USB 2.0 compatible and uses CL2-rated wire.

No threading is required on the plate, the connector has embedded 4-40 nuts. The required 4-40 mounting screws are included with the cable.

Please note that if you would like to extend your USB connection more than 15 feet from source to device, you'll need to use an active USB booster cable or active USB booster.

For information about selecting, installing, and using wall plates in your applications, see our Guide to Face Plates.

Click here for PDF version


  • Panel-Mountable Female USB Type-A Connectors
  • CL2 rated for in-wall use
  • Includes mounting hardware
  • Gold-plated contacts


  • USB 1.1/2.0 High-Speed Compatible
  • Max speed 480 Mb/s
  • RoHS compliant
  • CL2 rated
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
