USB 3.0 Dual Panel-Mount Extension


Categories:
> USB Panel-Mount Cables, USB 3.0 and 3.1 Products, Panel-Mount USB-A Cables
USB 3.0 Dual Panel-Mount Extension
Add SuperSpeed USB 3.0 to your installation with DataPro's exclusive dual-panelmount USB cable, the easiest way to get wall-mounted access to the fastest USB hardware!

1688-01C   USB 3.0 Panel-Mount DUAL-A CL2   1 ft $ 11.95   644 in stock   Add to Cart
1688-02C   USB 3.0 Panel-Mount DUAL-A CL2   2 ft $ 12.95   79 in stock   Add to Cart
1688-03C   USB 3.0 Panel-Mount DUAL-A CL2   3 ft $ 13.95   307 in stock   Add to Cart
1688-04C   USB 3.0 Panel-Mount DUAL-A CL2   4 ft $ 15.95   142 in stock   Add to Cart
1688-06C   USB 3.0 Panel-Mount DUAL-A CL2   6 ft $ 17.95   179 in stock   Add to Cart
1688-10C   USB 3.0 Panel-Mount DUAL-A CL2   10 ft $ 21.95   110 in stock   Add to Cart
1688-15C   USB 3.0 Panel-Mount DUAL-A CL2   15 ft $ 29.95   70 in stock   Add to Cart

Technical Documents

Download Drawing

Download 3D Model

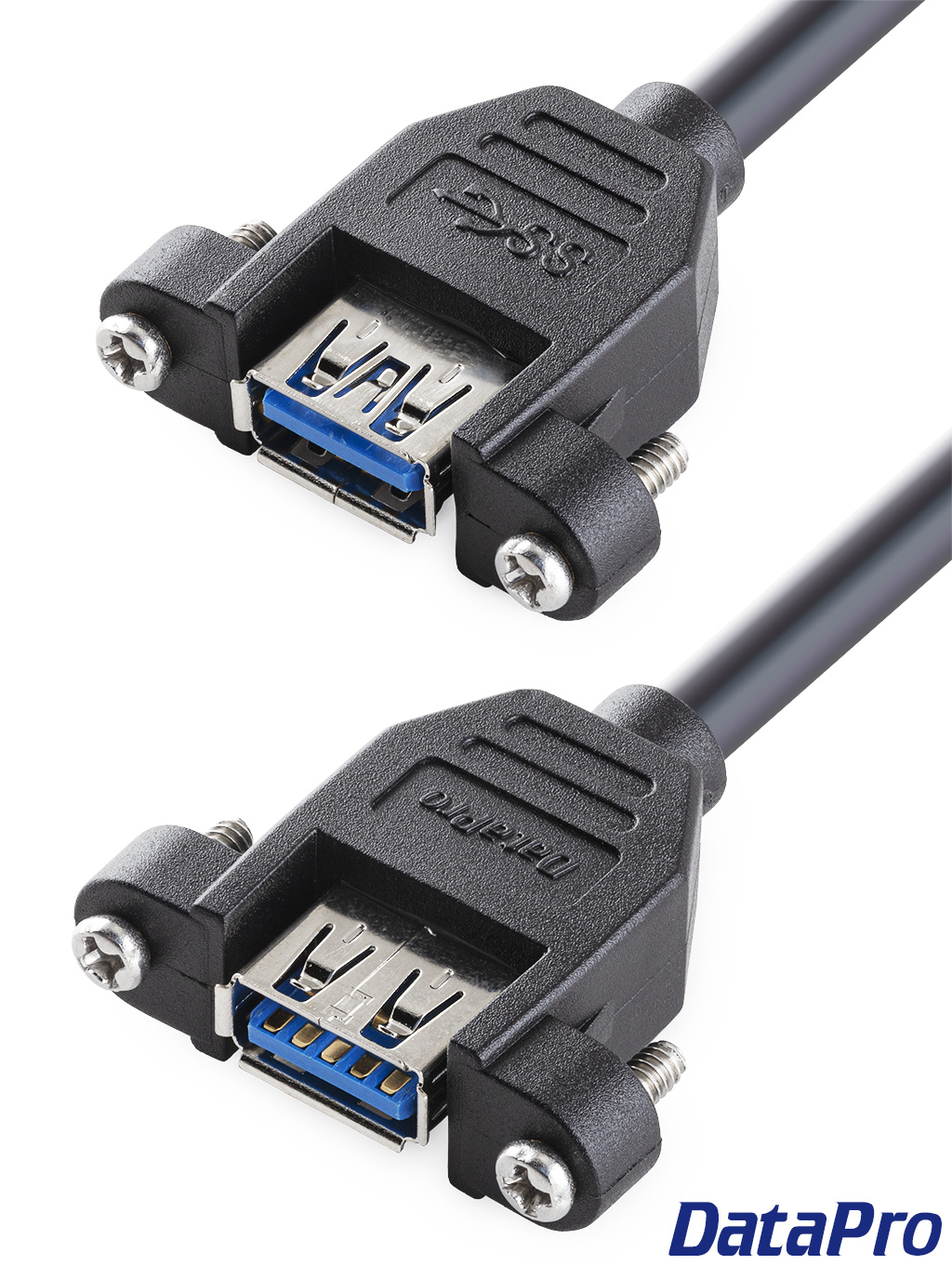

Future-proof your hardware by installing a USB 3.0 SuperSpeed port in-wall or integrating with an enclosure using this convenient dual cable, featuring a bulkhead mountable USB 'A' type jack on each end.

The internal wiring of this cable is crossed over, which ensures the correct connections will be achieved in both computer-to-computer and computer-to-device scenarios. The wire is CL2 rated and speed-tested for full USB 3.0 bandwidth, guaranteeing the fastest transfer times and complete backwards-compatibility with USB 2.0 and 1.1 hardware.

Please note that if you would like to extend your USB connection more than 15 feet from source to device, you'll need to use an active USB booster cable.


Click here for PDF version


Features:

  • Two panel-mountable Female USB Type-A connectors
  • CL2 rated for in-wall use
  • Includes mounting hardware
  • Gold-plated contacts
  • Shielded to minimize Electromagnetic / Radio Frequency Interference (EMI / RFI)


Specifications:

  • 2x Panel-Mountable Female USB Type-A Connectors
  • USB 3.0, supports SuperSpeed USB 5Gb/s
  • Backwards compatible with USB 1.1/2.0
  • Aluminum/Mylar Foil Wrap + Braided Shielding and Drain Wire
  • Wire Gauge 30, 28 & 24 AWG
  • RoHS Compliant
  • CL2 Rated
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
