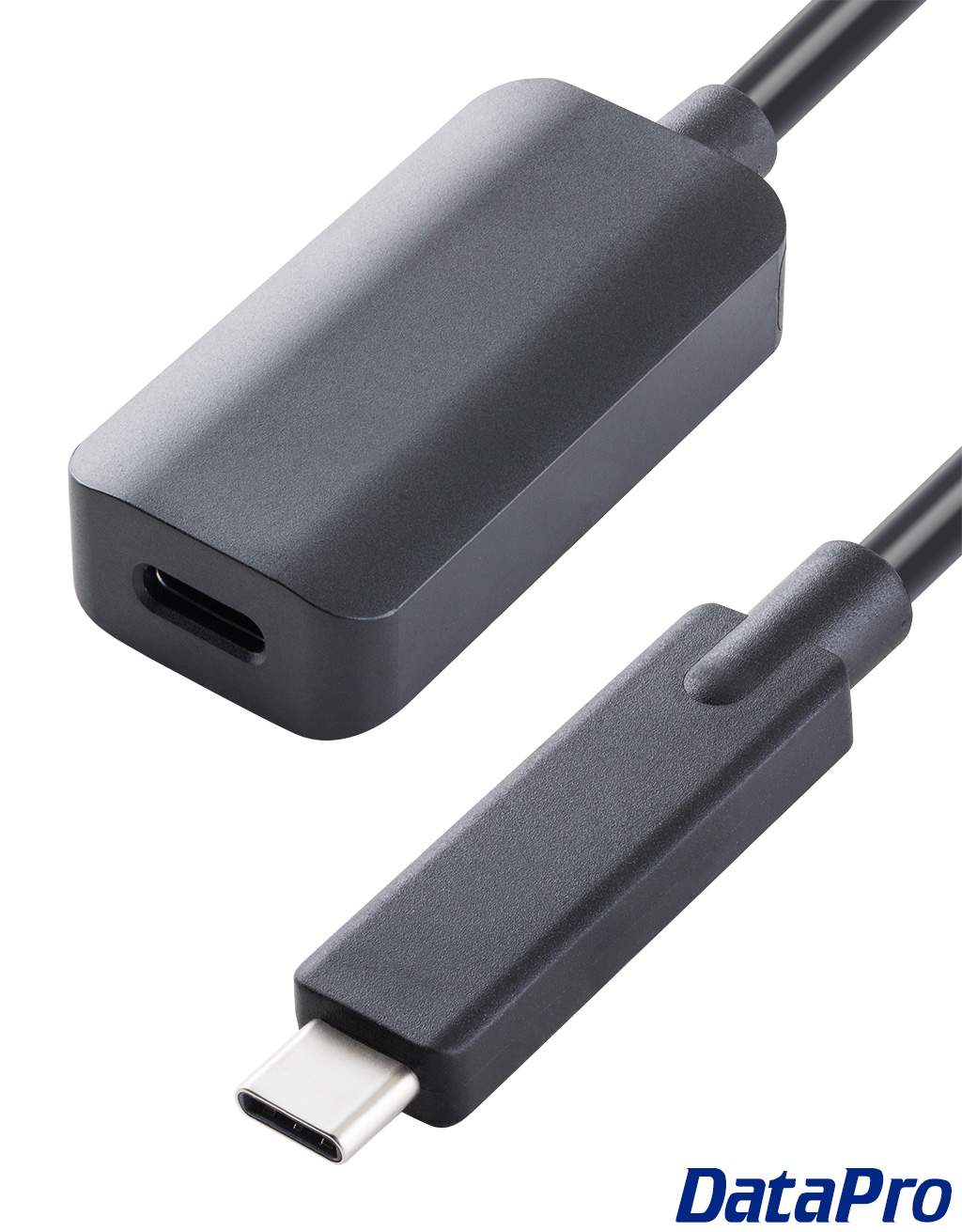

USB-C 3.1 Active Boosted Extension Cable


Categories:
> USB-C Cables, USB 3.0 and 3.1 Products
USB-C 3.1 Active Boosted Extension Cable


This boosted USB-C extension cable allows you to connect devices beyond USB Type-C's typical 3 meter limit.

UBXC-15C   USB C Active Extender Cable   15 ft $ 64.95   93 in stock   Add to Cart
UBXC-PWR-15C   USB C Active Ext. with Power   15 ft $ 79.95   3 in stock   Add to Cart

Technical Documents

Download Drawing

Download 3D Model

This boosted USB-C extension cable allows you to connect devices beyond USB Type-C's typical 3 meter limit.

Operates at USB 3.1 Gen 1 speeds of 5Gbps. Will not extend USB Type-C alt-mode connections such as HDMI and DisplayPort.

Our powered version can supply up to 770mA of power to an attached device. If you need more power, the female end of the device includes a 5.5mm DC barrel connector for use with an external power source (not included).


RoHS Compliant

Related Products:

Features:

  • Female USB Type-C connector
  • Male USB Type-C connector
  • Self-powered up to 0.77A
  • CE, FCC, RoHS, REACH, and VW-1
  • No drivers required


Specifications:

  • USB 3.0/3.1 Gen 1 (up to 5 Gbps)
  • Operating Temperature Range: 32-104F (0 to 40C)
  • Power Provided to Connected Devices: Up to 0.77A
  • 16.4ft Overall Length
  • External power supply requirements: 5V, OD: 3.5x1.35x7.5mm, Positive Pin, Negative Sleeve Barrel Connector
