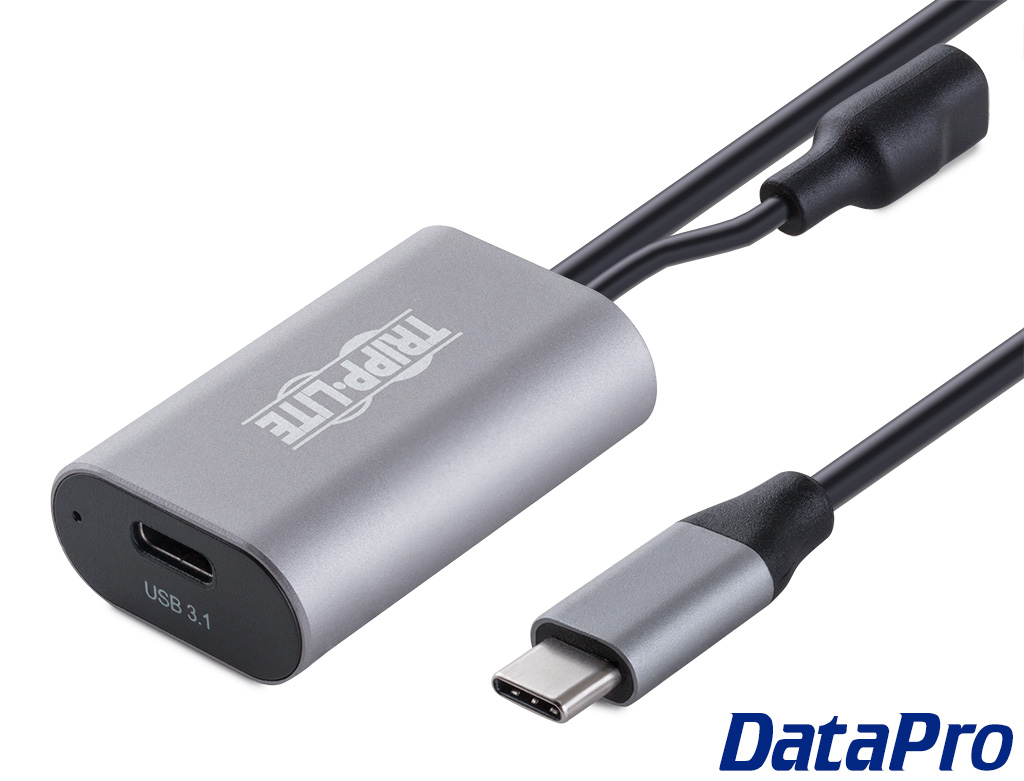

USB-C 3.1 Externally Powered Active Boosted Extension Cable


Categories:
> USB-C Cables, USB 3.0 and 3.1 Products
USB-C 3.1 Externally Powered Active Boosted Extension Cable
This boosted USB-C extension cable allows you to extend a USB-C connection beyond its standard length, and can provide additional power for high-draw devices.

UBXC-PWR-15C   USB C Active Ext. with Power   15 ft $ 79.95   6 in stock   Add to Cart

This boosted USB-C extension cable allows you to extend a USB-C connection up to 16.4ft (5m), or 32.8ft (10m) by daisy-chaining two together. Provides up to 5V 770mA of power, or up to 5V 3A with optional AC adapter.

Operates at USB 3.1 Gen 1 speeds of 5Gbps. Will not extend USB Type-C alt-mode connections such as HDMI and DisplayPort.


Drawings & Models:

PartDownloads
UBXCPWRPDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
REACH Compliant

Related Products:

Features:

  • Female USB Type-C connector
  • Male USB Type-C connector
  • Self-powered up to 0.77A
  • Optional 5V AC adapter input
  • CE, FCC, RoHS, REACH, and VW-1
  • No drivers required


Specifications:

  • USB 3.0/3.1 Gen 1 (up to 5 Gbps)
  • Operating Temperature Range: 32-104°F (0 to 40°C)
  • Power Provided to Connected Devices: Up to 0.77A
  • 16.4ft (5.0m) Overall Length
  • External power supply requirements: 5V, OD: 3.5x1.35x7.5mm, Positive Pin, Negative Sleeve Barrel Connector
