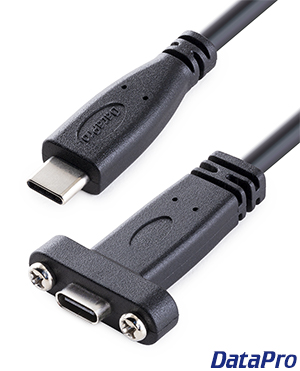

USB-C Panel Mount Extension Cable


Categories:
> Panel-Mount USB-C Cables, USB 3.0 and 3.1 Products, USB-C Cables 		USB-C Panel Mount Extension Cable
Extend a USB Type-C connector to a bulkhead or panel with this USB-C panel-mount extension. Compatible with USB 3 and USB4.

1678-0006C   Panel-Mount USB Type-C Ext   6IN $ 19.45   889 in stock   Add to Cart
1678-01C   Panel-Mount USB Type-C Ext   1 ft $ 19.95   578 in stock   Add to Cart
1678-02C   Panel-Mount USB Type-C Ext   2 ft $ 21.95   156 in stock   Add to Cart
1678-03C   Panel-Mount USB Type-C Ext   3 ft $ 23.95   878 in stock   Add to Cart

USB Type-C is designed as a universal connector format for not just the new generation of USB devices, but to act as a conduit for HDMI, DisplayPort, and more. Our exclusive USB Type-C extension cable allows you to add a USB-C female jack to any plate, panel, or bulkhead.

Note: Like all USB-C cables, this product will work in some Thunderbolt 3 setups, but with reduced performance compared to a dedicated Thunderbolt cable.




USB-C Cutout Dimensions
PDFClick here for PDF version


Drawings & Models:

PartDownloads
1678PDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
REACH Compliant
Related Products:

Features:

  • Panel-mountable Female USB Type-C connector
  • Reversible Male USB Type-C connector
  • VW-1 rated for fire resistance
  • Includes mounting hardware
  • Gold-plated contacts
  • Shielded to minimize Electromagnetic / Radio Frequency Interference (EMI / RFI)
  • Supports DisplayPort, HDMI, MHL, and Analog audio Alt Modes
  • USB 4 Compatible at limited speeds

Specifications:

  • 1x Panel-Mountable Female USB Type-C Connector
  • 1x Male USB Type-C Connector
  • USB 3.1, supports SuperSpeed USB 10Gb/s
  • Backwards compatible with USB 1.1/2.0
  • USB Power Distribution compatible up to 100W (20V 5A)
  • Aluminum/Mylar Foil Wrap + Braided Shielding
  • Wire Gauge 30 & 28 AWG
  • RoHS Compliant
  • VW-1 Rated Wire
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: Hand tighten, 2.0 in-lbs maximum torque
  • USB4 Compatible at limited speeds
