USB Panel Mount B to A Cable


Categories:
> USB 2.0 Cables, USB Panel-Mount Cables, Panel-Mount USB-B Cables
USB Panel Mount B to A Cable
By popular demand, a panelmounting B-type USB cable that terminates in a male A-type USB. Compatible with our complete line of faceplates and custom wall plates, this addition to our USB panelmount line makes the connections that you need in the lengths you need them.

1589-01C   USB Panel-Mount B to A (M) CL2   1 ft $ 11.95   217 in stock   Add to Cart
1589-02C   USB Panel-Mount B to A (M) CL2   2 ft $ 13.95   570 in stock   Add to Cart
1589-03C   USB Panel-Mount B to A (M) CL2   3 ft $ 15.95   530 in stock   Add to Cart
1589-00C   USB Panel Mount B to A Cable
Custom build at $14.95 + $1.00 per foot.
  Add to Cart

Technical Documents

Download Drawing

Download 3D Model

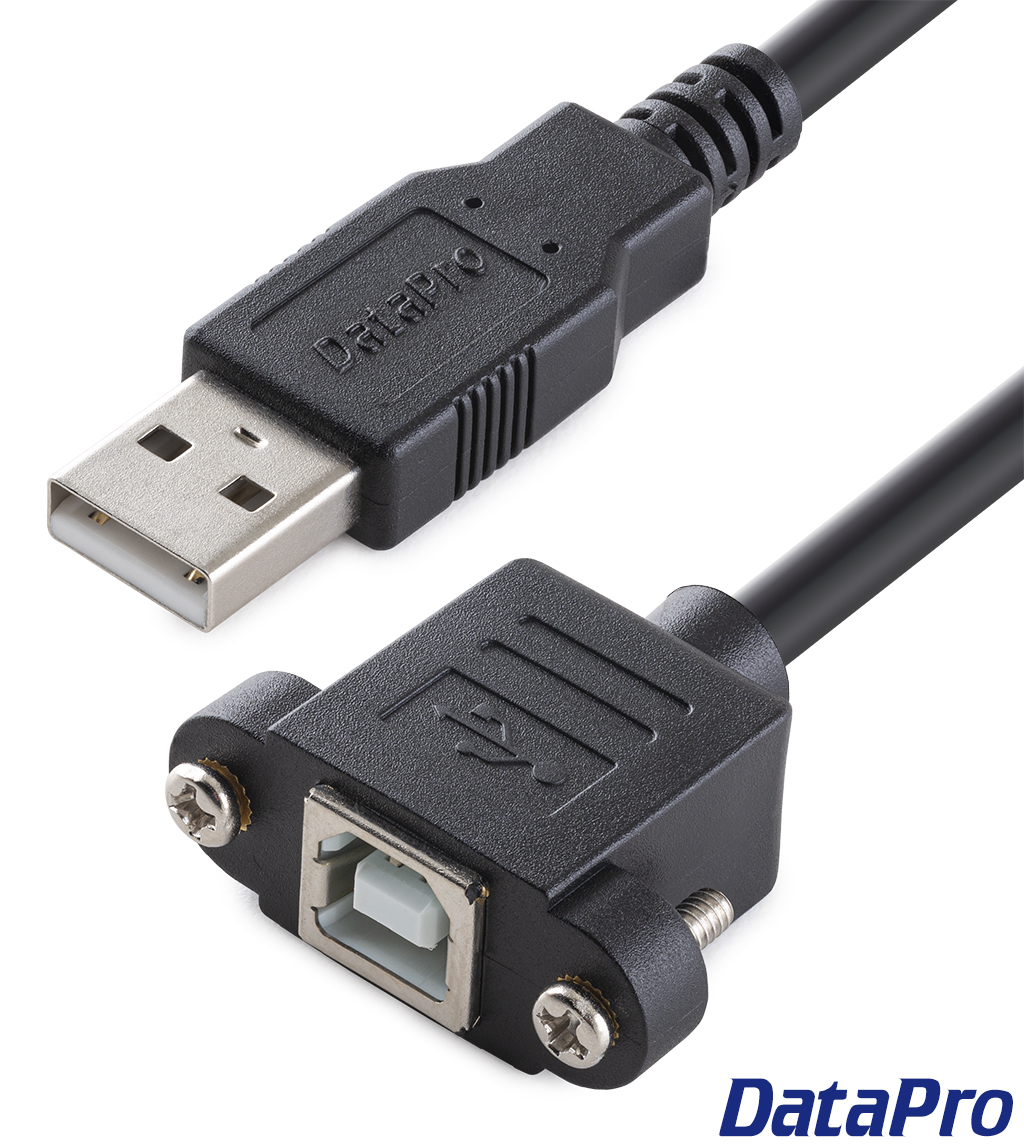

The DataPro USB Panelmount B to A cable is a high-speed USB 2.0 cable designed to allow remote access to USB devices with a standard USB-B type connection. Unlike our standard USB panelmount extensions, the panelmount B to A cable converts connection types inline, for applications that would require it.

This bulkhead mounting cable will attach to any of our face plates that feature a USB-B type cutout, and the male end will connect to any USB host or device that sports the ubiquitous USB-A port.

Please note that if you would like to extend your USB connection more than 15 feet from source to device, you'll need to use an active USB booster cable or active USB booster.


Click here for PDF version


Features:

  • Panel-Mountable Female USB Type-B Connector
  • Custom length available up to 15ft
  • CL2 rated for in-wall use
  • Includes mounting hardware
  • Gold-plated contacts


Specifications:

  • USB 1.1/2.0 High-Speed Compatible
  • Max speed 480 Mb/s
  • RoHS compliant
  • CL2 rated
  • Embedded 4-40 nuts with mounting screws included

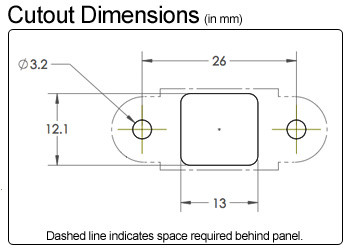

  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
