USB Panel Mount B to Socket

> USB 2.0 Cables, USB Panel-Mount Cables, Panel-Mount USB-B Cables
USB Panel Mount B to Socket

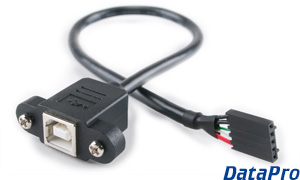

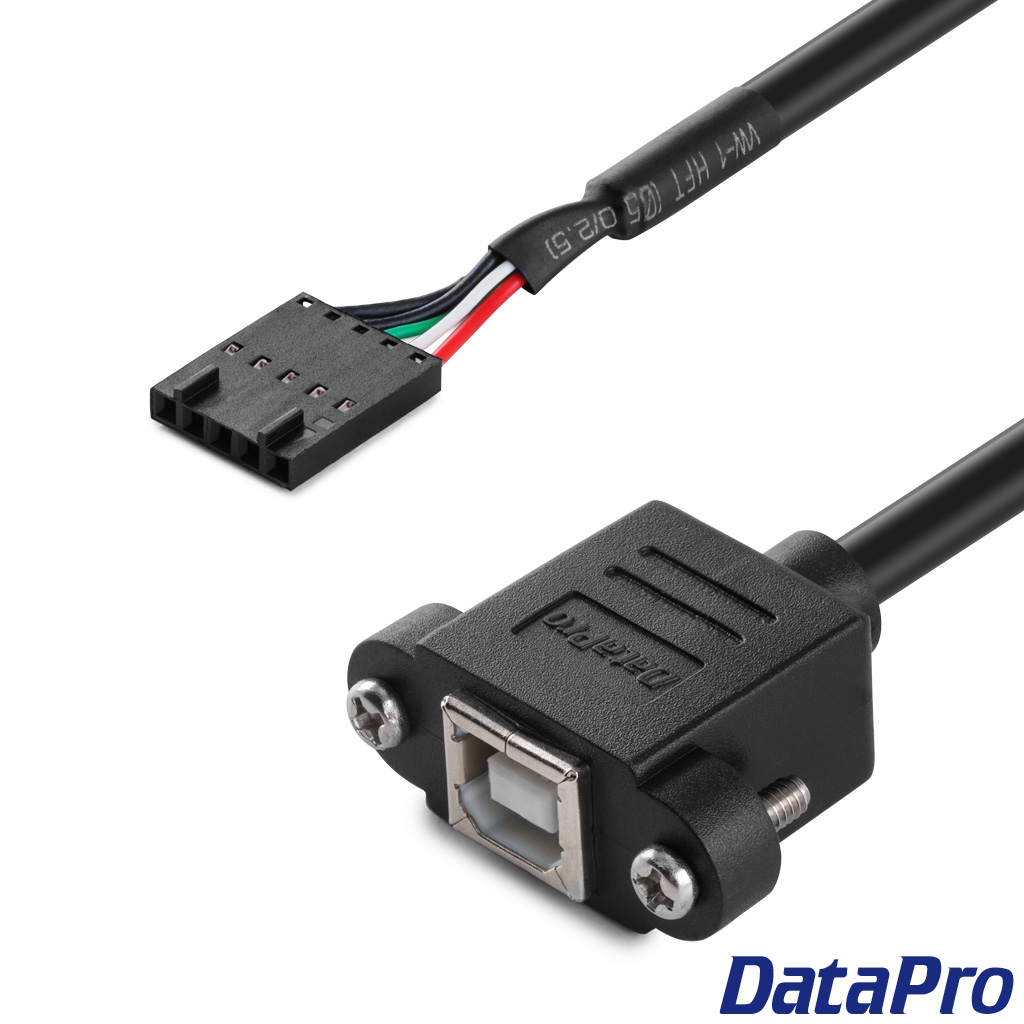

Add USB compatibility to an OEM product with this panel-mounting USB cable. Featuring a 5-pin connector for PCB mating and a bulkhead-mounting USB-B connector, this cable will turn a proprietary product into a universal peripheral.

1580-01C   USB Panel-Mount B to Socket   1 ft $ 9.95   473 in stock   Add to Cart
1580-02C   USB Panel-Mount B to Socket   2 ft $ 10.95   1477 in stock   Add to Cart
1580-03C   USB Panel-Mount B to Socket   3 ft $ 11.95   616 in stock   Add to Cart
1580-00C   USB Panel-Mount B to Socket
Custom build at $14.95 + $1.00 per foot.
Some custom products may not be REACH compliant.
  Add to Cart

Technical Documents

Download Drawing

Download 3D Model

LMR-400 Available! Available with an unpolarized connector!
This cable can be built with an unpolarized 2.54mm header connector. Contact us for details.

The mate to our popular 1590-series, this panelmount cable will mount a USB B-type port to a faceplate or wall plate, and terminate directly into a motherboard or PCB socket.

The socket connector is a standard 2.54mm pitch and 5-pin connections, including signal ground and backshell ground.

For information about selecting, installing, and using wall plates in your applications, see our Guide to Wall Plates.

To design your own plastic or metal plate for this type of cable, check out our custom wall plate designer. It's easy!

Click here for PDF version


  • Panel-Mountable Female USB Type-B Connector
  • Custom length available up to 15ft
  • CL2 rated for in-wall use
  • Includes mounting hardware
  • Gold-plated contacts


  • USB 1.1/2.0 High-Speed Compatible
  • Max speed 480 Mb/s
  • RoHS compliant
  • CL2 rated
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque

RoHS Compliant
REACH Compliant
CL2 In-Wall Rated
