VGA Dual Panel-Mount F/F Cable


Categories:
> VGA Cables, VGA Panel-Mount Cables

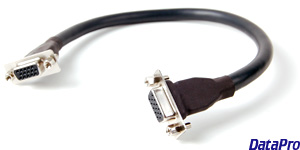

VGA Dual Panel-Mount F/F Cable
Jump between two panels easily with our dual panel-mount VGA cable. By using this triple-shielded coaxial wire for your in-wall video run instead of couplers, the number of connections is reduced and the video signal is less susceptible to noise and interference. It's a better picture, with fewer parts and easy installation!

1156-01C   VGA Dual Panel-Mount F/F Cable   1 ft $ 25.00   124 in stock   Add to Cart
1156-02C   VGA Dual Panel-Mount F/F Cable   2 ft $ 26.00   158 in stock   Add to Cart
1156-03C   VGA Dual Panel-Mount F/F Cable   3 ft $ 27.00   60 in stock   Add to Cart
1156-04C   VGA Dual Panel-Mount F/F Cable   4 ft $ 28.00   110 in stock   Add to Cart
1156-06C   VGA Dual Panel-Mount F/F Cable   6 ft $ 29.95   125 in stock   Add to Cart
1156-10C   VGA Dual Panel-Mount F/F Cable   10 ft $ 35.00   627 in stock   Add to Cart
1156-15C   VGA Dual Panel-Mount F/F Cable   15 ft $ 39.00   118 in stock   Add to Cart
1156-25C   VGA Dual Panel-Mount F/F Cable   25 ft $ 49.00   43 in stock   Add to Cart
1156-30C   VGA Dual Panel-Mount F/F Cable   30 ft $ 59.00   13 in stock   Add to Cart
1156-40C   VGA Dual Panel-Mount F/F Cable   40 ft $ 69.00   14 in stock   Add to Cart
1156-50C   VGA Dual Panel-Mount F/F Cable   50 ft $ 79.00   12 in stock   Add to Cart
1156-00C   VGA Dual Panel-Mount F/F Cable
Custom build at $30.00 + $1.50 per foot.
Some custom products may not be REACH compliant.
  Add to Cart

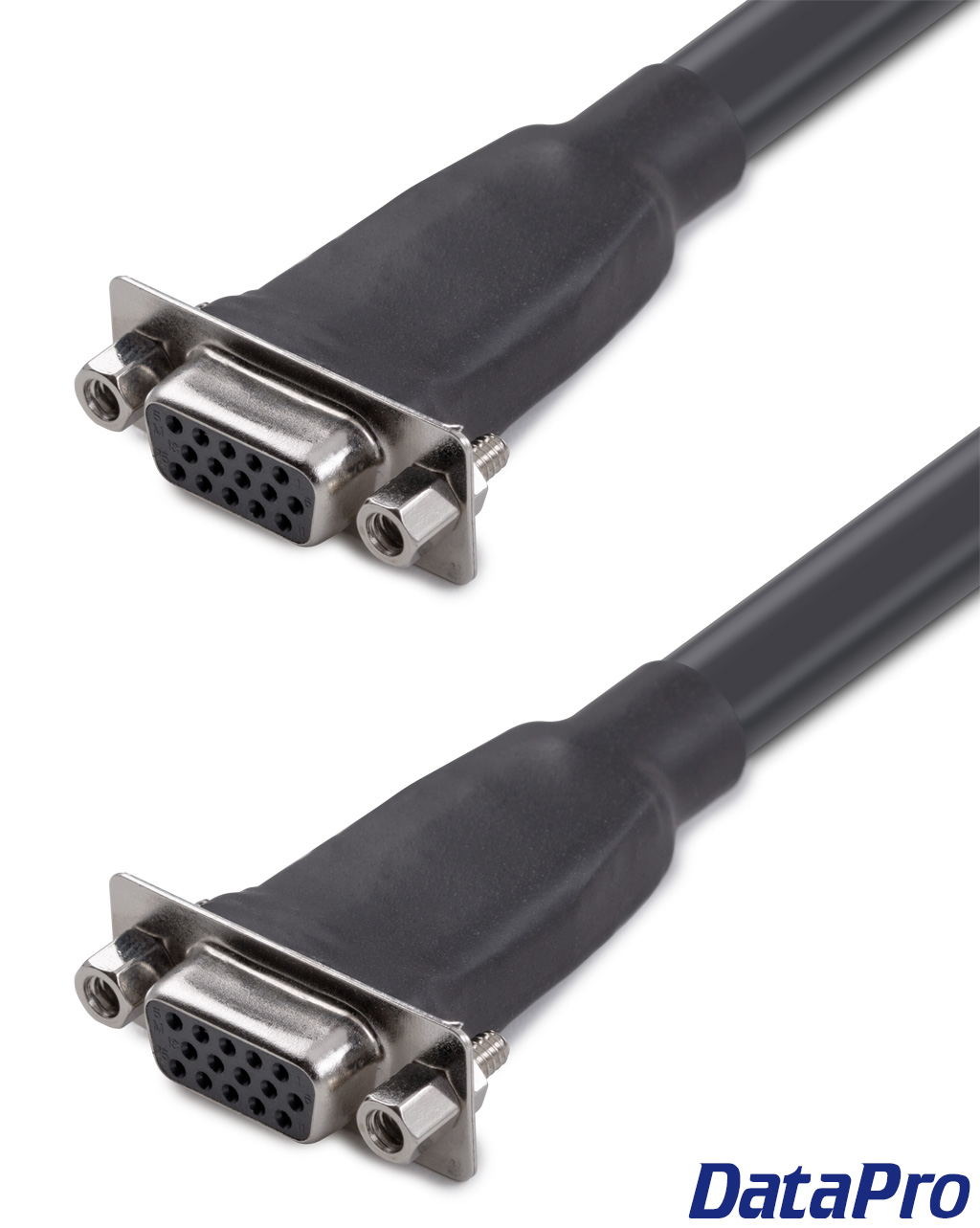

The DataPro VGA Dual Panel-Mount female/female cable is designed to run a computer video channel between two VGA face plates, providing a female port on each end.

This is the same cable as our panel-mount VGA extension cable except that both ends of the assembly are terminated with female panel-mount style connectors, including the long jack-screws needed for mounting to a wall plate or bulkhead.

The female ends are non-hooded panel-mount DH15 VGA connectors, whose reduced profile allows them to mount in more confined locations than a standard molded backshell.

The cable is made of 75 Ohm video-grade coaxial wire, with triple-shielded mini-coax wires to carry the Red/Green/Blue signals. This low-loss cable allows lengths of up to 200 feet in most cases, with good signal strength and minimal ghosting.

For information about selecting, installing, and using wall plates in your applications, see our Guide to Face Plates and Panel-Mount Cables.


Drawings & Models:

PartDownloads
1156PDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
REACH Compliant
CL2 In-Wall Rated
IPC Compliant

Related Products:

Features:

  • Two panel mountable female VGA Connectors
  • Includes mounting hardware
  • CL2 rated for in-wall use
  • Gold-plated contacts
  • Low-loss cable allows lengths of up to 200 feet in most cases, with good strength and fidelity.


    Specifications:

    • 2x Panel Mountable Female DH15 VGA Connectors
    • Wire Gauge 28 & 24 AWG
    • RoHS Compliant
    • CL2 Rated
    • Made of 75 Ohm video-grade coaxial wire
    • Triple-shielded mini-coax wire
    • Aluminum/Mylar Foil Wrap + Braided Shielding and Drain Wire
    • Includes removable male-female threaded hex standoffs for mounting
    • Allowable panel depth:
      • 1.5mm (full mating)
      • 2.0mm (max recommended)
