Antenna Cable TNC to N-Type


Categories:
> Wireless Antenna Cables
Antenna Cable TNC to N-Type


1832-03C   Antenna Cable TNC to N-Type   3 ft $ 19.95   1 in stock   Add to Cart
1832-06C   Antenna Cable TNC to N-Type   6 ft $ 23.95   2 in stock   Add to Cart
1832-10C   Antenna Cable TNC to N-Type   10 ft $ 29.95   6 in stock   Add to Cart
1832-15C   Antenna Cable TNC to N-Type   15 ft $ 35.00   6 in stock   Add to Cart
1832-25C   Antenna Cable TNC to N-Type   25 ft $ 45.00   4 in stock   Add to Cart
1832-00C   Antenna Cable TNC to N-Type
Custom build at $25.00 + $1.00 per foot.
  Add to Cart

Technical Documents
I agree to the Terms of Service.

Download Drawing

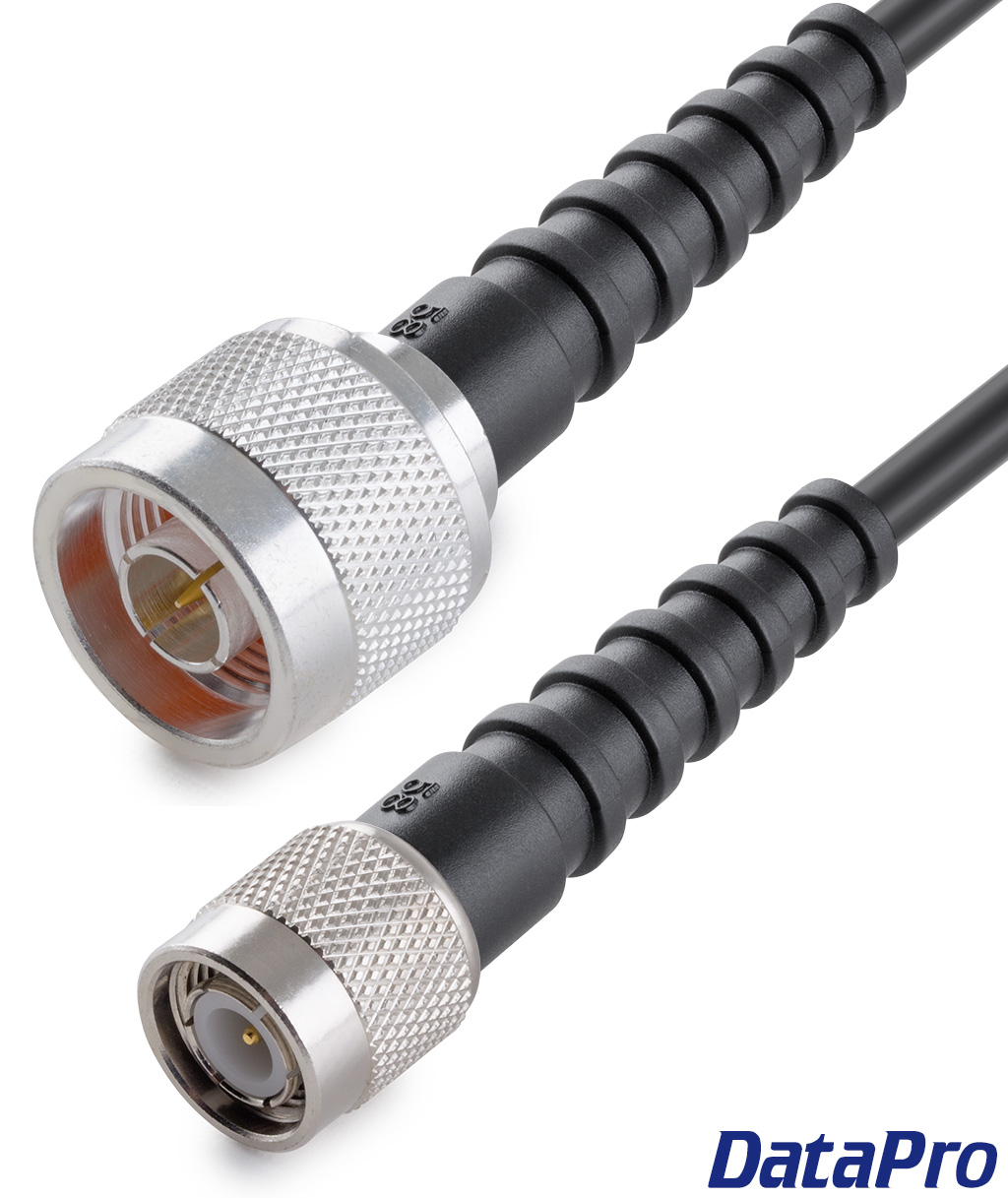

The 1832-series is a coaxial cable for wireless antenna connections, featuring one TNC male connector and N-Type male. This assembly is perfect for repositioning a wireless antenna or base station, particularly when adding a new antenna that uses a different connector type than the base.

The TNC connector is a screw-locking connector that is very similar in size and appearance to the BNC connector, except that TNC uses a fine threading to lock the connectors tight while BNC uses a twist-lock latching mechanism.

The N-Type connector is a large and distinct connector, with a bulky screw-locking collar and a large pin. It is commonly found on industrial-grade equipment.

This cable is made from 50-Ohm impedance RG58 wire, the ideal classification for wireless antenna broadcasting and receiving.

We can build this cable in any length you request.

For more information on this and other wireless antenna connector types, please consult our RF Wireless Connector Guide.
