Part Number: CUSTOM_P
Face Plates
Custom Wall Plates
View All Photos
Get the ports you want, where you want! Our precision-cut wall plates offer flexibility and convenience that looks good, too. Choose from a variety of sizes and materials, and let our experienced machinists cut the perfect plate for your specific situation.

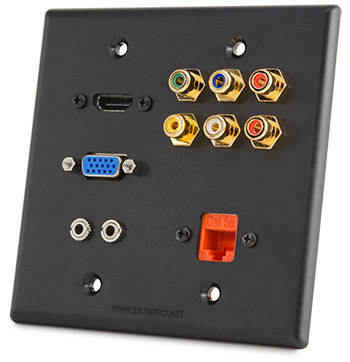

CUSTOM-PLATE  Custom Faceplate / Wall Plate
Contact us for custom pricing.
  Add to Cart

Design your own custom plate now!
Try our easy-to-use Custom Plate Designer utility.

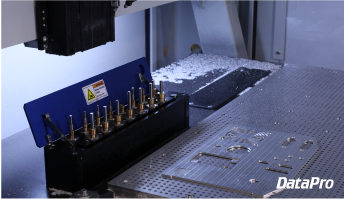

Custom cut wall plates are the perfect solution to effective cable management and accessibility. Optimally designed to match your needs and machine milled for accurate and consistent cuts, our plates make remote access as easy as it can be. And best of all, our custom wall plates ship out in days, not weeks.

Our many stock and custom plates are particularly popular in classrooms, where students and instructors can make use of mounted projectors, speakers, and televisions for presentations and videos. They are similarly used in conference rooms, computer labs, and home theater installations, while marine outfitters find them ideal for wiring ship instrument panels and displays.

More information about using wall plates is available in our Complete Guide to Wall Plates, including a complete list of wall plate connectors available for custom plates and pricing for custom plates.

Face Plates

As with all our plates, custom assemblies do not include any pass-through connectors. They are sold as bare plates only, designed for use with panel-mount cables to minimize noise and signal degradation.


HOW MUCH DO CUSTOM PLATES COST?

While particularly complicated or unique plates can only be quoted on a case-by-case basis, standard cutouts can be custom-configured with a fairly regular pricing schedule. The following reflects the base cost of the plate material, plus $1.00 for every cutout:

PlasticAluminum
1 Gang$14.00$16.00
2 Gang$18.00$20.00
3 Gang$22.00$26.00
4 GangN/A$30.00
HorizontalN/A$20.00
Decora$14.00N/A

For example, a 1-Gang plastic plate with a VGA and two DVI cutouts would cost $17.00 ($14.00 + $1.00 x3), and a horizontal plate with two HDMI cutouts would cost $22.00 ($20.00 + $1.00 x2).

Design your own custom plate now!


Specifications:

  • 1G Dimensions: 2.75" x 4.50" x 0.23" (70mm x 114mm x 6mm)
  • 2G Dimensions: 4.50" x 4.50" x 0.23" (114mm x 114mm x 6mm)
  • 3G Dimensions: 6.50" x 4.50" x 0.23" (165mm x 114mm x 6mm)
  • 4G Dimensions: 8.25" x 4.50" x 0.23" (210mm x 114mm x 6mm)
