Dual Panel-Mount 3.5mm Stereo Cable F/F


Categories:
> Audio Cables, Audio/Video Panel-Mount Cables
Dual Panel-Mount 3.5mm Stereo Cable F/F

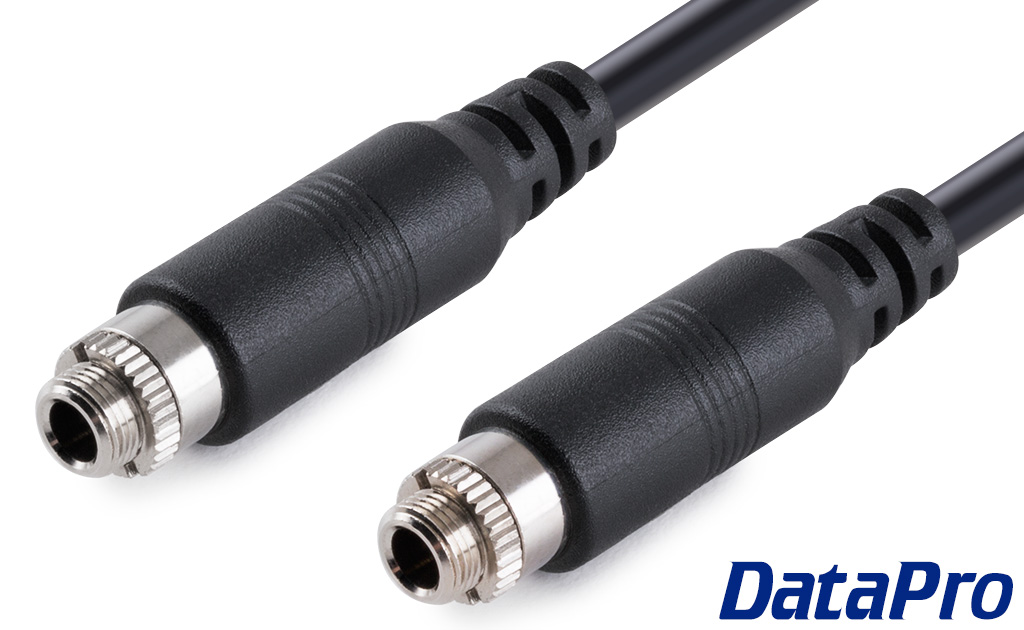

The DataPro 1223-series is a 3.5mm stereo audio cable that features a panel-mount female connector both ends.

1223-01C   Dual Panel-Mount Stereo F/F   1 ft $ 10.95   315 in stock   Add to Cart
1223-02C   Dual Panel-Mount Stereo F/F   2 ft $ 11.95   413 in stock   Add to Cart
1223-03C   Dual Panel-Mount Stereo F/F   3 ft $ 12.95   114 in stock   Add to Cart
1223-04C   Dual Panel-Mount Stereo F/F   4 ft $ 13.95   57 in stock   Add to Cart
1223-06C   Dual Panel-Mount Stereo F/F   6 ft $ 15.95   166 in stock   Add to Cart
1223-10C   Dual Panel-Mount Stereo F/F   10 ft $ 19.95   70 in stock   Add to Cart
1223-15C   Dual Panel-Mount Stereo F/F   15 ft $ 29.95   56 in stock   Add to Cart
1223-20C   Dual Panel-Mount Stereo F/F   20 ft $ 35.00   119 in stock   Add to Cart
1223-25C   Dual Panel-Mount Stereo F/F   25 ft $ 39.00   22 in stock   Add to Cart
1223-50C   Dual Panel-Mount Stereo F/F   50 ft $ 59.00   33 in stock   Add to Cart
1223-00C   Dual Panel-Mount Stereo F/F
Custom build at $30.00 + $0.60 per foot.
Some custom products may not be REACH compliant.
  Add to Cart

Technical Documents

Download Drawing

Download 3D Model

The DataPro 1223-series is a 3.5mm stereo audio cable that features a panel-mount female connector both ends. These connectors have a removable mating ring to fasten them to any material up to 2.5mm (0.10") thick.

This cable is designed to patch two faceplates together, and can also be used in OEM constructions, bulkheads, and other types of installations. It is available in both stock and custom-built varieties, with custom assemblies shipping out in just 1-2 days.

This cable is used to provide a bulkhead or face-plate mountable extension cable for use with stereo audio, or other applications. All that's required on the mounting surface is a hole 1/4" in diameter.

The 3.5 mm connector is commonly referred to as a headphone connector, and is commonly found on computers and computer speakers, as well as CD players, MP3 players, and most headphones and headsets.


Click here for PDF version


Features:

  • Includes mounting hardware


Specifications:

  • Allowable panel depth: 2.5mm (full mating)
  • 2x Panel-Mount Female 3.5mm connector
  • 24 AWG Wire


RoHS Compliant
REACH Compliant
IPC Compliant
