IBM-PC Keyboard Extension

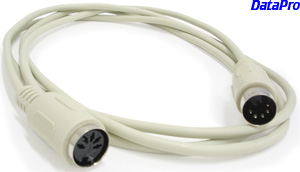

The DataPro 1129 series Keyboard Extension cable for the IBM-PC is a high-quality imported molded cable.

The connections are: 5 pin din, male to female.

The wire map is straight-thru, pin-to-pin.

For connecting a keyboard port to a data switch, see our 1134 series cables. This is the same cable, but in a Male/Male config.

For the PS2/Compaq type keyboard connection using the 6 pin mini-din, see our 1139 and 1159 series cables.

We also build this cable in any length you require. With modern computer equipment, there should be no signal loss out to 20 Feet or so, and we have built this cable to as long as 50 feet with no signal loss. However, this does vary widely depending on the quality of your equipment.

The connectors are: CD05M and CD05F. Connector Diagrams: CD05M and CD05F.
