Coupler Panel-Mount BNC

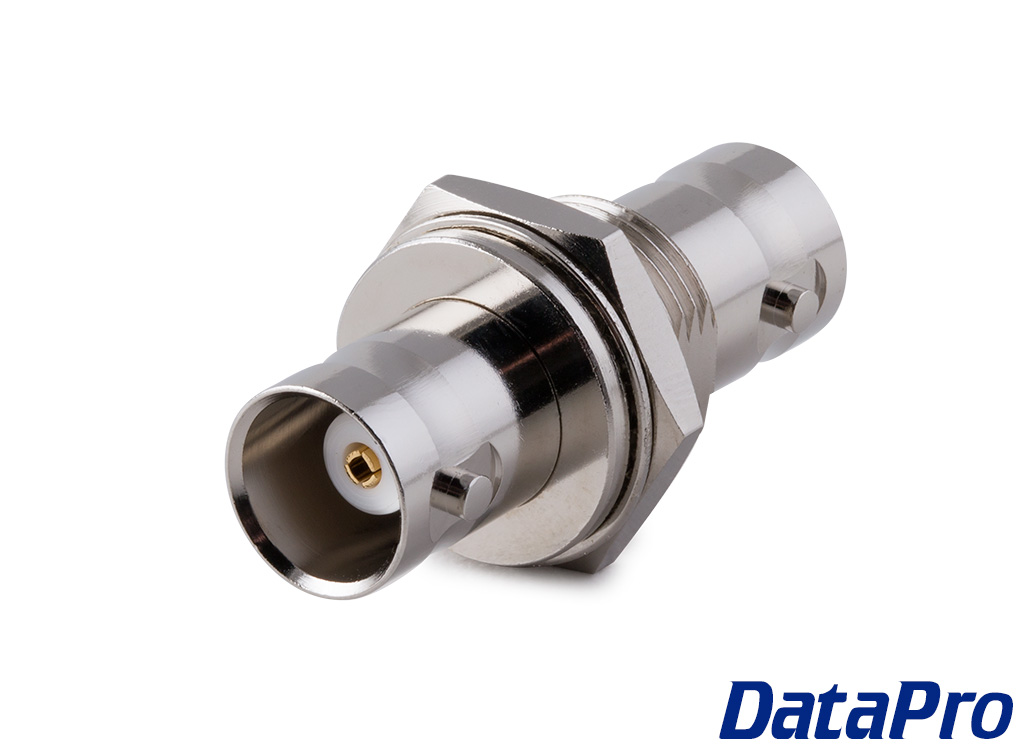

This is a BNC F/F Panel-Mount coupler, designed to mate two male BNC connectors. In particular, this coupler has threading and a mounting nut for securing into a bulkhead, wall plate, or any other panel where a BNC port is desired.

CCP-BNC   Coupler Panel-Mount BNC   EACH $ 6.95   628 in stock   Add to Cart

Technical Documents

Download Drawing

Download 3D Model

This is a BNC F/F Panel-Mount passthrough coupler, designed to mate two male BNC connectors. In particular, this coupler has threading and a mounting nut for securing into a bulkhead, wall plate, or any other panel where a BNC port is desired.

On the interior of the mounting surface, a BNC cable can be run to whatever equipment is remote to the coupler. On the exterior, the BNC female port allows the easy attachment and removal of a BNC cable as desired.

BNC is commonly used for video, especially security camera feeds. When in sets of three, it may represent component video (Y/Pb/Pr) that uses the locking BNC connectors instead of the free-hanging RCA. When in sets of five, it may represent an RGB signal that uses Red/Green/Blue/Vertical/Horizontal, like a VGA signal.


Click here for PDF version


RoHS Compliant
REACH Compliant

Related Products:

Features:

  • Includes mounting hardware
  • Nickel-plated Brass Construction
  • Gold Plated Contacts


Specifications:

  • 50 Ohm Impedance
  • 0-4GHz Frequency Range
  • 500V Peak Voltage Rating
  • 1500V RMS Dielectric Withstanding Voltage
  • REACH-209 Compliant
