The DataPro 1776 series cable is a Category-6 rated 550 MHz network crossover cable, compatible with speeds on 10-Base-T and 10/100/1000 and 10-Gigabit networks.

The wiring between the two connectors has crossed data channels, allowing two computers to directly interface each other without an intermediary hub or switch.

Both connectors are RJ45 male (plug) and wired EIA/TIA 568-B crossover (direct-connect) unless otherwise specified by customer.

We also have standard straight-through Ethernet cables available.

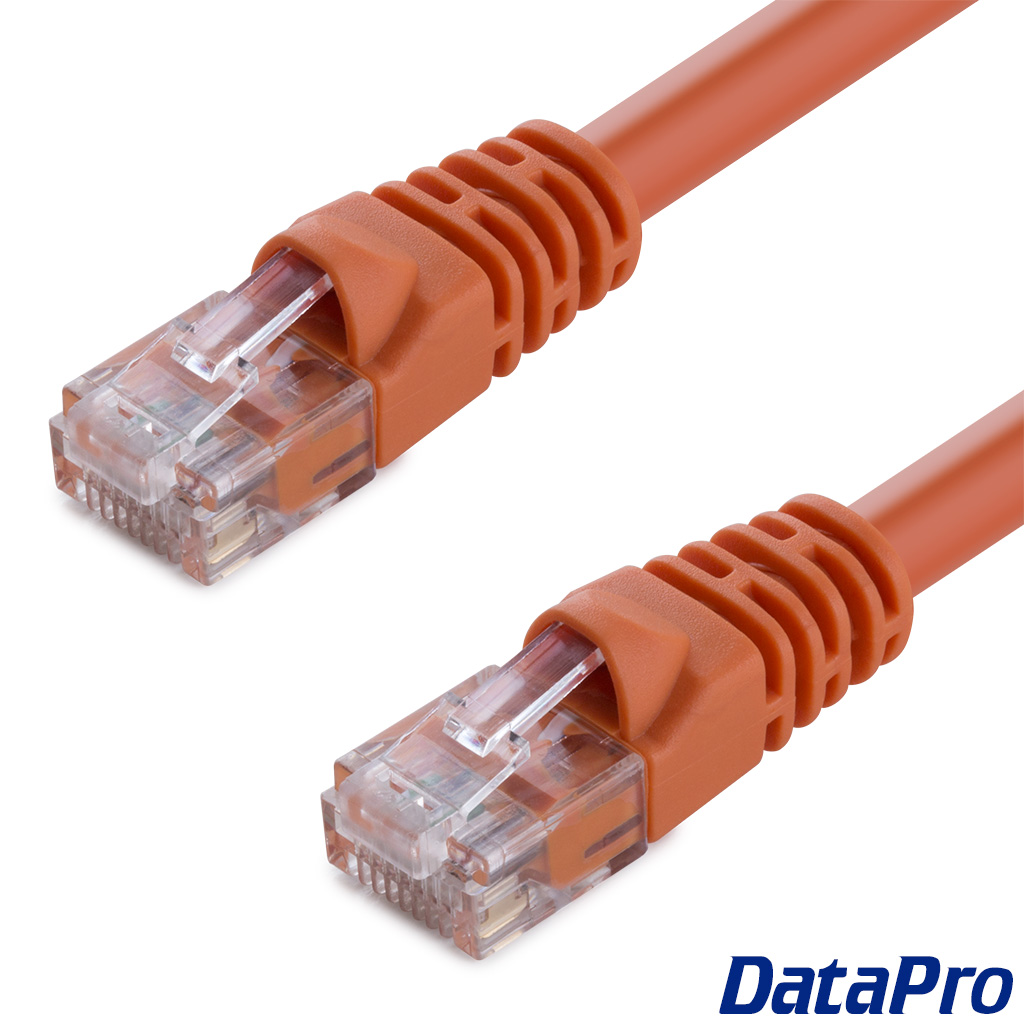

Our stock crossover cables are ORANGE in color to distinguish them from regular straight-through Ethernet cables (usually blue, white, or gray), but we can build this using Red, Orange, Yellow, Green, Blue, Purple, Black, Grey, and White.

We also build this cable up to 100 feet.

Features:

• Allow two computers to directly interface at without an intermediary hub or switch

Specifications:

• 2x RJ45 Male plug connectors, wired IA/TIA 568-A on one and end 568-B on the other
• 550MHz Category-6 rated Ethernet
• Compatible with 10-Base-T, 100-Base-T, 1000-Base-T Gigabit, and 10-Gigabit networks
• Backwards-compatible with Cat-5 and Cat-5e
• Wire Gauge 24 AWG
• Plastic overmold with strain relief
