IBM-PC VGA DH15M to BNC x 5


Categories:
> VGA Cables
IBM-PC VGA DH15M to BNC x 5


1138-06C   IBM-PC VGA DH15M to BNC x 5   6 ft $ 27.00   1 in stock   Add to Cart
1138-10C   IBM-PC VGA DH15M to BNC x 5   10 ft $ 29.95   9 in stock   Add to Cart

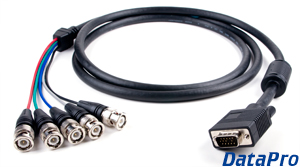

The 1138 SVGA Video cable is used to connect a VGA video output to an analog monitor or projector which has 5 BNC connectors instead of the 15-pin DSub.

One end of this cable assembly has a high-density 3-row male 15-pin DSUB connector, the standard for VGA; the other end has 5 BNC male connectors.

Most monitors today are digital flatscreens, and have VGA (if any) analog inputs; however some projectors still utilize the 5-pin BNC inputs for a more flexible and durable connection.

The cable is made of 75 ohm mini-coax video wire. This low signal loss cable allows lengths of up to 250 feet in most cases, with good signal strength.

The 5 conductors provide RGB (Red/Green/Blue) signals and Horizontal and Vertical sync signals, which are directly matched in the VGA connector. Other non-essential signals in VGA, including monitor and resolution handshake signals, are not included.

Custom-built lengths also available.

We also carry the more common VGA 15-pin male to male cable, as well as a VGA extension cable.


RoHS Compliant
REACH Compliant

Related Products:

Features:

  • Gold-plated contacts
  • Low-loss cable allows lengths of up to 200 feet in most cases, with good strength and fidelity.


    Specifications:

    • 1x Male DH15 VGA Connector, No Pin #9
    • 5x BNC Male, Standard Polarity
    • Wire Gauge 28 & 24 AWG
    • RoHS Compliant
    • CL2 Rated
    • Made of 75 Ohm video-grade coaxial wire
    • Triple-shielded mini-coax wire
    • 1x ferrite core
