Parallel DB25 Panel-Mount Extension


Categories:
> Parallel Cables, Serial & Parallel Panel-Mount Cables
Parallel DB25 Panel-Mount Extension
For 25-pin serial and parallel runs, you can now terminate into a faceplate or bulkhead mount with our panel-mount 25-pin cables. These hoodless cables are built for an easy and secure attachment to a pre-cut hole, such as those found on a standard PC backplane or our various face plates.

1013-03C   D25 Panel-Mount Extension M/F   3 ft $ 59.95   38 in stock   Add to Cart
1013-06C   D25 Panel-Mount Extension M/F   6 ft $ 50.95   26 in stock   Add to Cart
1013-10C   D25 Panel-Mount Extension M/F   10 ft $ 54.95   67 in stock   Add to Cart
1013-25C   D25 Panel-Mount Extension M/F   25 ft $ 69.95   3 in stock   Add to Cart
1013-00C   D25 Panel-Mount Extension M/F
Custom build at $58.00 + $1.00 per foot.
Some custom products may not be REACH compliant.
  Add to Cart

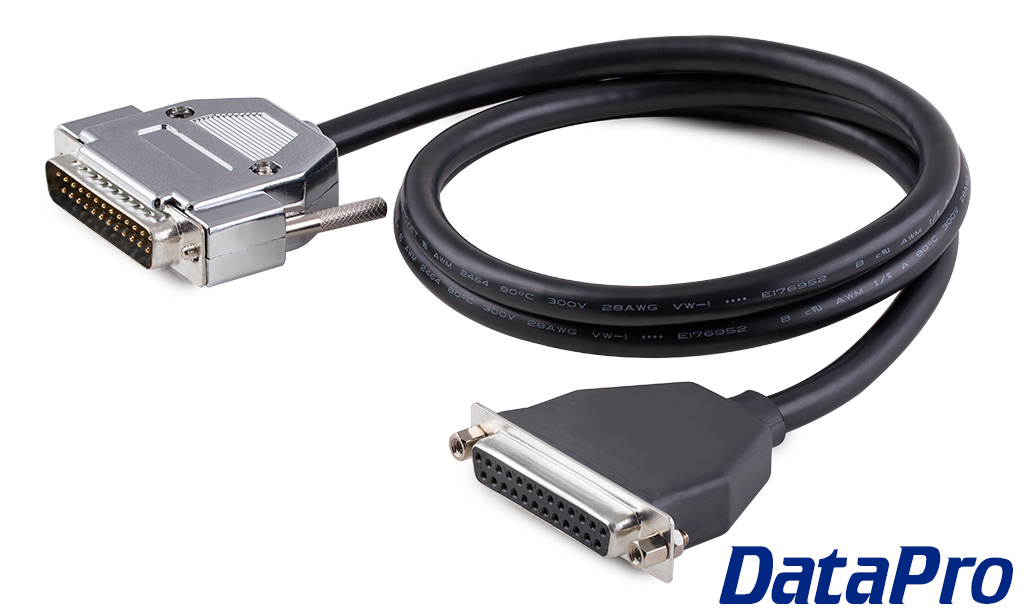

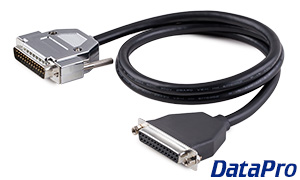

The DataPro 1013 series Serial/Parallel Cable is a panel-mount extension cable to mount securely to a standard 25-pin bulkhead port.

The 1013 series is a DB25F to DB25M configuration; The usual application for this cable is to extend the length of an existing serial or parallel cable.

The wiring diagram is all 25 conductors connected straight-through.

We also build this cable in any length you require. We have built this cable in excess of 50 feet for parallel applications and 300 feet for RS232 serial applications. These lengths will vary depending on the quality of your communications equipment.

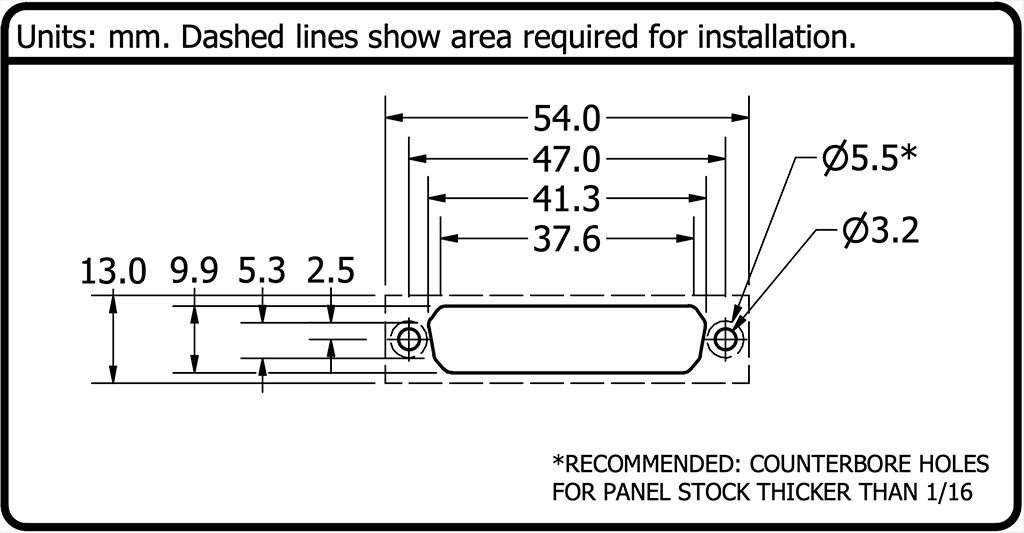

Drawings & Models:

PartDownloads
1013PDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
CL2 In-Wall Rated

Related Products:

Features:

  • Nickel-plated backshell
  • Gold plates connectors
  • CL-2 Rated Wire for in-wall use
