Reverse Polarity SMA Antenna Cable

> Wireless Antenna Cables
Reverse Polarity SMA Antenna Cable


1851-03C   Antenna Cable RP-SMA Extension   3 ft $ 19.95   27 in stock   Add to Cart
1851-06C   Antenna Cable RP-SMA Extension   6 ft $ 23.95   176 in stock   Add to Cart
1851-10C   Antenna Cable RP-SMA Extension   10 ft $ 29.95   14 in stock   Add to Cart
1851-15C   Antenna Cable RP-SMA Extension   15 ft $ 35.00   51 in stock   Add to Cart
1851-25C   Antenna Cable RP-SMA Extension   25 ft $ 45.00   4 in stock   Add to Cart
1851-00C   Antenna Cable RP-SMA Extension
Custom build at $25.00 + $1.00 per foot.
Some custom products may not be REACH compliant.
  Add to Cart

Technical Documents

Download Drawing

Download 3D Model

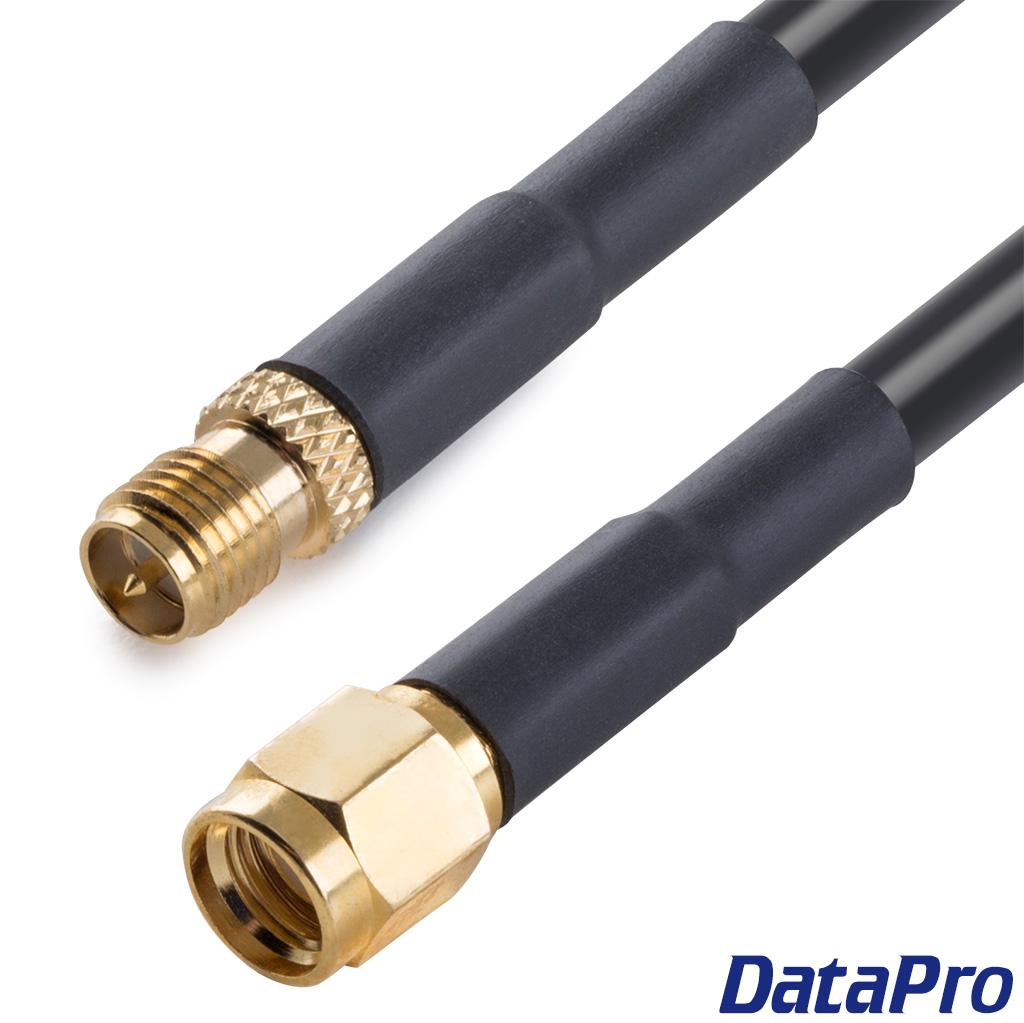

The 1851 series cable is a coaxial cable for wireless antenna connection, using an RP-SMA (reverse polarity) male connector on one end and an RP-SMA (reverse polarity) female connector on the other end.  This cable is used as an extension for SMA reverse polarity wireless antennas.

Most PCI wireless cards use SMA reverse polarity connections to their antennas.  This cable can be used to place the antenna away from the computer.

This cable is made with RG-58 coaxial  wire, having a nominal impedance of 50 Ohms.

We can also build this cable in any length you request.

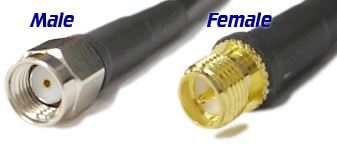

Please note that this cable is of Reverse Polarity, meaning that the male outer-locking connector has a jack and the female inner-locking connector has a pin. RP-SMA is most common on consumer-targeted wireless electronics. If you need a standard polarity cable, with outer-threading and the pin both on the male end, see our SMA Extension Cable.

For more information on this and other wireless antenna connector types, please consult our RF Wireless Connector Guide.

RoHS Compliant
IPC Compliant
Made in the USA
