Thin DisplayPort Panel-Mount Extension

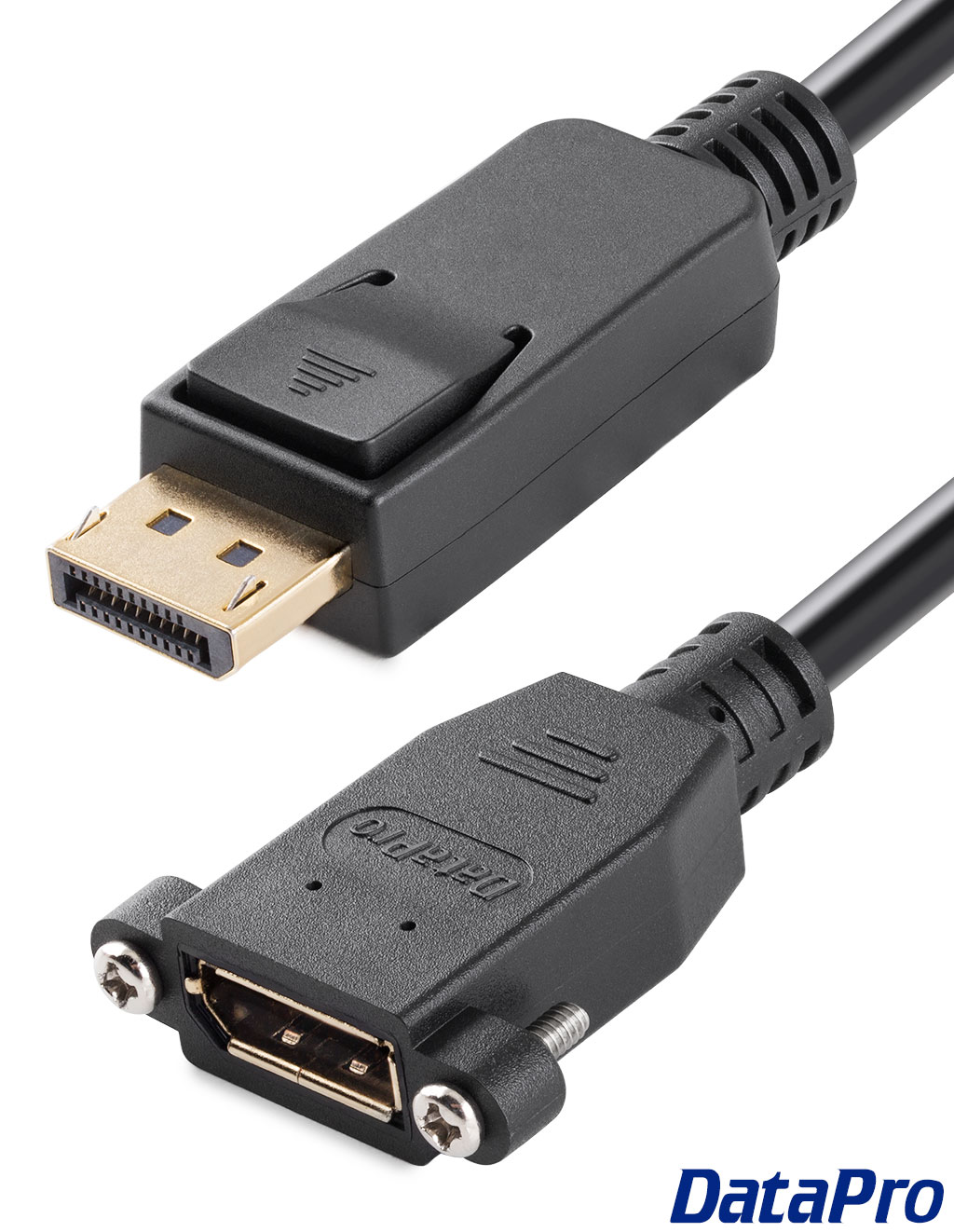

This version of our popular 1170 series panel-mount DisplayPort 1.4 cables uses thinner 30 AWG wire for superior flexibility, allowing for a tighter bend radius and easier routing in small spaces. Panel-mount cables are a great way to add connectivity to an enclosure, panel, plate, or bulkhead. Supports resolutions up to 4K 60Hz.

DataPro's panelmount DisplayPort connectors are guaranteed compatible with our DisplayPort Wall Plates and anything made with our Online Plate Creator.

Click here for PDF version

Part	Downloads
1170T	Drawing (PDF)	Model (STEP)

Features:

• 6mm (0.24") diameter wire allows for tighter bend radius
• CL2 rated for in-wall use
• Includes mounting hardware
• Gold-plated contacts
• Shielded against RFI and EMI interference
• DisplayPort 1.4 rated

Specifications:

• 1x Female DisplayPort Connector
• 1x Locking Male DisplayPort Connector
• Supports resolutions up to 4K UHD @ 60Hz
• Supports DisplayPort 1.4
• Wire Gauge 30 AWG
• 6mm (0.24") diameter wire
• RoHS Compliant
• REACH-224 Compliant
• CL2 Rated
• Embedded 4-40 nuts with mounting screws included
• Allowable panel depth: 2.5mm (full mating)
• Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
