USB 3.0 Panel-Mount A/B    CL2
When something like a wall or bulkhead comes between your computer and your device, don't fret! Go wall-to-wall with USB 3.0 using DataPro's exclusive dual-panelmount USB A-B cable!

1687-01C   USB 3.0 Panel-Mount A/B CL2   1 ft $ 11.95   1379 in stock   Add to Cart
1687-02C   USB 3.0 Panel-Mount A/B CL2   2 ft $ 12.95   70 in stock   Add to Cart
1687-03C   USB 3.0 Panel-Mount A/B CL2   3 ft $ 13.95   72 in stock   Add to Cart
1687-04C   USB 3.0 Panel-Mount A/B CL2   4 ft $ 15.95   38 in stock   Add to Cart
1687-06C   USB 3.0 Panel-Mount A/B CL2   6 ft $ 17.95   55 in stock   Add to Cart

Technical Documents

Download Drawing

Download 3D Model

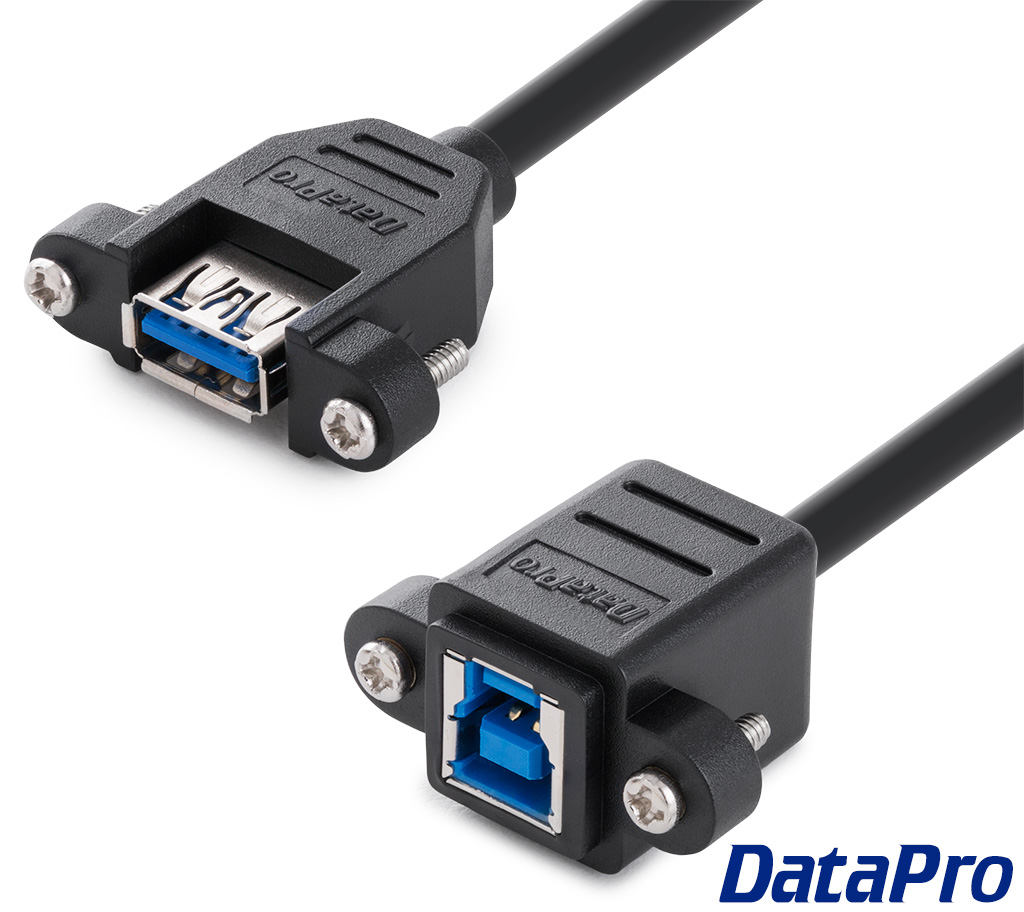

DataPro's dual-mounting A-to-B USB 3.0 cable is designed to bridge a connection between two USB devices that are separated by a physical barrier. With a panelmount female jack on each end, this cable will mount inside a wall or bulkhead to provide easy access to both host and device.

This particular model is designed to emulate the physical host and device ports on each end, by providing a female USB-B jack for the host to plug into and a female USB-A jack for the device to plug into. As such, common USB A-B cables will fill in the rest.

The 'A' panelmount end features a standard USB A female, including the 4-pin 2.0 connection as well as the 5 SuperSpeed pins for USB 3.0. The 'B' panelmount end features the larger USB 3.0 jack, which is physically compatible with smaller USB 2.0 'B' cables.

Please note that if you would like to extend your USB connection more than 15 feet from source to device, you'll need to use an active USB booster cable.


Features:

  • Panel-mountable Female USB Type-A and panel-mountable Female USB Type-B connectors
  • CL2 rated for in-wall use
  • Includes mounting hardware
  • Gold-plated contacts
  • Shielded to minimize Electromagnetic / Radio Frequency Interference (EMI / RFI)


Specifications:

  • 1x Panel-Mountable Female USB Type-A Connector
  • 1x Panel-Mountable Female USB Type-B Connector
  • USB 3.0, supports SuperSpeed USB 5Gb/s
  • Backwards compatible with USB 1.1/2.0
  • Aluminum/Mylar Foil Wrap + Braided Shielding and Drain Wire
  • Wire Gauge 28 & 24 AWG
  • RoHS Compliant
  • CL2 Rated
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
