USB 3.0 Panel-Mount A to 20 Pin Header


Categories:
> USB Panel-Mount Cables, USB 3.0 and 3.1 Products, Panel-Mount USB-A Cables
USB 3.0 Panel-Mount A to 20 Pin Header


1610-01C   USB 3.0 Panel-Mount A to 20P   1 ft $ 12.95   75 in stock   Add to Cart
1610-02C   USB 3.0 Panel-Mount A to 20P   2 ft $ 14.95   474 in stock   Add to Cart
1610-03C   USB 3.0 Panel-Mount A to 20P   3 ft $ 15.95   347 in stock   Add to Cart

Technical Documents

Download Drawing

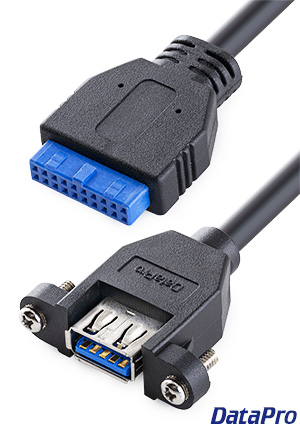

Connect a plate or panel-mounted USB 3.0 port directly to your device's motherboard. Although this cable uses the full 20 pin header, it outputs to only a single USB port. For the dual version, see part 1620.






Click here for PDF version


Features:

  • Panel-mountable Female USB Type-A connector
  • CL2 rated for in-wall use
  • Includes mounting hardware
  • Gold-plated contacts
  • Shielded to minimize Electromagnetic / Radio Frequency Interference (EMI / RFI)


Specifications:

  • 1x Panel-Mountable Female USB Type-A Connector
  • 1x 20-Pin Female Motherboard Header
  • USB 3.0 SuperSpeed supports 5Gb/s bandwidth
  • Backwards compatible with USB 1.1/2.0
  • Aluminum/Mylar Foil Wrap + Braided Shielding and Drain Wire
  • Wire gauge 28 & 24 AWG
  • RoHS Compliant
  • CL2 Rated
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
