USB to MotherBoard 4-Pin Slot


Categories:
> USB 2.0 Cables, USB Panel-Mount Cables, Panel-Mount USB-A Cables
USB to MotherBoard 4-Pin Slot
Allows the mounting of a female USB 2.0 Type-A connector to a panel, connected to a 4-pin Intel style motherboard header, or 2.54mm Pitch Connector.

1490-01C   USB to MotherBoard 4-Pin Slot   1 ft $ 7.95   331 in stock   Add to Cart
1490-02C   USB to MotherBoard 4-Pin Slot   2 ft $ 8.95   1932 in stock   Add to Cart
1490-03C   USB to MotherBoard 4-Pin Slot   3 ft $ 9.95   1145 in stock   Add to Cart
1490-00C   USB to MotherBoard 4-pin Slot
Custom build at $14.95 + $1.00 per foot.
Some custom products may not be REACH compliant.
  Add to Cart

Technical Documents

Download Drawing

Download 3D Model

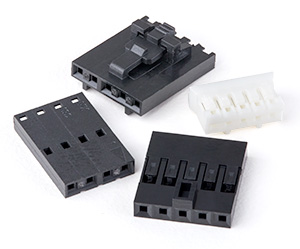

LMR-400 Available! Available with an unpolarized connector!
This cable can be built with an unpolarized 2.54mm header connector. Contact us for details.

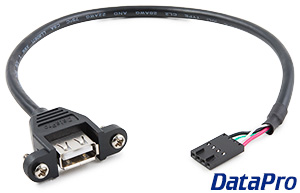

The DataPro 1490 USB cable is a short jumper cable that allows the mounting of a female USB 2.0 Type-A connector to a panel, connected to a 4-pin Intel style motherboard header, or 2.54mm Pitch Connector.

This external connector is where the USB bus will connect from the external hub or external devices. It features a panel-mount USB female with 4-40 sized screws.

The 1490 has a duplex 4-pin cable. Most motherboards have two sets of 4-pins for two USB ports like the one on this product.

The type-A female connector is held within a durable over-molded plastic casing with embedded 4-40 nuts, ideal for a chassis mount. The required 4-40 mating screws are included with the cable.

For information about selecting, installing, and using wall plates in your applications, see our Guide to Wall Plates & Cables.


Click here for PDF version


Features:

  • Panel-Mountable Female USB Type-A Connector
  • Custom length available up to 15ft
  • CL2 rated for in-wall use
  • Includes mounting hardware
  • Gold-plated contacts


Specifications:

  • USB 1.1/2.0 High-Speed Compatible
  • Max speed 480 Mb/s
  • RoHS compliant
  • CL2 rated
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
