USB Panel-Mount to 5-pin Socket


Categories:
> USB 2.0 Cables, USB Panel-Mount Cables, Panel-Mount USB-A Cables
USB Panel-Mount to 5-pin Socket
Add USB ports to your computer case, custom hardware, or OEM system, quickly and easily! This mounting cable provides a female USB port wherever it's installed, and the PCB pins at the other end terminate directly on a motherboard or other controller.

1590-01C   USB Panel Mount A to Socket   1 ft $ 7.95   5225 in stock   Add to Cart
1590-02C   USB Panel-Mount A to Socket   2 ft $ 8.95   902 in stock   Add to Cart
1590-03C   USB Panel-Mount A to Socket   3 ft $ 9.95   1047 in stock   Add to Cart
1590-00C   USB Panel Mount A to Socket
Custom build at $14.95 + $1.00 per foot.
  Add to Cart

Technical documents are available upon request for authorized usage.

Contact us if you require drawings or 3D models to integrate this product into your project.

LMR-400 Available! Available with an unpolarized connector!
This cable can be built with an unpolarized 2.54mm header connector. Contact us for details.

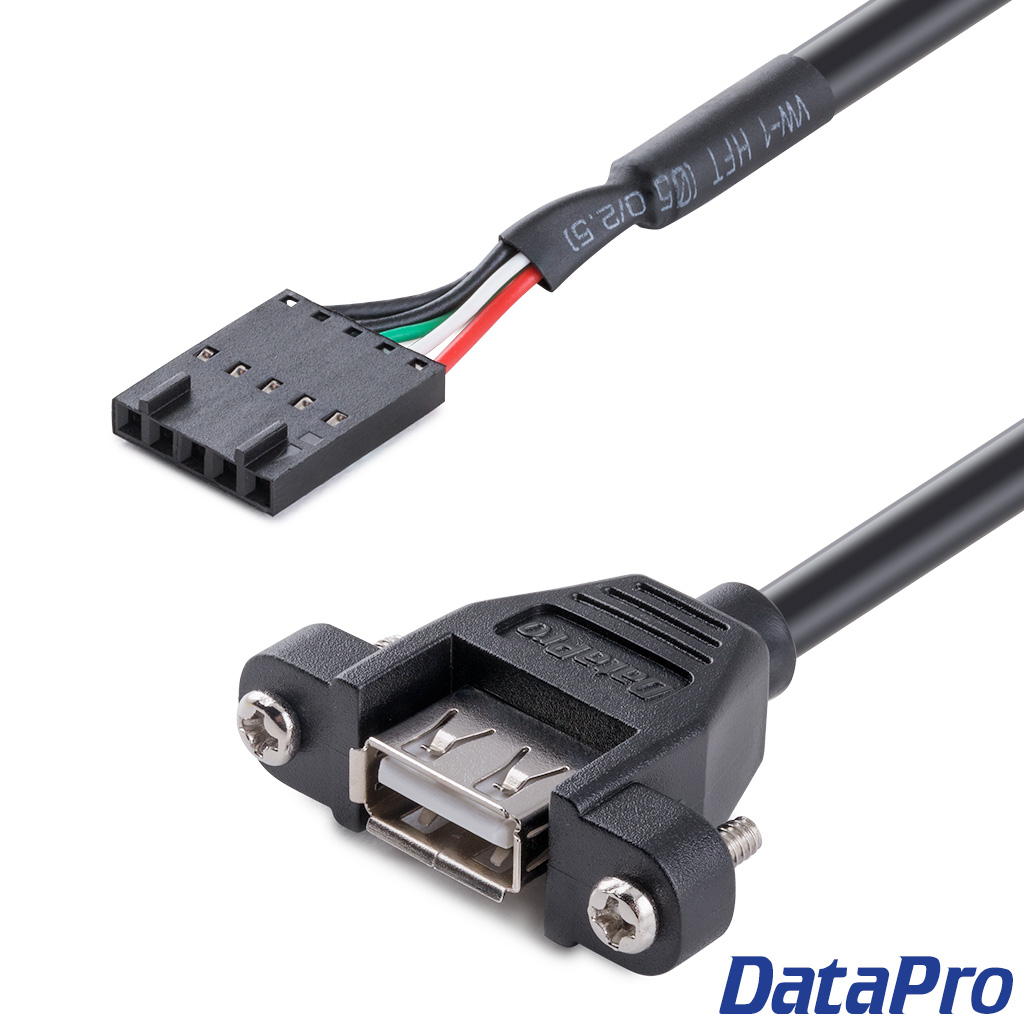

The DataPro 1590 USB cable is a jumper cable that provides a panel-mounting USB port to any device with PCB headers, such as any modern motherboard or a custom OEM device.

This cable features a 5-pin PCB connector (header) at 0.100 pitch, with separate signal and wire grounds. We also carry a Panelmount USB to 4-pin cable for combined grounds, for terminating on a 4-pin board.

This external connector includes two mounting screws for secure attachment to a chassis, frontpanel, or backplane. It is a panel-mount USB A-type female with size 4-40 screws, and the nuts are inset in the molded hood so they won't get lost. No threading is required on the mounting panel.

This product supports USB 2.0 high-speed data transfer rates.

Please note that if you would like to extend your USB connection more than 15 feet from source to device, you'll need to use an active USB booster cable or active USB booster.


Click here for PDF version


Features:

  • USB 1.1/2.0 High-Speed Compatible
  • CL2 rated for in-wall use
  • Embedded 4-40 nuts with mounting screws included


Specifications:

  • Max speed 480Mbit/s
  • Allowable panel depth: 4.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
