VGA Panel-Mount Extension Cable


Categories:
> VGA Cables, VGA Panel-Mount Cables
VGA Panel-Mount Extension Cable
Our exclusive panel-mount VGA cable allows you to mount a monitor or video port anywhere with minimal signal loss. By avoiding couplers and pass-thru connectors, and securing the wire run directly to a bulkhead or face plate, these guarantee the best quality picture possible, wherever you need it!

1152-01C   VGA Panel-Mount Ext CL2 PVC   1 ft $ 23.50   544 in stock   Add to Cart
1152-02C   VGA Panel-Mount Ext CL2 PVC   2 ft $ 24.00   220 in stock   Add to Cart
1152-03C   VGA Panel-Mount Ext CL2 PVC   3 ft $ 25.00   573 in stock   Add to Cart
1152-04C   VGA Panel-Mount Ext CL2 PVC   4 ft $ 26.00   846 in stock   Add to Cart
1152-06C   VGA Panel-Mount Ext CL2 PVC   6 ft $ 27.00   206 in stock   Add to Cart
1152-10C   VGA Panel-Mount Ext CL2 PVC   10 ft $ 29.95   414 in stock   Add to Cart
1152-15C   VGA Panel-Mount Ext CL2 PVC   15 ft $ 35.00   147 in stock   Add to Cart
1152-25C   VGA Panel-Mount Ext CL2 PVC   25 ft $ 45.00   111 in stock   Add to Cart
1152-30C   VGA Panel-Mount Ext CL2 PVC   30 ft $ 49.00   85 in stock   Add to Cart
1152-40C   VGA Panel-Mount Ext CL2 PVC   40 ft $ 59.00   71 in stock   Add to Cart
1152-50C   VGA Panel-Mount Ext CL2 PVC   50 ft $ 69.00   57 in stock   Add to Cart
1152-00C   VGA Panel-Mount Extension
Custom build at $60.00 + $1.50 per foot.
Some custom products may not be REACH compliant.
  Add to Cart
1152-00P   VGA Panel-Mount Ext. Plenum
Custom build at $90.00 + $3.80 per foot.
Some custom products may not be REACH compliant.
  Add to Cart

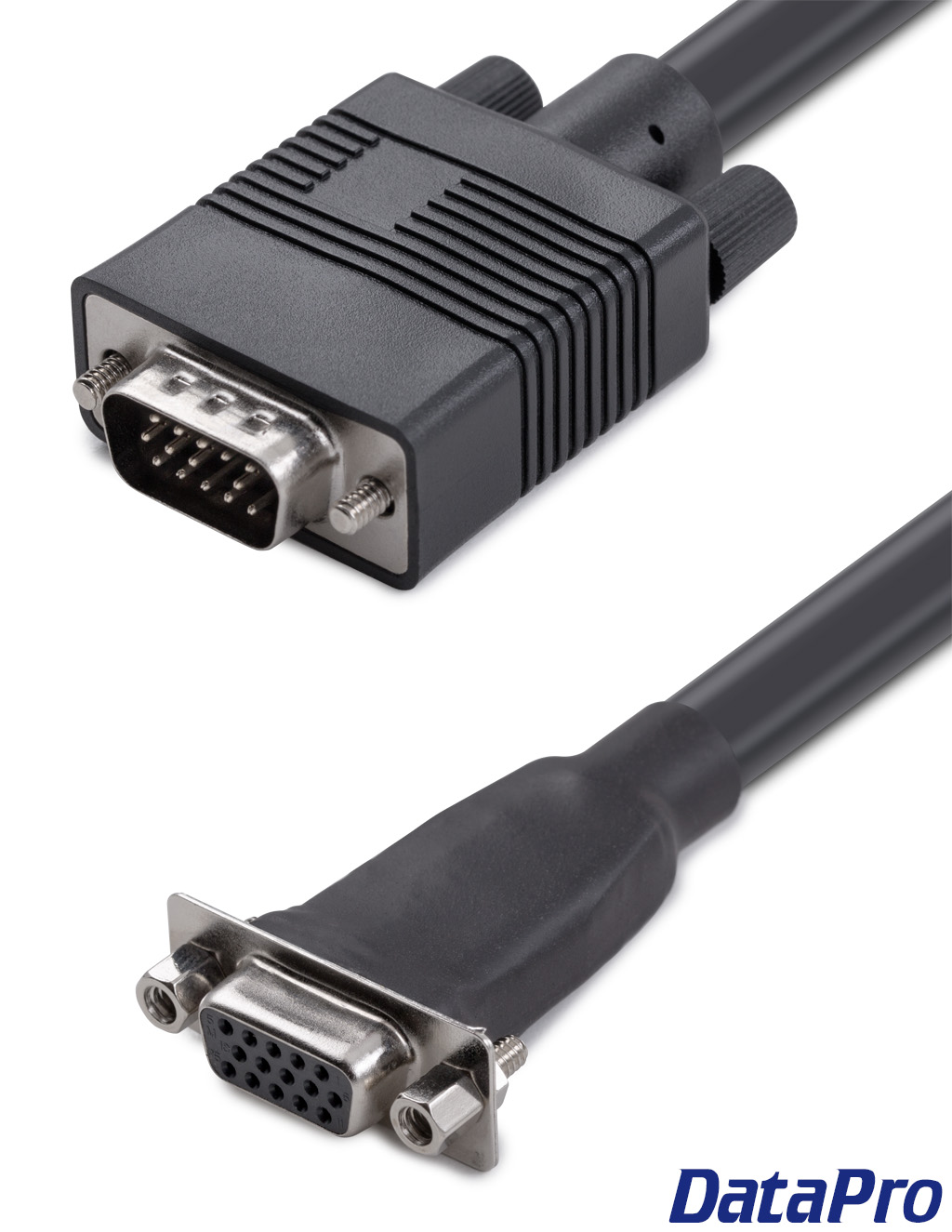

The DataPro VGA Panel-Mount extension cable is used to extend your existing VGA cable and mount a female port remotely on a VGA wall plate.

This uses the same high-grade wire as our standard VGA extension, except that the female end has been converted to a panel-mountable connector and includes the long jack-screws needed for mounting to a face plate or wall plate.

The female end is a non-hooded panel-mount VGA socket, which functions as a low-profile bulkhead connector. The male end is a standard VGA molded 15-pin (3-row) connector (with Pin 9 absent per VGA spec).

The cable is made of 75 Ohm video-grade coaxial wire. This low signal loss cable allows lengths of up to 200 feet in most cases, with good signal strength.

If your conduit or wiring environment can't accommodate a full VGA connector, we also offer non-terminated VGA panel-mounts cables with a convenient splice for easy termination.

For information about selecting, installing, and using wall plates in your applications, see our Guide to Face Plates and Panel-Mount Cables.

Please note that 1F and 2F lengths of this part (1152-01C and 1152-02C) do not include ferrites, so as to preserve their flexibility.


Drawings & Models:

PartDownloads
1152PDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
REACH Compliant
CL2 In-Wall Rated
IPC Compliant

Related Products:

Features:

  • Panel mountable female VGA Connector
  • Includes mounting hardware
  • CL2 rated for in-wall use
  • Gold-plated contacts
  • Low-loss cable allows lengths of up to 200 feet in most cases, with good strength and fidelity.


Specifications:

  • 1x Panel Mountable Female DH15 VGA Connector
  • 1x Male DH15 VGA Connector, No Pin #9
  • Wire Gauge 28 & 24 AWG
  • RoHS Compliant
  • CL2 Rated
  • Made of 75 Ohm video-grade coaxial wire
  • Triple-shielded mini-coax wire
  • 2x ferrite cores (except for 1ft and 2ft lengths; snap-on ferrite for custom lengths)
  • Includes removable male-female threaded hex standoffs for mounting
  • Allowable panel depth:
    • 1.5mm (full mating)
    • 2.0mm (max recommended)
