Waterproof VGA Panel Mount Extension Cable


Categories:
> VGA Panel-Mount Cables, VGA Cables, IP-Rated Rugged Cables
Waterproof VGA Panel Mount Extension Cable
Add a waterproof VGA connection to a bulkhead, plate, or panel

1152-00W   VGA Panel-Mount Ext Waterproof
Custom build at $60.00 + $1.50 per foot.
Some custom products may not be REACH compliant.
  Add to Cart

Technical Documents

Download Drawing

Download 3D Model

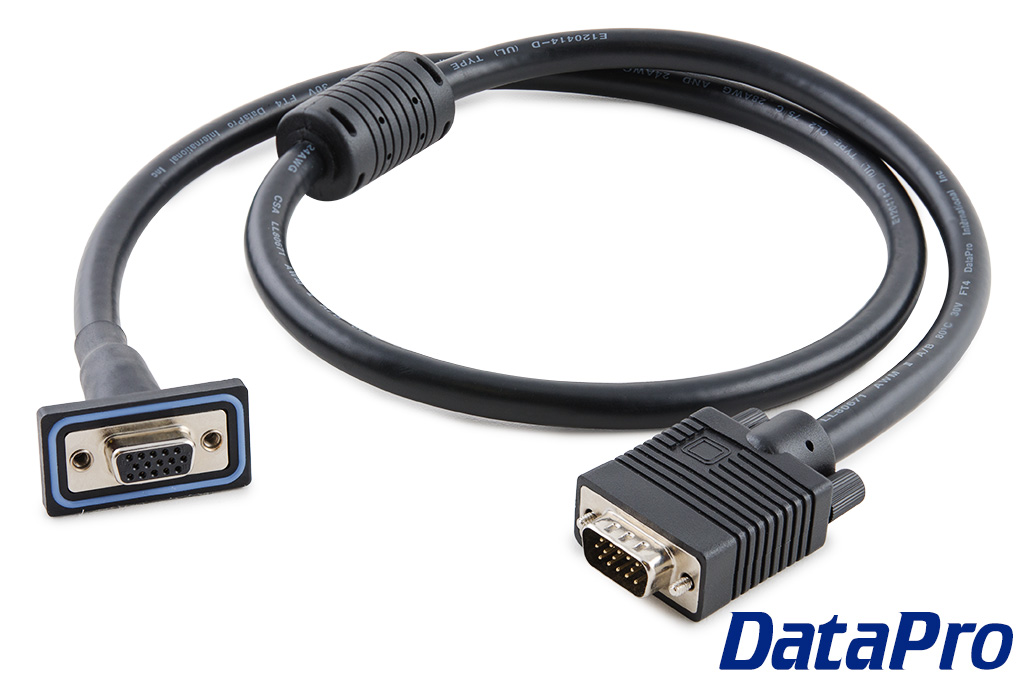

The DataPro 1152W series cable is a VGA extension cable, male to female, with a waterproof panel-mount connector on the female end for mounting into a faceplate or wallplate.

As an alternative to bulky waterproof connectors that require a screw-on cap, ours prevents moisture ingress even when uncapped.  However we recommend a waterproof port cover for extended periods of exposure.

Please note that due to the design of the waterproof connector, it is impossible to ground the shell on the panel-mount end of the cable.  If you require this functionality, please contact our Sales department!


RoHS Compliant
CL2 In-Wall Rated
IPC Compliant
Made in the USA

Related Products:

Features:

  • Waterproof, panel mountable female VGA Connector
  • Includes mounting hardware
  • CL2 rated for in-wall use
  • Gold-plated contacts
  • IP67 Rated for dust and water resistance.


Specifications:

  • 1x Panel Mountable Waterproof Female DH15 VGA Connector
  • 1x Male DH15 VGA Connector
  • Wire Gauge 28 & 24 AWG
  • RoHS Compliant
  • CL2 Rated
  • Made of 75 Ohm video-grade coaxial wire
  • Triple-shielded mini-coax wire
  • Aluminum/Mylar Foil Wrap + Braided Shielding and Drain Wire
  • 1x ferrite core (except for 1ft and 2ft lengths; snap-on ferrite for custom lengths.)
  • Includes removable male-female threaded hex standoffs for mounting
  • IP67 Rated (Submersion up to 1m, or 3.3 ft)

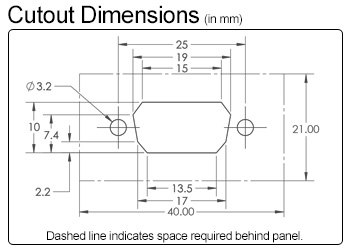

  • Maximum recommended panel thickness 0.078"
