Custom Pelican Case Panels

DataPro Help > Custom Pelican Case Panels

Customize Online or Built To Spec!

Mount electronics, instruments, and more in a Pelican case with our custom Pelican case panels. We offer two options for this process. The first is through our online Custom Plate Creator. The Plate Creator allows panels to be previewed, quoted, and immediately ordered online. If you have a more specific design in mind, or need something our Plate Creator can't do, see below for details on submitting a custom design.

These optionally-waterproof inserts are perfect for creating a custom Pelican FPV ground station case, pyrotechnics firing panel, or launch controller. European style custom Peli panels also available.

We also carry blank panels - click here.

Contact our Sales Team:

or email us at
Custom Panels

Configure on Plate Creator Configure a Pelican Case Panel online now!
Custom Pelican Panel Submit a custom design or request a drawing
Blank Pelican Panel Order a blank plate

Submitting a Custom Design
Contact our Sales Team:

or email us at

Start by downloading a drawing or STEP file below. Then just email or give us a call to get started. Our experienced sales staff can start with any kind of drawing or design.

See below for information on available materials, options, and other common cutouts.


Select a style to download a PDF drawing:


Select a style to download its 3D model in STEP format:

Available Options

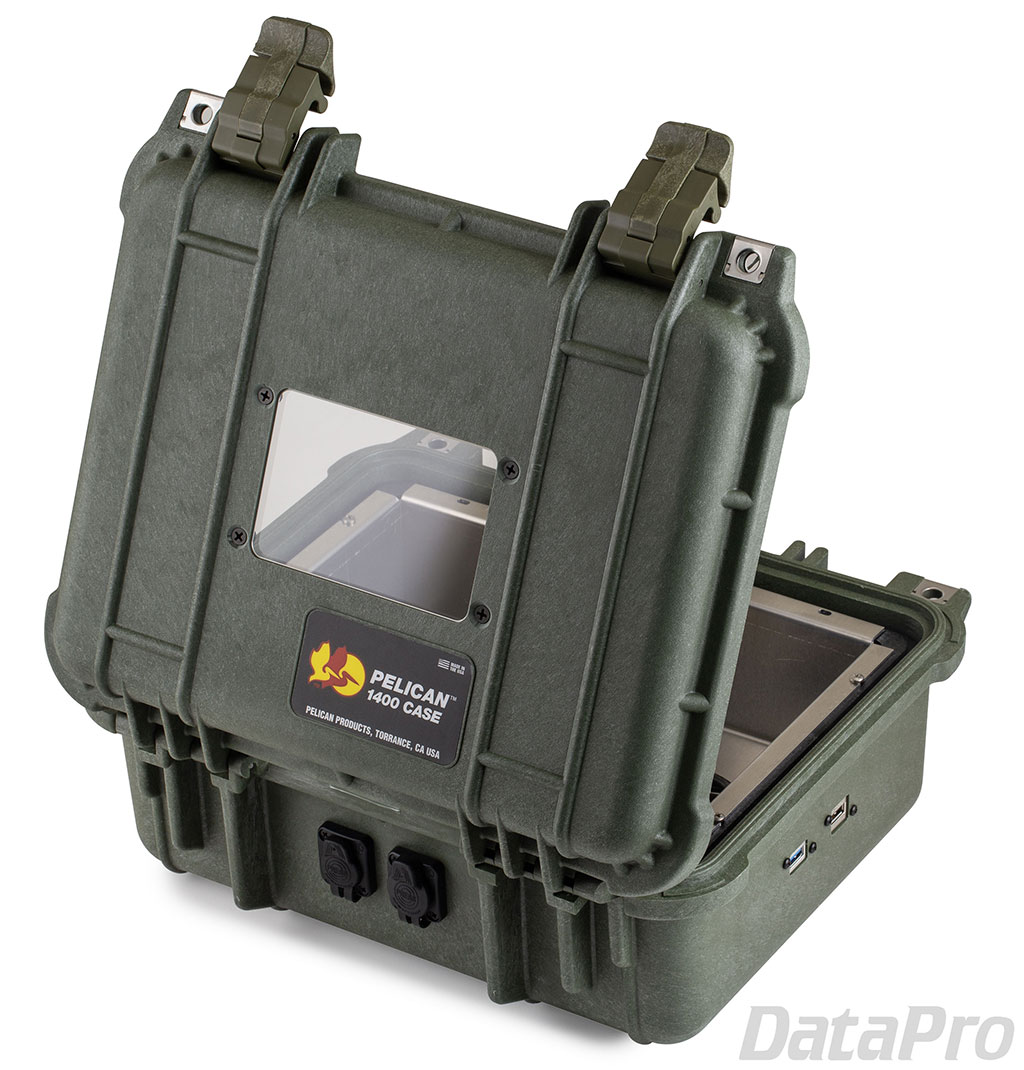

Side Cutouts
Make your case useable even when closed with cutouts on the sides of the case.

Note: Side cutouts can compromise waterproofing, and will void Pelican's lifetime warranty. Please contact our customer service department for details.
Laser Marking

Laser Marking
For clean lines on almost any type of material, laser marking works best.

[Laser Marking Sample Gallery]
Laser Marking

Recommended for use on any material with a contrasting surface treatment. Works best on anodized aluminum and layered acrylic.

While pre-anodized aluminum is available, we can also anodize your panels post-cutting. Anodizing is available in a number of colors, and provides an attractive, protective finish.

Powder Coating
Protect your panel with a high-quality powder coat, available in a variety of colors!
Powder Coating

Press-Fit Fasteners
Mount PCBs, attach mounting hardware, and more with press-fit fasteners.
Press-Fit Fasteners

Custom Nameplate
Add a custom engraved or laser marked nameplate!
Custom Nameplate

Panel Frame
Need a Panel Frame to go with your panel? Let us know and we can add it to your order!
Pelican Panel Frame

Pelican Case
It never hurts to have a backup case!
Pelican Panel Frame

Materials Materials

We stock a variety of common materials in multiple colors and thicknesses, but can source nearly anything with a very short turnaround. If you don't see what you're looking for here, just contact us.

  0.048" 0.050" 0.063" 0.090" 0.125"
Matte or Glossy Black, 75% or 90% opaque White
Layered Acrylic
Black with White Core or White with Black Core
6061 Aluminum
Bare or Black Aodized
5052 Aluminum
Clear or Black Anodized
4130, A366/1008, and T-304 available

0.125" Acrylic
This acrylic material is lightweight and durable, with outstanding resistance to sunlight and weathering.

Color Filleting Chamfering Engraving
Glossy Black Yes Yes No
Matte Black Yes Yes No
Glossy White 90% Opaque Yes Yes No
Glossy White 75% Opaque Yes Yes No
Matte White 75% Opaque Yes Yes No

Plastic Sandwich
0.125" Layered Acrylic
Made of three layers, with a contrasting color sandwiched between two shell layers. This makes for excellent, high-contrast direct engraving.

Color Filleting Chamfering Engraving
Black (White core) No No Yes
White (Black core) No No Yes

Anodized Aluminum
6061 Anodized Black Aluminum
An affordable and sharp-looking alternative to batch anodizing. This pre-anodized black aluminum lasers beautifully. The only downside is the bare aluminum showing on the edges. For a fully anodized panel, see our Post-Cut Anodizing option.

Thickness Filleting Chamfering Engraving
0.125" Yes Yes Yes
0.090" Yes Yes Yes
0.063" Yes Yes Yes

Bare Aluminum
6061 Aluminum
A popular and durable material, available in a variety of thicknesses.

Thickness Filleting Chamfering Engraving
0.125" Yes Yes Yes
0.090" Yes Yes Yes
0.063" No Yes Yes
0.040" No No No

5052 Aluminum
5052 Anodized Aluminum
Available in clear or black anodizing.

Thickness Filleting Chamfering Engraving
0.090" Clear Anodized Yes Yes Yes
0.090" Black Anodized Yes Yes Yes

A durable structural material available in a number of styles and thicknesses.

Material Filleting Chamfering Engraving
0.050" 4130 Chromoly Steel Yes Yes Yes
0.125" 4130 Chromoly Steel Yes Yes Yes
0.048" A366/1008 Steel Yes Yes Yes
0.048" T-304 Stainless Steel Yes Yes Yes
0.063" T-304 Stainless Steel Yes Yes Yes

Brushed Brass
A beautiful material that polishes up wonderfully and has antibacterial properties.

Thickness Filleting Chamfering Engraving
0.063" Yes Yes Yes
0.090" Yes Yes Yes
0.125" Yes Yes Yes

Standard Cutouts

The following cutouts are guaranteed compatible with our full array of panel-mount couplers and cables. If you need any cutouts not listed here, just include them on your drawing with as much detail as possible.

Cutout Name Compatible Coupler Compatible Cable
C13 PC Power Outlet XX-PWR-C13 -
C14 PC Power Inlet XX-PWR-C14 -
DB9 RS232 Serial CCP-D09MM 1023 (P/M Male to Female)
1122 (P/M Female to Male)
DB25 Parallel CCP-D25 1013 (P/M Female to Male)
Decora 75PWRUSB USB/AC Power Insert Custom Decora Inserts
DisplayPort CCP-DSP 1170 (P/M Female to Male)
1174 (P/M Female to Male Mini DisplayPort)
DVI CCP-DVI 1143 (P/M Female to Male)
Ethernet CAT5/CAT6 Cable CCP-C6
CCP-C6S (shielded)
1770 (Cat5e)
1771 (Cat6)
F-Type Coaxial (TV Cable) CCP-FTV -
FireWire 400 -
1390 (P/M Female to header)
1398 (P/M Female to Male)
1388 (P/M Female to P/M Female)
FireWire 800 CCP-FW800 -
1-inch Grommet Grommet included -
1.5-inch Grommet Grommet included -
HDMI CCP-HDMI 1160 (P/M Female to Male)
1168 (P/M Female to P/M Female)
Keystone Snap-in All Keystone parts -
Keystone Snap-in (Dual) All Keystone parts -
Household Light Switch - -
Power 120V Duplex ZZ-PWR-X2 -
PS/2 CCP-PS2 1169 (P/M Female to Male)
Speaker Post/Banana Jack CCP-PST* -
Stereo 3.5mm (1/8in) CCP-3.5 1224 (P/M Female to Male)
1223 (P/M Female to P/M Female)
Stereo 1/4in - 1225 (P/M Female to Male)
1226 (P/M Female to P/M Female)
S-Video CCP-CSV 1164 (P/M Female to Male)
SMA Antenna CCP-SMA -
TNC Antenna CCP-TNC -
Toslink Optical (via Keystone) CCK-TOS -
USB Type A CCP-USBA-FLX (P/M Female to Female
CCP-USB-A-FF (P/M Female to Female)
CCP-USBB (P/M Female to P/M Female Micro-B)
1490 (P/M Female to Header)
1588 (P/M Female to P/M Female)
1590 (P/M Female to Header)
1598 (P/M Female to Male)
1698 (P/M Female to Male 3.0)
1688 (P/M Female to P/M Female 3.0)
1687 (P/M Female to P/M Female B 3.0)
1699 (P/M Female to P/M Male B 3.0)
USB Type B - 1580 (P/M Female to Header)
1589 (P/M Female to Male A)
1591 (P/M Female to Male)
USB 3.0 Type B - 1691 (P/M Female to Male)
1687 (P/M Female to P/M Female A)
USB Micro B CCP-USBB-MIC 1584 (P/M Female to Male)
USB Type C Available soon! -
VGA CCP-VGA 1152 (P/M Female to Male)
1154 (P/M Female to Male w/pigtail)
1156 (P/M Female to P/M Female)
1157 (P/M Female to P/M Female w/pigtail)
Neutrik XLR View all Neutrik-compatible couplers 1231 (P/M Female to Male)
1232 (P/M Male to Female)

*Not recommended for use on conductive (metal) panels. We recommend using a CCK-PST with a Keystone cutout instead.
