Non-Term VGA Spliced Panel-Mount Cable

> Spliced VGA Cables, VGA Panel-Mount Cables
Non-Term VGA Spliced Panel-Mount Cable
The convenience of panel-mounting cables and non-terminated VGA in one amazing cable! This cable uses our special spliced-VGA breakaway for easy routing, and terminates to a panel-mount connector for installation on a faceplate or custom panel.

1154-10C   VGA Spliced Panel-Mount M/F   10 ft $ 39.00   46 in stock   Add to Cart
1154-15C   VGA Spliced Panel-Mount M/F   15 ft $ 45.00   19 in stock   Add to Cart
1154-20C   VGA Spliced Panel-Mount M/F   20 ft $ 50.00   8 in stock   Add to Cart
1154-25C   VGA Spliced Panel-Mount M/F   25 ft $ 55.00   10 in stock   Add to Cart
1154-30C   VGA Spliced Panel-Mount M/F   30 ft $ 59.00   13 in stock   Add to Cart
1154-40C   VGA Spliced Panel-Mount M/F   40 ft $ 69.00   5 in stock   Add to Cart
1154-50C   VGA Spliced Panel-Mount M/F   50 ft $ 79.00   9 in stock   Add to Cart
1154-00C   VGA Spliced Panel-Mount M/F
Custom build at $35.00 + $1.50 per foot.
Some custom products may not be REACH compliant.
  Add to Cart
1154-00P   PM-F/M VGA Spliced Cab PLENUM
Custom build at $90.00 + $3.80 per foot.
Some custom products may not be REACH compliant.
  Add to Cart

Technical Documents

Download Drawing

Download 3D Model

The DataPro VGA panel-mount extension cable is used to extend the length of a VGA, XGA, or SVGA monitor cable, and is a non-terminated cable for use in wire runs through conduit, walls, boats, etc. The pigtail end is panel-mount VGA, and can terminate on a bulkhead or wallplate.

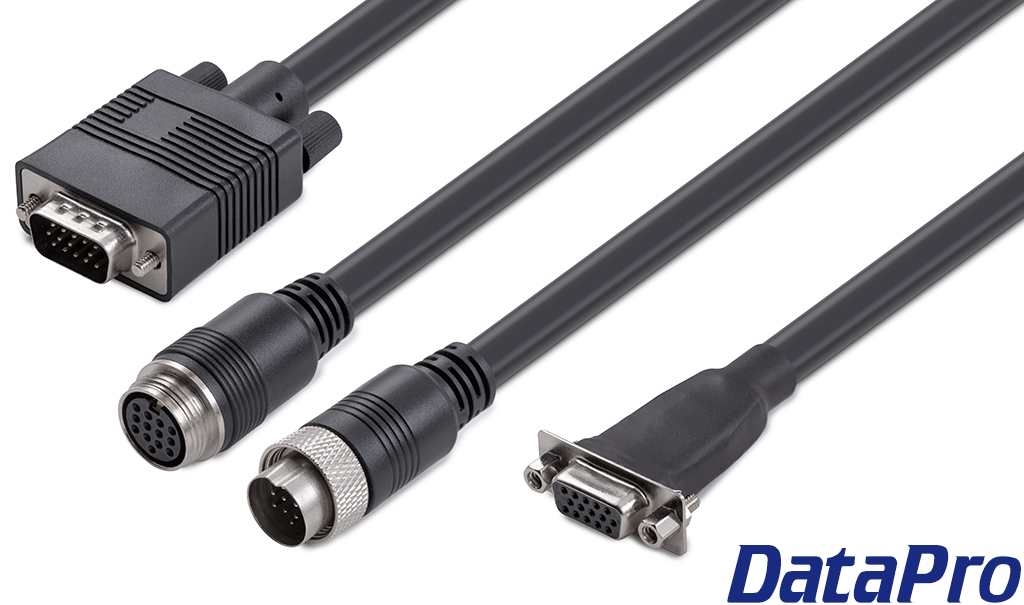

The first piece of the set has a male VGA connector and a locking male circular connector, available in various lengths. The second piece has a female circular and a panel-mount female VGA connector, and measures approximately 18 inches long. Both parts are included when you order.

By splicing the two VGA connectors with the circular connector, this cable can be run through wiring holes as small as 0.75" (19mm). Once reassembled, the splice connectors screw-lock together for a tight and secure seal.

Splice connector fits through 3/4" conduit!

The cable is made of 75 Ohm video-grade coaxial wire. This low-signal-loss cable allows lengths of up to 200 feet in most cases, with good signal strength.

We also offer spliced, non-terminated VGA cables in the following configurations:

If you don't need the non-terminated splice, see our standard VGA male/female extension cable.

Click here for PDF version

Please note that the splice connector does not conduct the ID and DDC channels (pins 5 and 9) of the VGA signal. Most computer monitors have no issue with this, but some television and projector models cannot detect a signal without these channels.
