Recessed Dish Panels

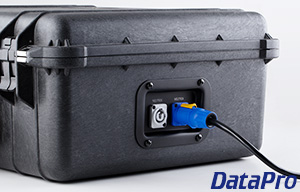

These recessed steel panels are the perfect way to add semi-protected external connections such as power inlets, data ports, or vents. These can be customized with our Online Plate Creator, including marking and labeling. Dish panels are a popular modification for Pelican and other rugged cases.

Add an optional foam gasket to create a water resistant seal.

Part	Dimensions	Usable Area	Downloads

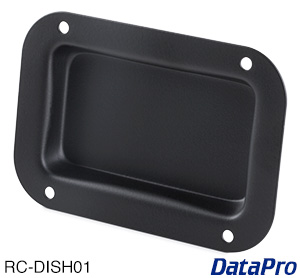

RC-DISH01-BLK	5.14 x 3.50in (130.6 x 88.9mm)	3.84 x 2.12in (97.5 x 53.8mm)	Drawing (PDF)	Cutout (PDF)	Model (STEP)

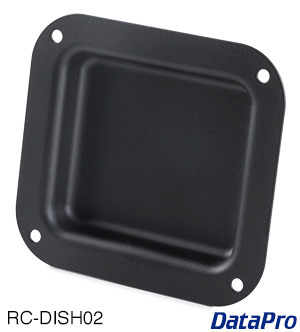

RC-DISH02-BLK	4.41 x 4.02in (112.0 x 102.1mm)	3.15 x 2.76in (80 x 70.1mm)	Drawing (PDF)	Cutout (PDF)	Model (STEP)

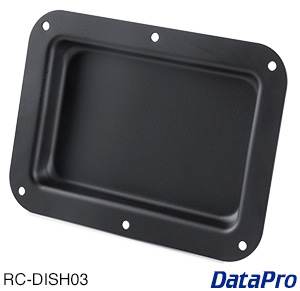

RC-DISH03-BLK	7.00 x 5.00in (177.8 x 127.0mm)	5.48 x 3.50in (139.2 x 88.9mm)	Drawing (PDF)	Cutout (PDF)	Model (STEP)

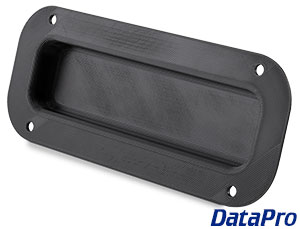

RC-DISH04-BLK	6.75 x 2.75in (171.5 x 69.85mm)	5.14 x 1.06in (130.56 x 26.92mm)	Drawing (PDF)	Cutout (PDF)	Model (STEP)

Part	Downloads
RC-DISH	Drawing (PDF)	Model (STEP)

Features:

• Includes mounting hardware
• Steel construction with durable black powdercoat finish
• RC-DISH04-BK is 3D printed plastic

Specifications:

• 0.047" (1.2mm) Steel
• RC-DISH01-BK Dimensions: 5.14 x 3.50in (130.6 x 88.9mm) Usable: 3.84 x 2.12in (97.5 x 53.8mm)
• RC-DISH02-BK Dimensions: 4.41 x 4.02in (112.0 x 102.1mm) Usable: 3.15 x 2.76in (80 x 70.1mm)
• RC-DISH03-BK Dimensions: 7.00 x 5.00in (177.8 x 127.0mm) Usable: 5.48 x 3.50in (139.2 x 88.9mm)
• RC-DISH04-BK Dimensions: 6.75 x 2.75in (171.5 x 69.86mm) Usable: 5.14 x 1.06in (130.56 x 26.92mm)
