IP67 Waterproof Dual USB 2.0 Panel-Mount Extension Cable

> Panel-Mount USB-A Cables, IP-Rated Rugged Cables
IP67 Waterproof Dual USB 2.0 Panel-Mount Extension Cable

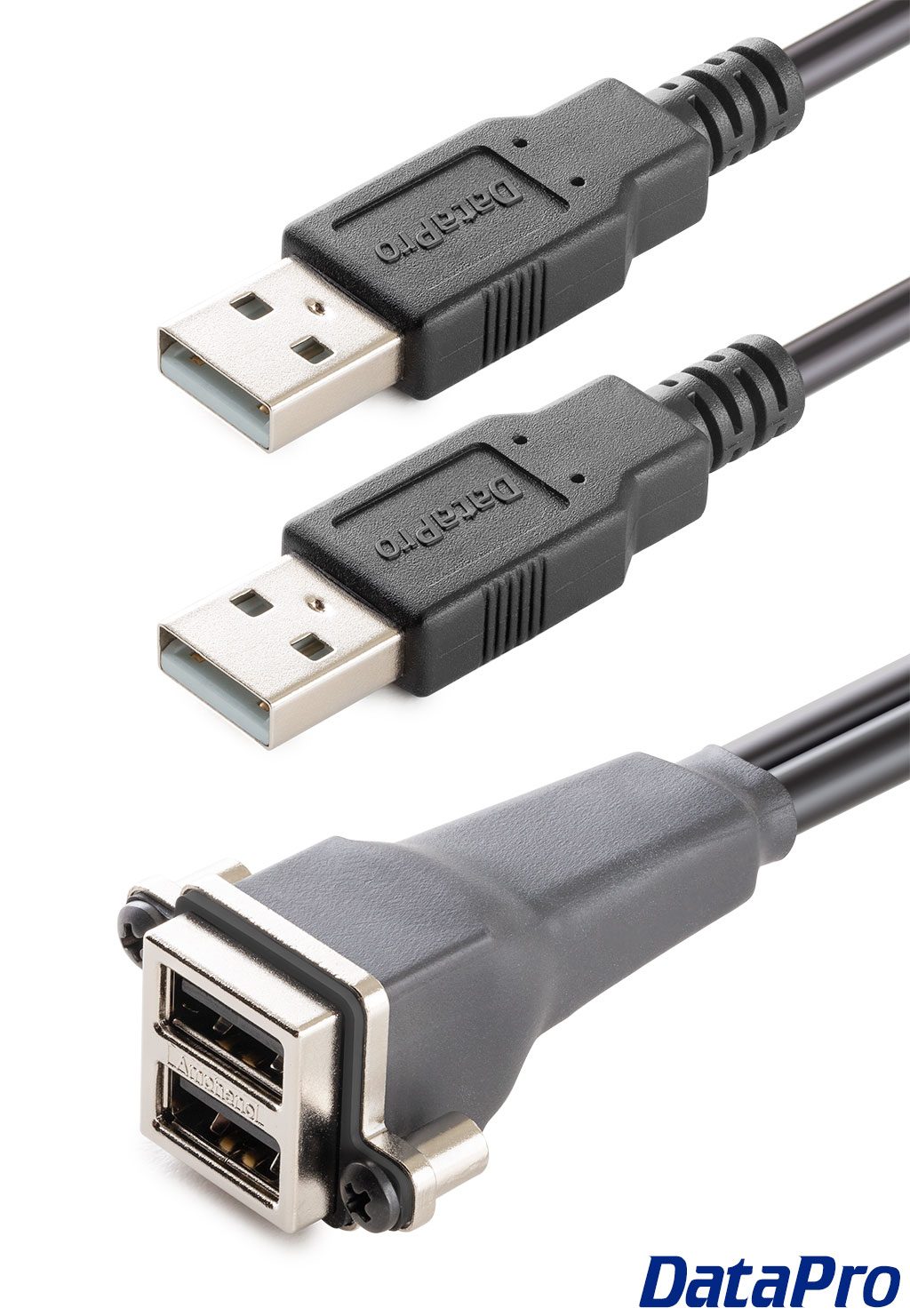

Features a single rugged IP67-rated dual USB 2.0 female connector on the panel-mount end, and splits into two male USB 2.0 Type-A connectors on the other.

1524-00W   P/M Dual USB-A 2.0 IP67 Ext.
Custom build at $75.00 + $2.00 per foot.
Some custom products may not be REACH compliant.
  Add to Cart

This ruggedized USB extension cable features a dual USB Type-A female connector on the panel-mount end, which is IP67-rated, even without a cap or cover. Splits into two USB-A male ends.

Waterproof Panel Mount USB Connector Diagram

This part's IP67 rating means it can be submerged up to 1m (3.3f). As opposed to IP68, which covers a depth greater than 1m. Perfect for extending USB ports to a flying bridge, marine dash panel, motorcycle, or anywhere else that may experience splashing and light immersion. Also useful in industrial and manufacturing applications.

Please note that if you would like to extend your USB connection more than 15 feet from source to device, you'll need to use an active USB booster cable or active USB booster.

Drawings & Models:

1524WPDF Drawing (PDF)STEP Model (STEP)

RoHS Compliant
CL2 In-Wall Rated
IPC Compliant
Made in the USA

Related Products:


  • Dual USB 2.0 socket is waterproof and dustproof even without a cover
  • Standard USB Type-A connectors
  • Custom length, available up to 15ft (more with boosters)
  • USB 1.1/2.0 High-Speed Compatible
  • Mounting hardware and gasket included


  • USB 1.1/2.0 High-Speed Compatible
  • Max speed 480 Mb/s
  • RoHS compliant
  • CL2 rated
  • IP67 rated (Submersion up to 1m, or 3.3ft)
  • Operating temperature 0-40°C (32-104°F)
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
