Panel Mount Dual USB-A 2.0 to 10-pin header


Categories:
> Panel-Mount USB-A Cables 		Panel Mount Dual USB-A 2.0 to 10-pin header

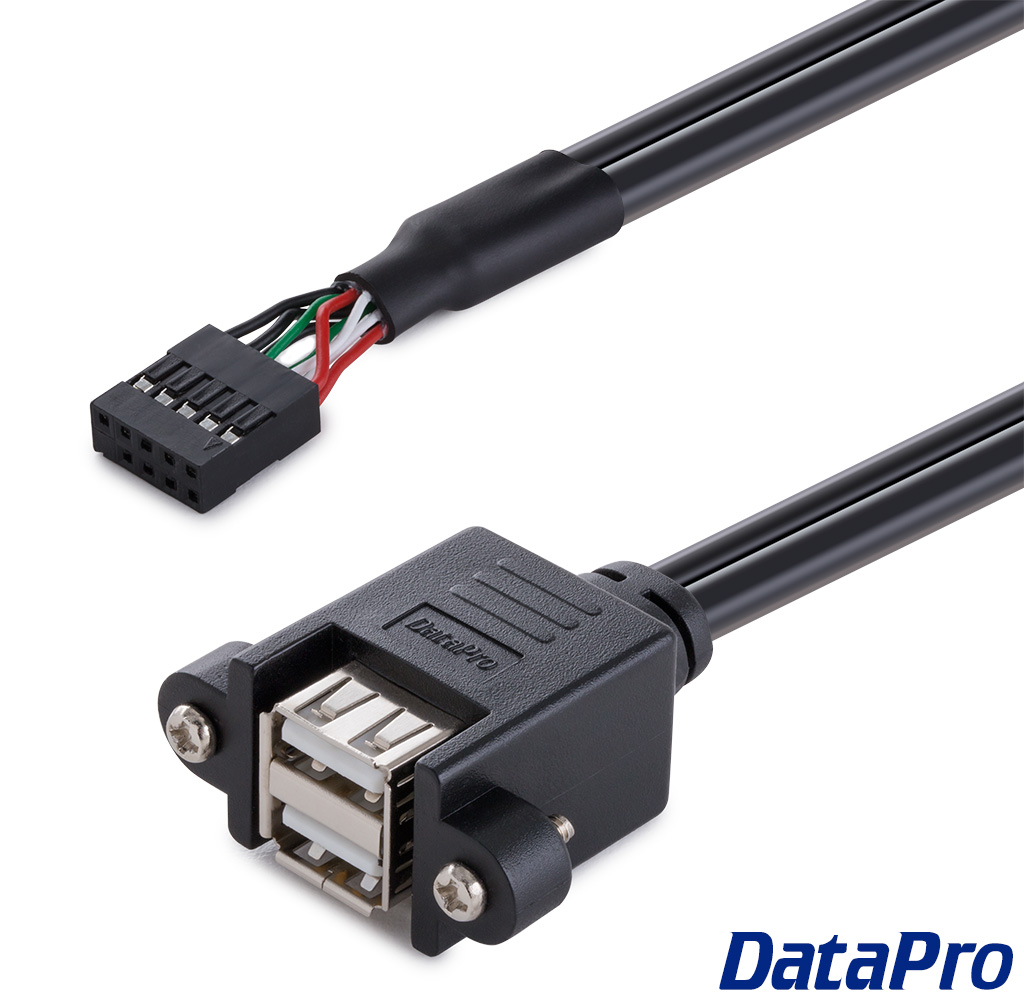

This cable features a panel-mountable dual USB 2.0 Type-A connector on one end, and a 10-pin motherboard header connector on the other.

1522-01C   USB 2.0 2x P/M A to Socket   1 ft $ 11.95   164 in stock   Add to Cart
1522-02C   USB 2.0 2x P/M A to Socket   2 ft $ 12.95   1307 in stock   Add to Cart
1522-03C   USB 2.0 2x P/M A to Socket   3 ft $ 13.95   293 in final testing!   Backorder
1522-06C   USB 2.0 2x P/M A to Socket   6 ft $ 18.95   90 in stock   Add to Cart
1522-15C   USB 2.0 2x P/M A to Socket   15 ft $ 25.95   15 in stock   Add to Cart

This cable can also be terminated with:
Optional Connectors
  • DuPont-style connectors
  • 4-Pin Polarized and Unpolarized
  • 5-Pin Polarized and Unpolarized
  • Locking
  • 4-Pin and 5-Pin JST Connectors
  • and more!
See our Custom Cables page or contact us!

This cable features a panel-mountable dual USB 2.0 Type-A connector on one end, and a 10-pin motherboard style header block connector on the other.

Great for space-limited installs, equipment enclosures, or other applications requiring a dual USB jack. Includes mounting hardware.



Dual USB-A Cutout Dimensions
PDFClick here for PDF version

Drawings & Models:

PartDownloads
1522PDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
REACH Compliant
CL2 In-Wall Rated
Related Products:

Features:

  • Panel-Mountable Dual Female USB Type-A Connector
  • CL2 rated for in-wall use
  • Includes mounting hardware
  • Gold-plated contacts

Specifications:

  • USB 1.1/2.0 High-Speed Compatible
  • Max speed 480 Mb/s
  • RoHS compliant
  • CL2 rated
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
