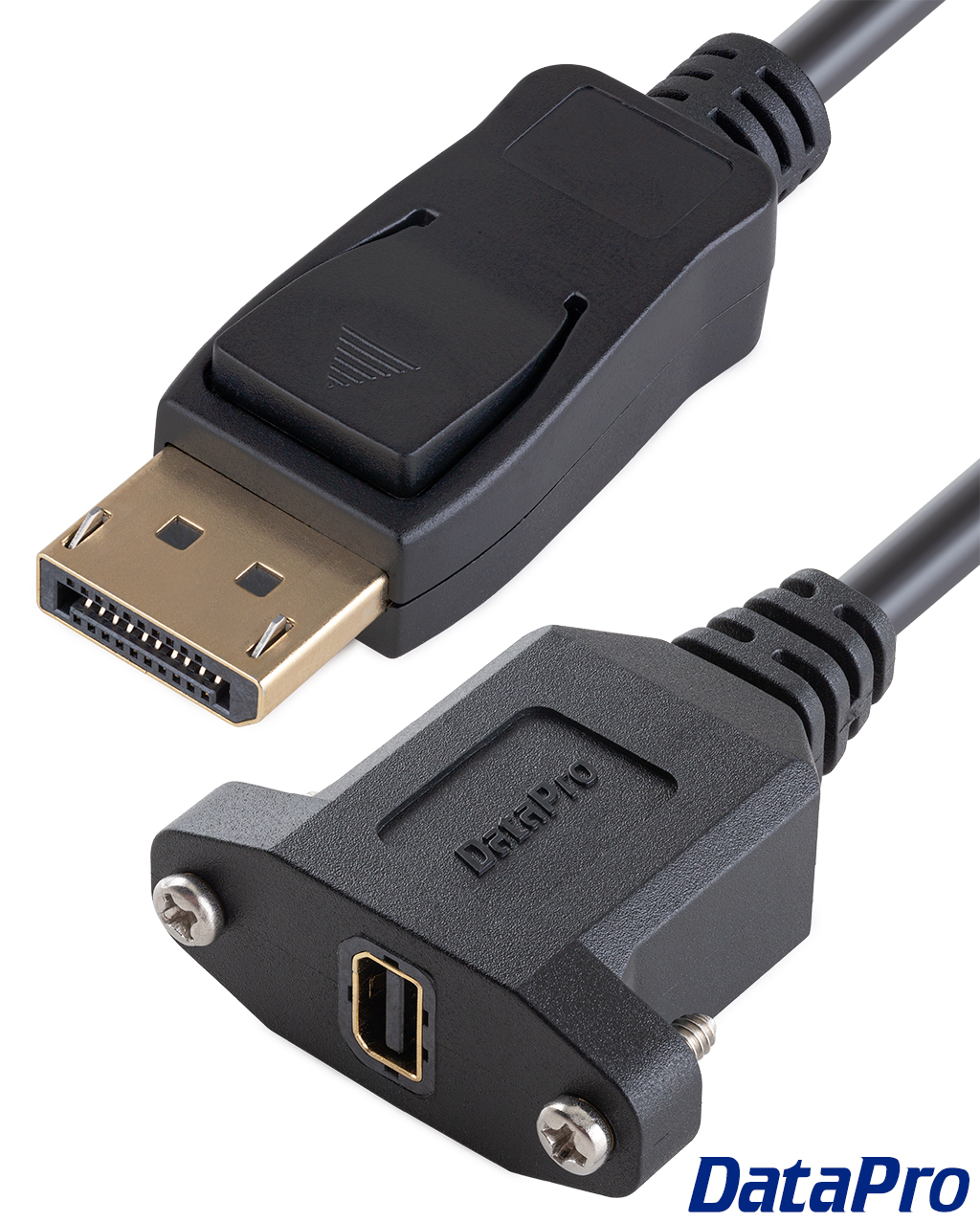

Panel Mount Mini DisplayPort to DisplayPort Cable


Categories:
> Digital Video Panel-Mount Cables, DisplayPort Cables, DisplayPort Adapters 		Panel Mount Mini DisplayPort to DisplayPort Cable
Extend Mini DisplayPort to a panel or bulkhead from a full-size DisplayPort output with this panel-mount cable.

1176-01C   Mini DisplayPort P/M to DP M   1 ft $ 34.00   331 in stock   Add to Cart
1176-02C   Mini DisplayPort P/M to DP M   2 ft $ 35.00   225 in stock   Add to Cart
1176-03C   MiniDisplayPort P/M to DP M   3 ft $ 36.00   273 in stock   Add to Cart

This panel-mount Mini DisplayPort to DisplayPort extension cable allows you to mount a Mini DisplayPort jack on any plate, panel, or bulkhead, connected to a full-size DisplayPort jack. Mini DisplayPort is commonly found on Apple computers made between 2009 and 2016, as well as some ThinkPads and Surface Pros.

DataPro's panelmount Mini DisplayPort connectors are guaranteed compatible with our Mini DisplayPort Wall Plates and anything made with our Online Plate Creator.

HDMI Cutout Dimensions
PDFClick here for PDF version

Drawings & Models:

PartDownloads
1176PDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
REACH Compliant
CL2 In-Wall Rated
2560x1600 Capable
4K UHD Capable
Related Products:

Features:

  • Panel-mountable Female Mini-DisplayPort Connector
  • CL2 rated for in-wall use
  • Includes mounting hardware
  • Gold-plated contacts
  • Shielded against RFI and EMI interference

Specifications:

  • 1x Panel-Mountable Female Mini-DisplayPort Connector
  • 1x Locking Male DisplayPort Connector
  • Supports resolutions up to 4K UHD @ 60Hz
  • Wire Gauge 30 AWG
  • RoHS Compliant
  • CL2 rated
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
