Panel Mount Mini DisplayPort Extension Cable


Categories:
> Digital Video Panel-Mount Cables, DisplayPort Cables 		Panel Mount Mini DisplayPort Extension Cable

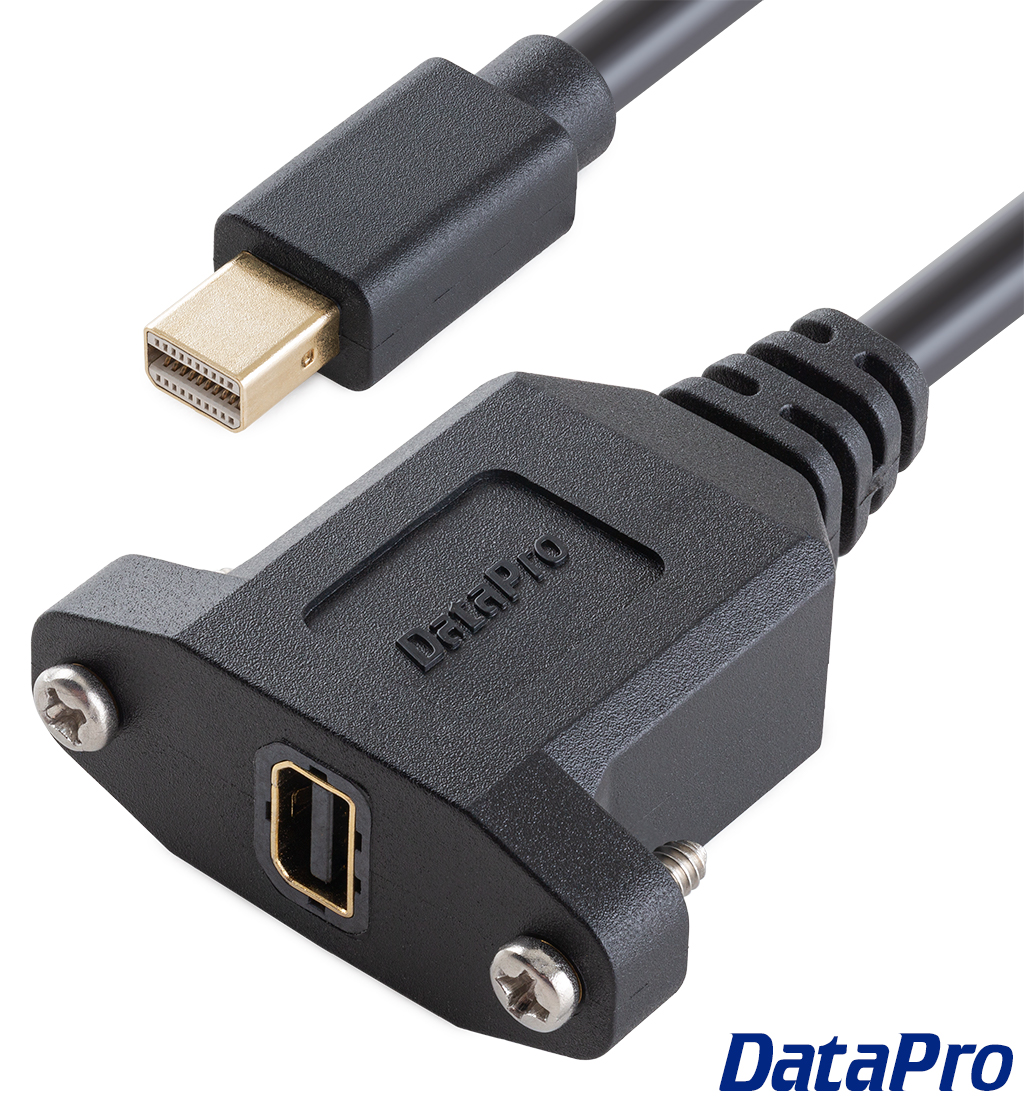

Extend Mini DisplayPort to a panel or bulkhead with this panel-mount Mini DisplayPort extension cable. Features a female Mini DisplayPort jack on the panel end, and a standard male Mini DisplayPort connector on the other.

1178-01C   Panel-Mount Mini DisplayPort   1 ft $ 31.00   393 in stock   Add to Cart
1178-02C   Panel-Mount Mini DisplayPort   2 ft $ 32.00   191 in stock   Add to Cart
1178-03C   Panel-Mount Mini DisplayPort   3 ft $ 33.00   240 in stock   Add to Cart

This panel-mount Mini DisplayPort extension cable allows you to mount a Mini DisplayPort jack on any plate, panel, or bulkhead. Mini DisplayPort is commonly found on Apple computers made between 2009 and 2016, as well as some ThinkPads and Surface Pros. CL2-rated for safe in-wall use.

DataPro's panelmount Mini DisplayPort connectors are guaranteed compatible with our Mini DisplayPort Wall Plates and anything made with our Online Plate Creator.

HDMI Cutout Dimensions
PDFClick here for PDF version

Drawings & Models:

PartDownloads
1178PDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
REACH Compliant
CL2 In-Wall Rated
2560x1600 Capable
4K UHD Capable
Related Products:

Features:

  • Panel-mountable Female Mini-DisplayPort Connector
  • CL2 rated for in-wall use
  • Includes mounting hardware
  • Gold-plated contacts
  • Shielded against RFI and EMI interference

Specifications:

  • 1x Panel-Mountable Female Mini-DisplayPort Connector
  • 1x Male Mini-DisplayPort Connector
  • Supports resolutions up to 4K UHD @ 30Hz
  • Wire Gauge 30 AWG
  • RoHS Compliant
  • CL2 rated
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
