Panel-Mount USB 3.0 Type-B to Micro-B Cable


Categories:
> Panel-Mount USB-B Cables, USB 3.0 and 3.1 Products 		Panel-Mount USB 3.0 Type-B to Micro-B Cable
Integrate USB 3.0 Type-B into your enclosure or panel with this Type-B to Micro-B cable.

1681-01C   USB 3.0 P/M B to Micro B Cable   1 ft $ 14.95   286 in stock   Add to Cart
1681-02C   USB 3.0 P/M B to Micro B Cable   2 ft $ 16.95   714 in stock   Add to Cart
1681-03C   USB 3.0 P/M B to Micro B Cable   3 ft $ 19.95   191 in stock   Add to Cart
1681-06C   USB 3.0 P/M B to Micro B Cable   6 ft $ 23.95   122 in stock   Add to Cart

In the USB environment, the squarish B-type connector is used as the USB port on peripherals and external devices: printers, scanners, cameras, hard drives, et cetera.

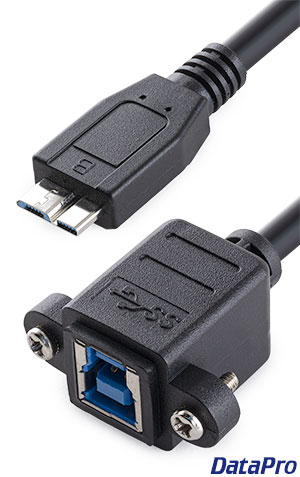

This convenient cable features a female Panel-Mount USB 3 Type-B connector on one end, and a male USB 3.0 Micro-B plug on the other.

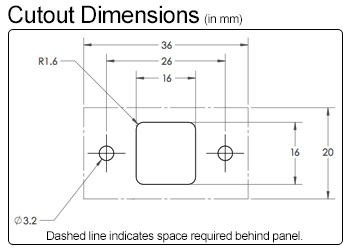

USB B Cutout Dimensions
PDFClick here for PDF version

Drawings & Models:

PartDownloads
1681PDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
REACH Compliant
CL2 In-Wall Rated
Related Products:

Features:

  • Panel-mountable Female USB 3.0 Type-B connector
  • CL2 rated for in-wall use
  • Includes mounting hardware
  • Gold-plated contacts
  • Shielded to minimize Electromagnetic / Radio Frequency Interference (EMI / RFI)

Specifications:

  • 1x Panel-Mountable Female USB 3.0 Type-B Connector
  • 1x Male USB 3.0 Type-B Micro-B Connector
  • USB 3.0, supports SuperSpeed USB 5Gb/s
  • Backwards compatible with USB 1.1/2.0
  • Aluminum/Mylar Foil Wrap + Braided Shielding
  • Wire Gauge 28 & 24 AWG
  • RoHS Compliant
  • CL2 Rated
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
