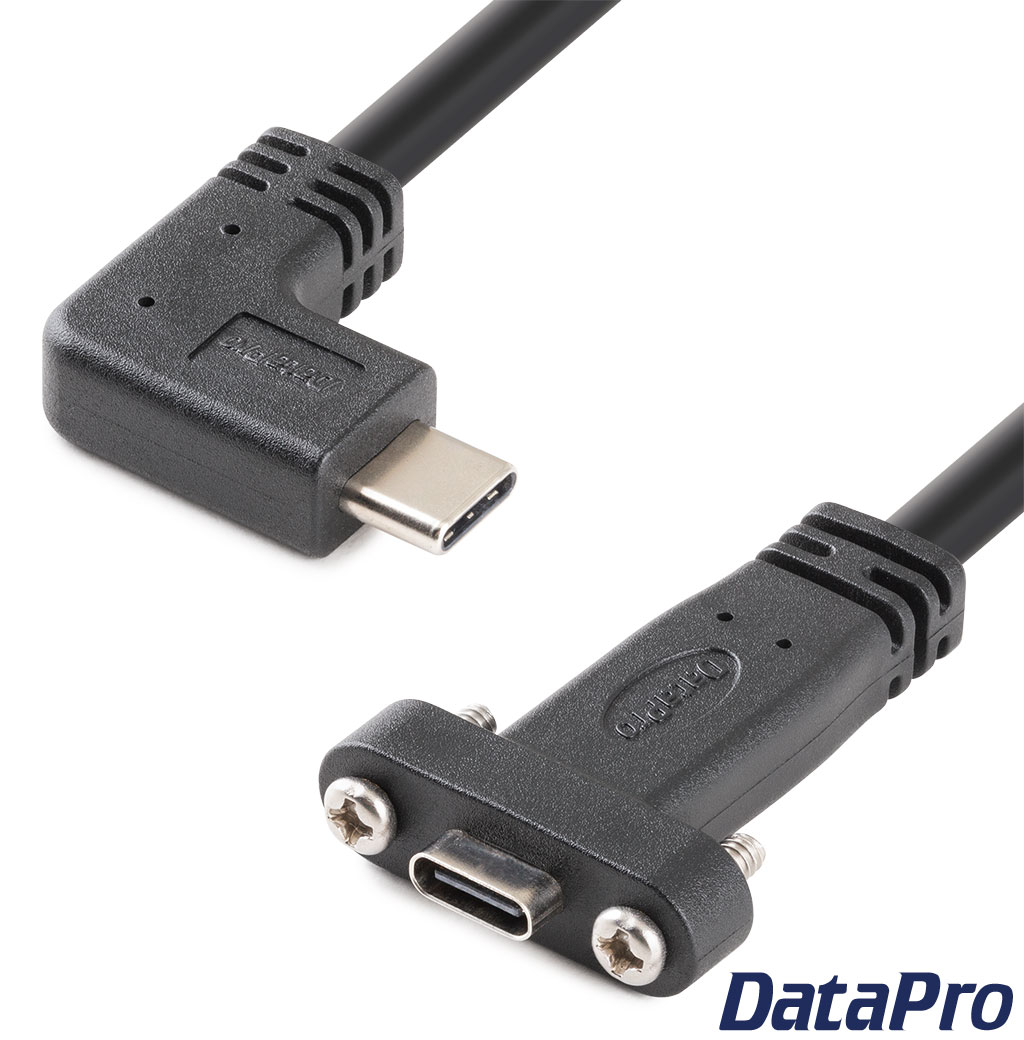

Panel Mount USB-C Extension Cable Right Angle


Categories:
> Panel-Mount USB-C Cables, USB-C Cables 		Panel Mount USB-C Extension Cable Right Angle
This panel-mount USB Type-C extension cable features a right-angle male connector, allowing for easier routing and access to low-profile areas.

1678-0006R   USB Type C P/M Ext Right Angle   6IN $ 20.45   17 in stock   Add to Cart
1678-01R   USB Type C P/M Ext Right Angle   1 ft $ 20.95   114 in stock   Add to Cart
1678-02R   USB Type C P/M Ext Right Angle   2 ft $ 22.95   80 in stock   Add to Cart
1678-03R   USB Type C P/M Ext Right Angle   3 ft $ 24.95   456 in stock   Add to Cart

This panel-mount USB Type-C extension cable features a right-angle male connector, allowing for easier routing and access to low-profile areas.

Drawings & Models:

PartDownloads
1678RPDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
REACH Compliant
4K UHD Capable
Related Products:

Features:

  • Panel-mountable Female USB Type-C connector
  • Reversible USB Type-C male right-angle connector
  • Includes mounting hardware
  • Gold-plated contacts
  • Shielded to minimize Electromagnetic / Radio Frequency Interference (EMI / RFI)
  • Supports DisplayPort, HDMI, MHL, and Analog audio Alt Modes
  • USB 4 Compatible at limited speeds

Specifications:

  • 1x Panel-Mountable Female USB Type-C Connector
  • 1x Right-Angle Male USB Type-C Connector
  • USB 3.1, supports SuperSpeed USB 10Gb/s
  • Backwards compatible with USB 1.1/2.0
  • USB Power Distribution compatible up to 100W (20V 5A)
  • Aluminum/Mylar Foil Wrap + Braided Shielding
  • Wire Gauge 30 & 28 AWG
  • RoHS Compliant
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: Hand tighten, 2.0 in-lbs maximum torque
  • USB4 Compatible at limited speeds
