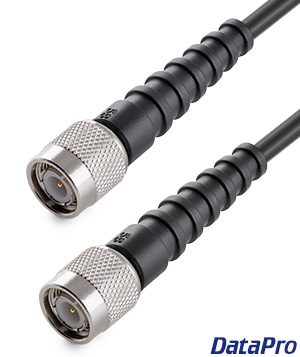

TNC to TNC Antenna Cable

Available with LMR-400! This cable can be custom built with low-loss coaxial LMR-400 cable. Contact us for details.

The DataPro 1835 series is a TNC antenna cable for connecting an antenna to a wireless network, or for connecting two TNC-equipped devices together. This cable is made with 50-Ohm RG58 wire, the ideal impedance for wireless antenna signals.

The TNC connector is a screw-locking connector that is very similar in size and appearance to the BNC connector, except that TNC uses a fine threading to lock the connectors tight while BNC uses a twist-lock latching mechanism.

While BNC is more commonly affiliated with CCTV and video transfers, and TNC affiliated with wireless antennas and WiFi networks, the connectors themselves have no restrictions and can regularly be found serving other functions.

If your need to extend an existing cable or relocate an antenna that has a fixed TNC plug, you can use a male-female TNC Extension Cable to do the job.

For more information on this and other wireless antenna connector types, please consult our RF Wireless Connector Guide.

Part	Downloads
1835	Drawing (PDF)	Model (STEP)

Features:

• Connect an antenna to a wireless network or connect two TNC-equipped devices

Specifications:

• 2x TNC, standard-polarity, male connectors
• RG-58U 20 AWG wire
