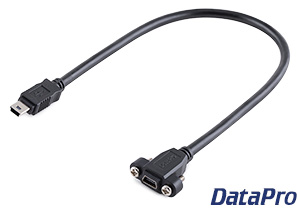

USB Mini B Panel Mount Extension Cable M-F


Categories:
> Panel-Mount USB-B Cables, USB Panel-Mount Cables, USB 2.0 Cables 		USB Mini B Panel Mount Extension Cable M-F
This panel-mount USB Mini-B cable provides a female mini USB port on the panel side, and a male connector on the other.

1583-01C   USB Mini B Panel-Mount Ext.   1 ft $ 10.95   495 in stock   Add to Cart
1583-02C   USB Mini B Panel-Mount Ext.   2 ft $ 11.95   418 in stock   Add to Cart
1583-03C   USB Mini B Panel-Mount Ext.   3 ft $ 12.95   411 in stock   Add to Cart
1583-06C   USB Mini B Panel-Mount Ext.   6 ft $ 16.95   611 in stock   Add to Cart
1583-10C   USB Mini B Panel-Mount Ext.   10 ft $ 21.95   408 in stock   Add to Cart
1583-15C   USB Mini B Panel-Mount Ext.   15 ft $ 32.95   70 in stock   Add to Cart

This panel-mount USB Mini-B cable provides a female mini USB port on the panel side, and a male connector on the other. Perfect for testing stations, bridges, cockpits, and instrument panels.

Drawings & Models:

PartDownloads
1583PDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
REACH Compliant
CL2 In-Wall Rated
Related Products:

Features:

  • Panel-Mountable Female USB Type Mini-B Connector
  • CL2 rated for in-wall use
  • Includes mounting hardware
  • Gold-plated contacts

Specifications:

  • USB 1.1/2.0 High-Speed Compatible
  • Max speed 480 Mb/s
  • RoHS compliant
  • CL2 rated
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
