Panel Mount USB-A to 5-pin Unpolarized Socket


Categories:
> Panel-Mount USB-A Cables, USB Panel-Mount Cables 		Panel Mount USB-A to 5-pin Unpolarized Socket

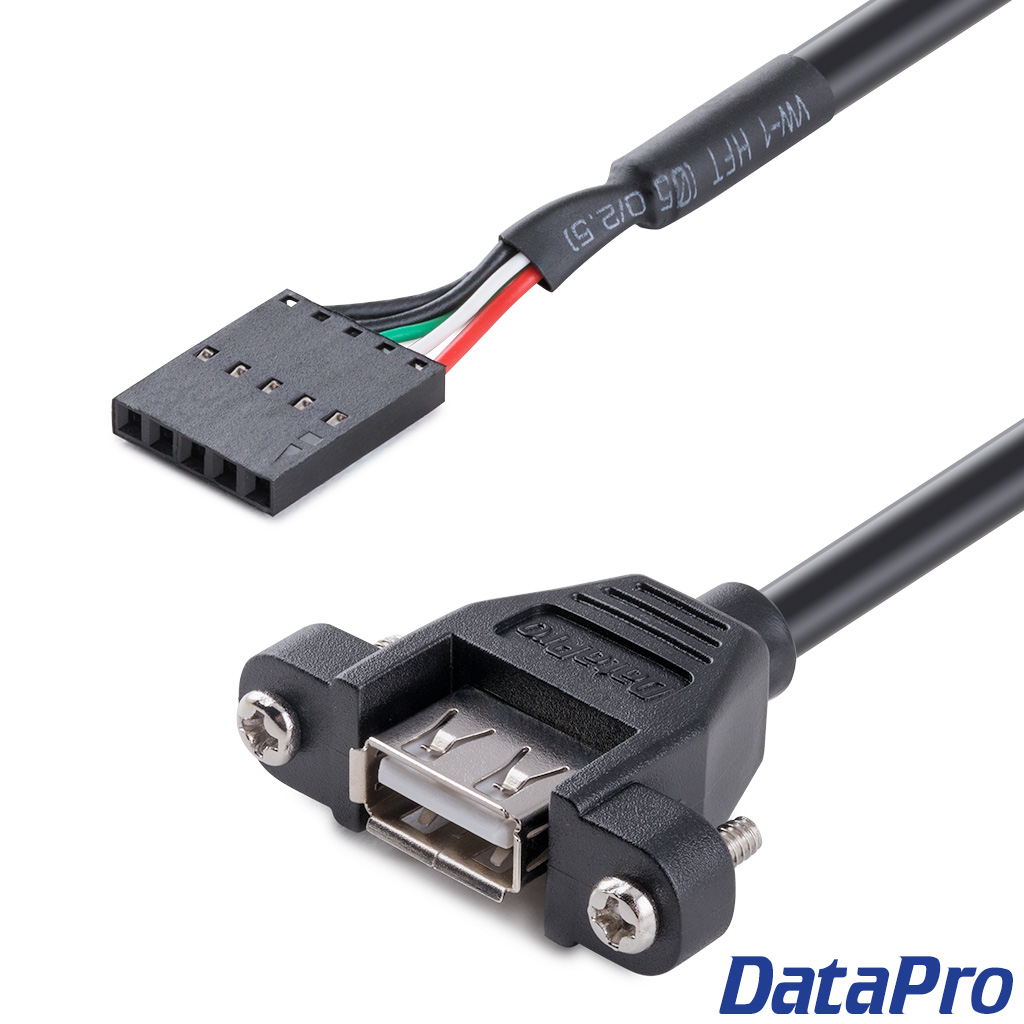

This cable features a panel-mount USB Type-A port on one end, and an unpolarized 5-pin motherboard style socket header on the other.

1560-01C   USB P/M A to Socket Non-Polar   1 ft $ 9.95   922 in stock   Add to Cart

Technical Documents

Download Drawing
Download 3D Model

This cable can also be terminated with:
Optional Connectors
  • DuPont-style connectors
  • 4-Pin Polarized and Unpolarized
  • 5-Pin Polarized and Unpolarized
  • Locking
  • 4-Pin and 5-Pin JST Connectors
  • and more!
See our Custom Cables page or contact us!
This cable features a panel-mount USB Type-A port on one end, and an unpolarized 5-pin motherboard style socket header on the other. For the polarized version of this, see our 1590 Panel-Mount USB to Polarized 5-Pin.


REACH Compliant
CL2 In-Wall Rated
Related Products:

Features:

  • Panel-Mountable Female USB Type-A Connector
  • CL2 rated for in-wall use
  • Includes mounting hardware
  • Gold-plated contacts

Specifications:

  • USB 1.1/2.0 High-Speed Compatible
  • Max speed 480 Mb/s
  • RoHS compliant
  • CL2 rated
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
