Non-Term VGA Spliced Dual Panel-Mount Cable

> Spliced VGA Cables, VGA Panel-Mount Cables
Non-Term VGA Spliced Dual Panel-Mount Cable
Connect two faceplates or bulkheads directly—through walls, ceilings, and more! This special non-term VGA cable uses our breakaway splice for narrow conduit, and features low-profile panel-mount VGA connectors on both ends for quick and secure installation.

1157-00C   VGA Spliced Dual Panel-Mount
Custom build at $35.00 + $1.50 per foot.
Some custom products may not be REACH compliant.
  Add to Cart

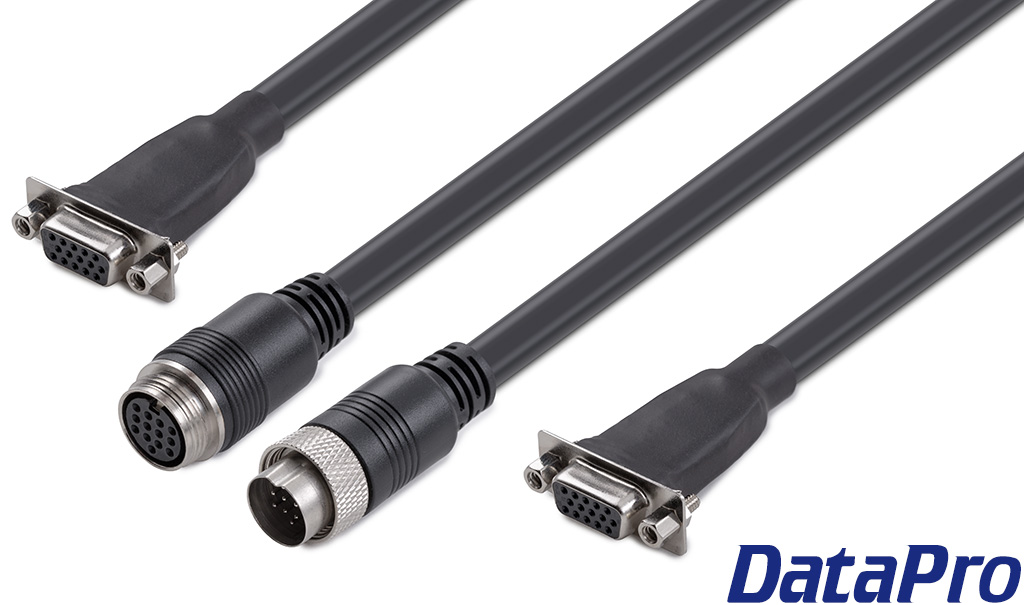

The DataPro VGA Dual Panel-Mount cable will connect two mounting receptacles, such as face plates or bulkhead panels, through conduit or tight quarters. The completed assembly features two female VGA connectors with DataPro's unique panel-mounting hood, ideal for low-profile installation.

The mounting VGA connectors are standard 15-pin High-Density D-Sub connectors, but without the bulky backshells of normal assemblies. They include mounting screws and nuts, and will fasten securely to any cutout or panel of the appropriate design, including any of our custom wall plates.

This cable assembly includes a breakaway splice using mating DIN connectors, so that the long portion of the cable can be pulled through a conduit as small as an inch in diameter, then reconnected with no soldering or termination by the installer. With a press and a twist, the complete VGA assembly is terminated and ready for video. Easy peasy!

This is the same cable as our spliced VGA panel-mount extension, except that the both ends have been converted to a panel-mountable connector and include the long jack-screws needed for mounting to a face plate or bulkhead

The cable is made of 75 Ohm video-grade coaxial wire, triple-shielded with separate drain wires for the Red, Green, and Blue data lines. This low-loss cable allows lengths of up to 200 feet in most cases, with good strength and fidelity.

For information about selecting, installing, and using wall plates in your applications, see our Guide to Face Plates and Panel-Mount Cables.

Please note that the splice connector does not conduct the ID and DDC channels (pins 5 and 9) of the VGA signal. Most computer monitors have no issue with this, but some television and projector models cannot detect a signal without these channels.

Drawings & Models:

1157PDF Drawing (PDF)STEP Model (STEP)

RoHS Compliant
REACH Compliant
CL2 In-Wall Rated
IPC Compliant

Related Products:


  • Two panel mountable female VGA Connectors
  • Includes mounting hardware
  • CL2 rated for in-wall use
  • Gold-plated contacts
  • Low-loss cable allows lengths of up to 200 feet in most cases, with good strength and fidelity.
  • Splice connector fits through 3/4" (19mm) diameter conduit.


    • 2x Panel Mountable Female DH15 VGA Connectors
    • 1x Male Circular 13 Pin Connector
    • 1x Female Circular 13 Pin Connector
    • Splice connector diameter: 0.72" (18.3mm)
    • Wire Gauge 28 & 24 AWG
    • RoHS Compliant
    • CL2 Rated
    • Made of 75 Ohm video-grade coaxial wire
    • Triple-shielded mini-coax wire
    • Aluminum/Mylar Foil Wrap + Braided Shielding and Drain Wire
    • Includes removable male-female threaded hex standoffs for mounting
    • Allowable panel depth:
      • 1.5mm (full mating)
      • 2.0mm (max recommended)
