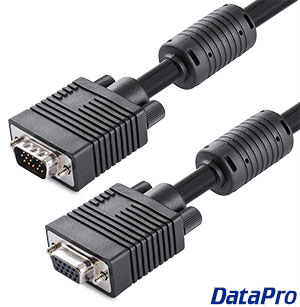

14-Pin VGA Legacy Extension Cable M-F


Categories:
> VGA Cables
14-Pin VGA Legacy Extension Cable M-F
This cable is identical to our 1150 VGA Cable, but is missing Pin 9. This is necessary for compatibility with some types of older hardware.

1050-03C   SVGA Video Cable M-F, No Pin 9   3 ft $ 9.95   45 in stock   Add to Cart
1050-06C   SVGA Video Cable M-F, No Pin 9   6 ft $ 11.95   8 in stock   Add to Cart
1050-10C   SVGA Video Cable M-F, No Pin 9   10 ft $ 19.95   21 in stock   Add to Cart
1050-25C   SVGA Video Cable M-F, No Pin 9   25 ft $ 39.00   12 in stock   Add to Cart
1050-50C   SVGA Video Cable M-F, No Pin 9   50 ft $ 59.00   7 in stock   Add to Cart
1050-75C   SVGA Video Cable M-F, No Pin 9   75 ft $ 79.00   6 in stock   Add to Cart
1050-99C   SVGA Video Cable M-F, No Pin 9   100 ft $ 119.00   3 in stock   Add to Cart
1050-00C   SVGA Video Cable, No Pin 9
Custom build at $35.00 + $1.50 per foot.
Some custom products may not be REACH compliant.
  Add to Cart

Technical Documents

Download Drawing

This cable is identical to our 1150 VGA Cable, but is missing Pin 9.  This is necessary for compatibility with some types of older hardware.

All of our VGA cables are built using triple-shielded mini-coaxial wire, so the Red, Green, and Blue signals are individually insulated and shielded. The signal wires are 75 Ohm 28 AWG coax, which is the ideal spec for video and allows us to build cables in excess of 200 feet long.


RoHS Compliant
REACH Compliant
IPC Compliant

Related Products:

Features:

  • Gold-plated contacts
  • Low-loss cable allows lengths of up to 200 feet in most cases, with good strength and fidelity.


    Specifications:

    • 1x Female DH15 VGA Connector
    • 1x Male DH15 VGA Connector, No Pin #9
    • Wire Gauge 28 & 24 AWG
    • RoHS Compliant
    • CL2 Rated
    • Made of 75 Ohm video-grade coaxial wire
    • Triple-shielded mini-coax wire
    • 2x ferrite cores
