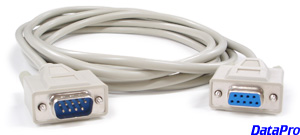

DB09F to DB09M RS232 Extension


Extend a 9-pin, DB09F to DB09M connection, such as a serial cable to a PC COM port to a mouse, modem, printer, or other RS232 device.

1120-03C   DB09F to DB09M RS232 Extension   3 ft $ 13.95   24 in stock   Add to Cart
1120-06C   DB09F to DB09M RS232 Extension   6 ft $ 19.95   95 in stock   Add to Cart
1120-10C   DB09F to DB09M RS232 Extension   10 ft $ 29.95   28 in stock   Add to Cart
1120-15C   DB09F to DB09M RS232 Extension   15 ft $ 33.95   19 in stock   Add to Cart
1120-25C   DB09F to DB09M RS232 Extension   25 ft $ 39.00   35 in stock   Add to Cart

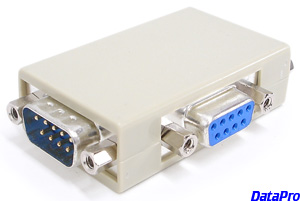

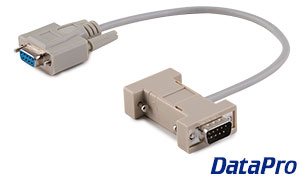

1120-FMM   RS232 Splitter Adaptor F-M-M   EACH $ 29.95 Ships in 2 weeks   Add to Cart
1120-MFF   RS232 Splitter Adaptor M-F-F   EACH $ 29.95   1 in stock   Add to Cart
1120-00C   DB09F to DB09M RS232 Extension
Custom build at $25.00 + $0.60 per foot.
Some custom products may not be REACH compliant.
  Add to Cart

Technical Documents

Download Drawing

Download 3D Model

The DataPro 1120 series is a 9-pin, DB09F to DB09M extension cable. All 9 conductors are connected straight-through, pin-to-pin.

This is most commonly used to extend a serial cable from a PC COM port to RS232 device, but can also extend a 9-pin video connection. The video signal types that use a 9-pin connection include CGA, EGA, MGA Monochrome, Hercules, and older VGA or Multisync (aka Multiscan) monitors.

9-pin cables are capable of carrying a number of different communication standards, so we do not restrict the maximum length of custom 9-pin cables when ordering. Please note however that we do not accept returns of custom products, and recommend verifying that the specified length will work for your intended application and standard before ordering. RS-232 has a maximum recommended cable length of 50ft (15m), while RS-422, RS-423, and RS-485 can reach as far as 3900ft (1200m) at reduced speeds.


RoHS Compliant
REACH Compliant

Related Products:

Features:

  • Extend a 9-pin, DB09F to DB09M connection


Specifications:

  • 1x DB09, 9-pin male connector
  • 1x DB09, 9-pin female connector
  • Nickel-plated shell, gold-plated contacts
  • Wire Gauge: 26 AWG
  • Plastic overmold with strain relief
