DB9 Serial Panel-Mount Female Extension


Categories:
> Serial Cables, Serial & Parallel Panel-Mount Cables
DB9 Serial Panel-Mount Female Extension


1122-01C   D09 Panel-Mount F to M Ext.   1 ft $ 15.95   554 in stock   Add to Cart
1122-02C   D09 Panel-Mount F to M Ext.   2 ft $ 16.95   598 in stock   Add to Cart
1122-03C   D09 Panel-Mount F to M Ext.   3 ft $ 17.95   166 in stock   Add to Cart
1122-04C   D09 Panel-Mount F to M Ext.   4 ft $ 18.95   358 in stock   Add to Cart
1122-06C   D09 Panel-Mount F to M Ext.   6 ft $ 19.95   264 in stock   Add to Cart
1122-10C   D09 Panel-Mount F to M Ext.   10 ft $ 29.95   139 in stock   Add to Cart
1122-15C   D09 Panel-Mount F to M Ext.   15 ft $ 34.95   132 in stock   Add to Cart
1122-25C   D09 Panel-Mount F to M Ext.   25 ft $ 44.95   113 in stock   Add to Cart
1122-00C   D09 Panel-Mount F to M Ext.
Custom build at $30.00 + $1.00 per foot.
  Add to Cart

Technical documents are available upon request for authorized usage.

Contact us if you require drawings or 3D models to integrate this product into your project.

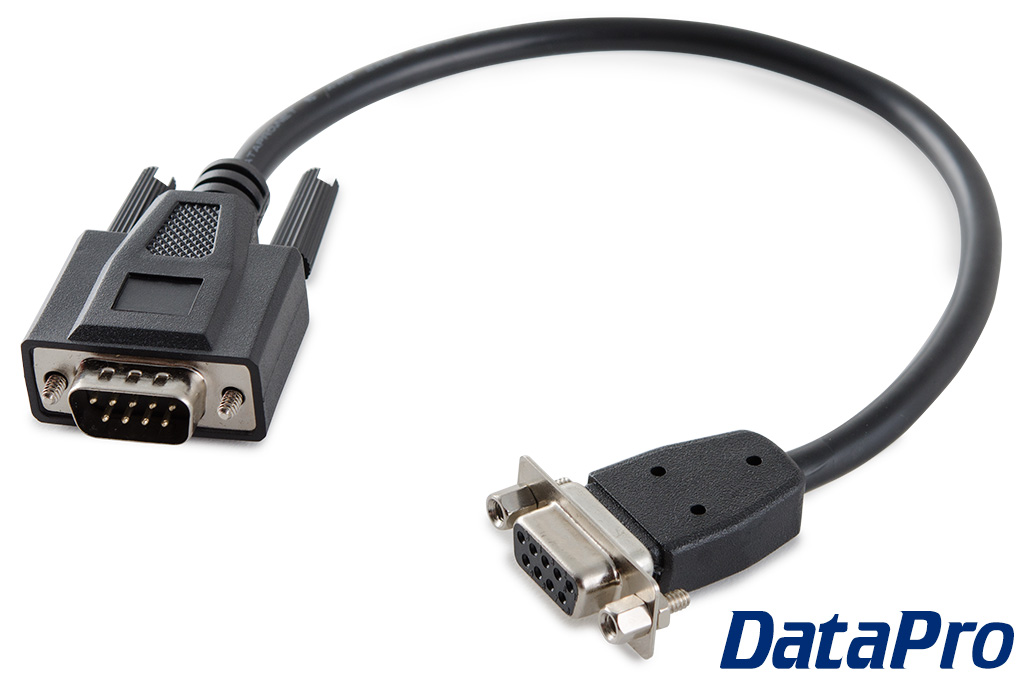

The DataPro 1122 series cable is a 9-pin extension cable, male to female, with a panel-mount connector on the female end for mounting into a faceplate or wallplate.

It is commonly used to extend a 9-pin cable from a computer to a 9-pin interface device. The 1122 series features a panel-mount FEMALE connector, but most serial RS232 is designed to plug into a MALE connector. To mount a male 9-pin port, see our RS232 Panel-Mount Extension Cable.

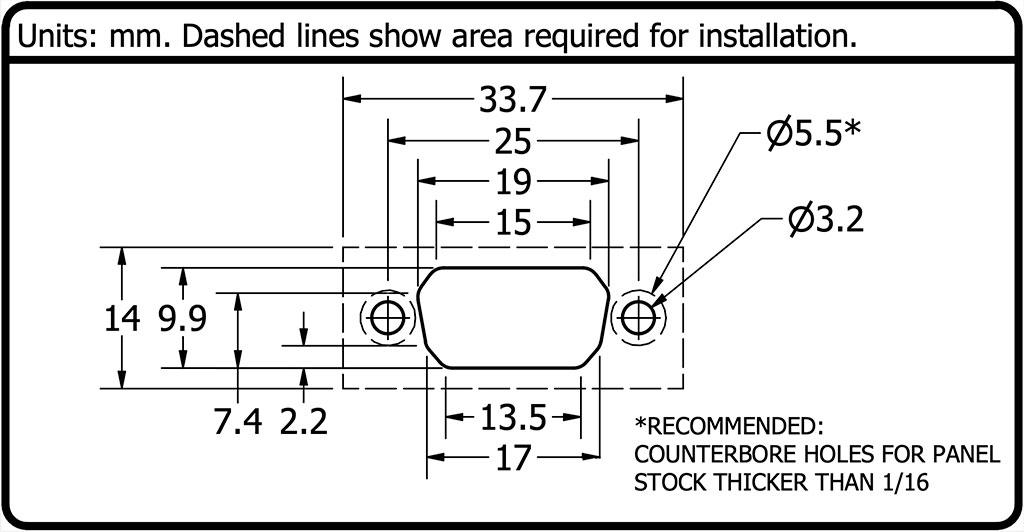

This cable is designed to mount securely into any of our DataPro faceplates, and uses the same size of hole as a 15-pin VGA connector. For a single DB09 plate, see our 9-pin face plate.

The wiring diagram is all 9 conductors connected straight-through, pin-to-pin.

We also build this cable in any length you require. We have built this cable in excess of 20 feet for video applications and 250 feet for RS232 serial applications. These lengths will vary depending on the quality of your communications equipment.


Click here for PDF version
