Panel Mount USB 2.0 Micro-B to 5-pin Header Cable


Categories:
> Panel-Mount Micro USB-B Cables, USB 2.0 Cables 		Panel Mount USB 2.0 Micro-B to 5-pin Header Cable

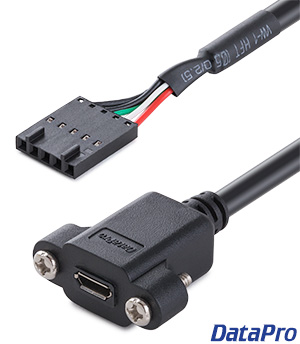

This panel-mount USB 2.0 Micro B cable terminates in a polarized 5-pin header connector.

1550-01C   USB Micro B P/M Ext. to Header   1 ft $ 17.95   31 in stock   Add to Cart
1550-02C   USB Micro B P/M Ext. to Header   2 ft $ 18.95   7 in stock   Add to Cart
1550-03C   USB Micro B P/M Ext. to Header   3 ft $ 19.95   8 in stock   Add to Cart
1550-00C   USB Micro B P/M Ext. to Header
Custom build at $21.13 + $1.00 per foot.
Some custom products may not be REACH compliant.		   Add to Cart

This cable can also be terminated with:
Optional Connectors
  • DuPont-style connectors
  • 4-Pin Polarized and Unpolarized
  • 5-Pin Polarized and Unpolarized
  • Locking
  • 4-Pin and 5-Pin JST Connectors
  • and more!
See our Custom Cables page or contact us!

This panel-mount USB 2.0 Micro B cable terminates in a polarized 5-pin DuPont style motherboard header connector. Includes 4-40 Phillips screws for mounting.

Perfect for adding a micro-b port to an case, enclosure, or backplane. CL-2 rated for in-wall use.

USB Micro-B Cutout Dimensions
PDFClick here for PDF version

Drawings & Models:

PartDownloads
1550PDF Drawing (PDF)


RoHS Compliant
REACH Compliant
CL2 In-Wall Rated
Related Products:

Features:

  • Panel-Mountable female USB Type Micro-B Connector
  • 5-pin DuPont style rectangular connector
  • CL2 rated for in-wall use
  • Includes mounting hardware
  • Gold-plated contacts

Specifications:

  • USB 1.1/2.0 High-Speed Compatible
  • Max speed 480 Mb/s
  • RoHS compliant
  • CL2 rated
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
