Wall Plate Mounting Bracket


Categories:
> Mounts & Boxes
Wall Plate Mounting Bracket


When installing wall plates on thin or non-structural surfaces, a mounting bracket like this can provide a stable frame for an easy and solid mount!

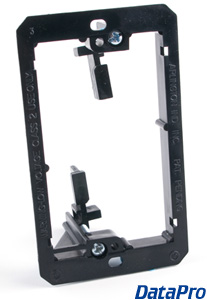

80-611   Faceplate Mounting Bracket   1G $ 5.95   48 in stock   Add to Cart

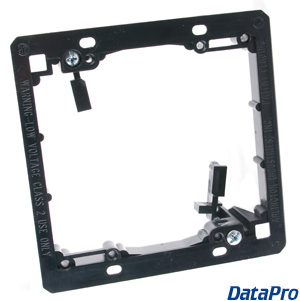

80-612   Faceplate Mounting Bracket   2G $ 6.95   42 in stock   Add to Cart

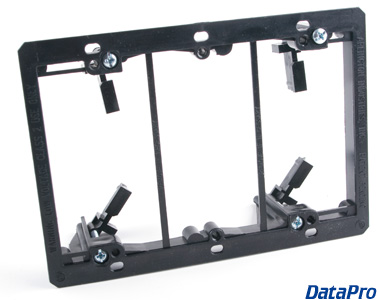

80-613   Faceplate Mounting Bracket   3G $ 7.95   19 in stock   Add to Cart

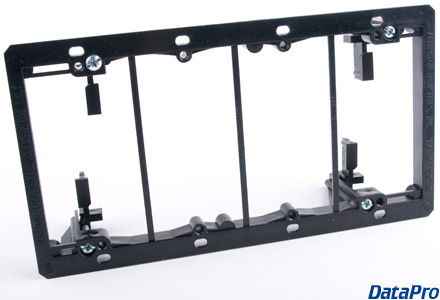

80-614   Faceplate Mounting Bracket   4G $ 9.95   3 in stock   Add to Cart

DataPro's mounting brackets are an easy solution to mounting standard low-voltage boxes and wall plates in non-structural materials such as drywall, paneling, or wallboard. These non-conductive plastic frames are durable and easy to install, adjustable for mounting in a surface between 1/4" and 1" thick.

When a hole of the appropriate size has been cut into the desired mounting surface, these brackets rest flush with the surface and have latching tabs that rotate behind and press firmly against the rear side of the surface. Once compressed (with a quick turning of the tightening-screws), this bracket provides a stable frame with pre-set holes for mounting wall plates, light switch covers, and outlets.


Specifications:

  • Non-conductive, smooth plastic construction
  • Adjusts to fit 1/4" to 1" thick mounting surface
  • CAT 6 listed
  • Bracket shape doubles as cutout template
  • For LOW VOLTAGE Class 2 environments
