Antenna Cable SMA to N-Type


Categories:
> Wireless Antenna Cables
Antenna Cable SMA to N-Type


1854-03C   Antenna Cable SMA to N-Type   3 ft $ 19.95   6 in stock   Add to Cart
1854-06C   Antenna Cable SMA to N-Type   6 ft $ 23.95   20 in stock   Add to Cart
1854-10C   Antenna Cable SMA to N-Type   10 ft $ 29.95   1 in stock   Add to Cart
1854-15C   Antenna Cable SMA to N-Type   15 ft $ 35.00   6 in stock   Add to Cart
1854-25C   Antenna Cable SMA to N-Type   25 ft $ 45.00   3 in stock   Add to Cart
1854-00C   Antenna Cable SMA to N-Type
Custom build at $25.00 + $1.00 per foot.
Some custom products may not be REACH compliant.
  Add to Cart

Technical Documents

Download Drawing

The 1854 series is a wireless antenna extension cable, typically used to place an 802.11 antenna at a distance from it's hardware.

For example, if you have a workstation with a PCI wireless card, but get poor WiFi reception; or if you host a network in your lobby, but have trouble reaching to the farthest corners; this cable will allow you to separate the broadcast antenna from the card or router it's attached to, and place it where you'd like.

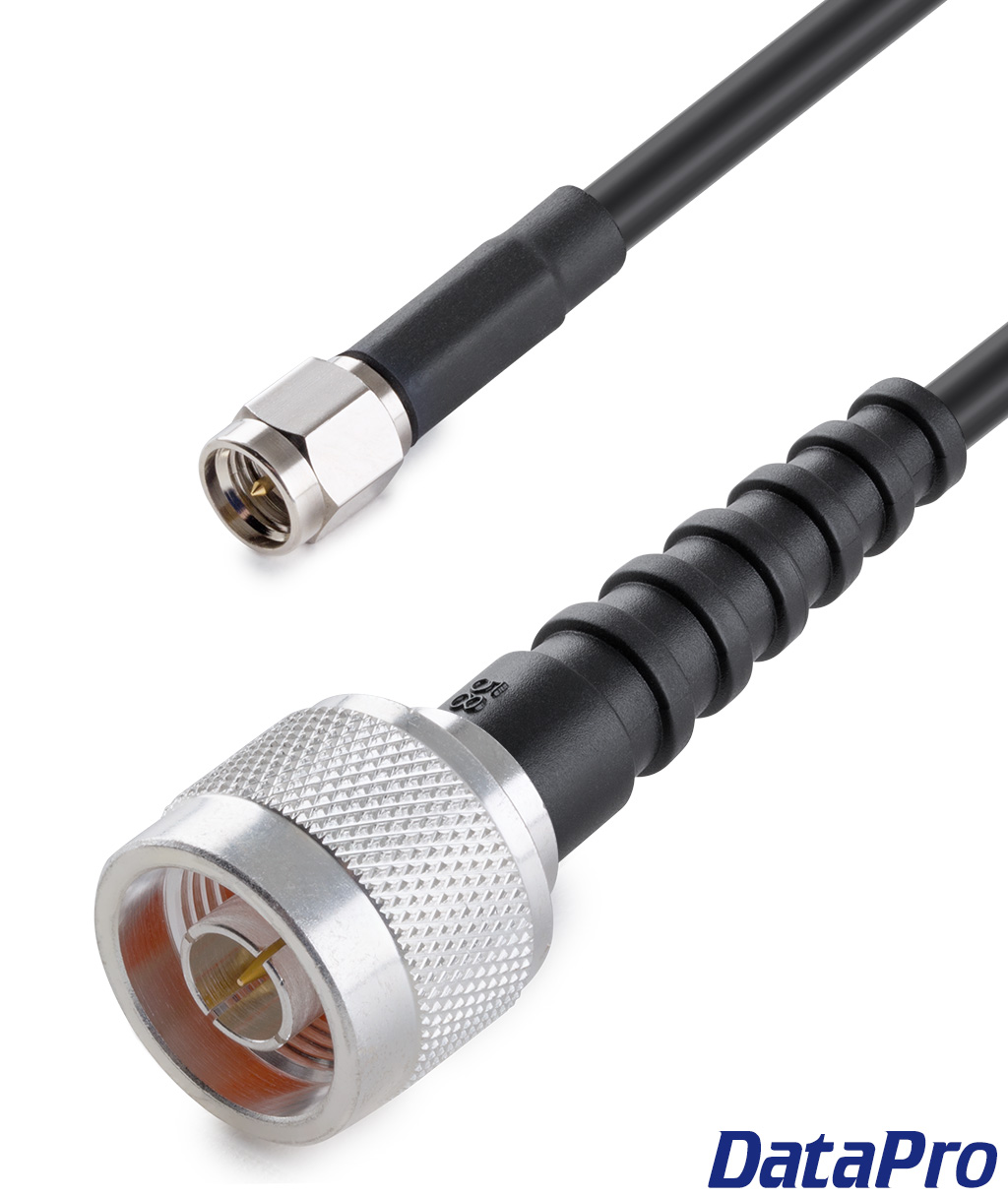

The 1854 series features a standard-polarity SMA male connector on one end and a male N-Type connector on the other. SMA is a small connection typically found on commercial-grade routers and extenders; N-Type is a large connection typically found on Omni/Yagi antennas and larger equipment.

It's built from RG-58 coaxial wire for shielding and signal strength, and has a nominal impedance of 50 Ohms. This is the ideal type of wire for wireless signals, which is a curious thing to say but it makes  sense if you think about it.

We can custom-build this cable in any length you request.

For an extension cable instead of a male-to-male cable,  see our N-Type Extension Cable  or SMA Extension Cable.

Please note that this cable uses STANDARD POLARITY SMA, which is not compatible with the REVERSE POLARITY SMA found on most consumer-grade wireless electronics. For more information on this and other wireless antenna connector types, please consult our RF Wireless Connector Guide.


RoHS Compliant
IPC Compliant
Made in the USA
