Panel Mount USB-C to 20 Pin Header


Categories:
> Panel-Mount USB-C Cables, USB-C Cables, USB 3.0 and 3.1 Products 		Panel Mount USB-C to 20 Pin Header
Panel-Mount USB Type-C to 20-pin motherboard connector header.

1670-01C   USB-C P/M to 20-pin Socket   1 ft $ 15.95   155 in stock   Add to Cart
1670-02C   USB-C P/M to 20-pin Socket   2 ft $ 16.95   104 in stock   Add to Cart
1670-03C   USB-C P/M to 20-pin Socket   3 ft $ 18.95   142 in stock   Add to Cart

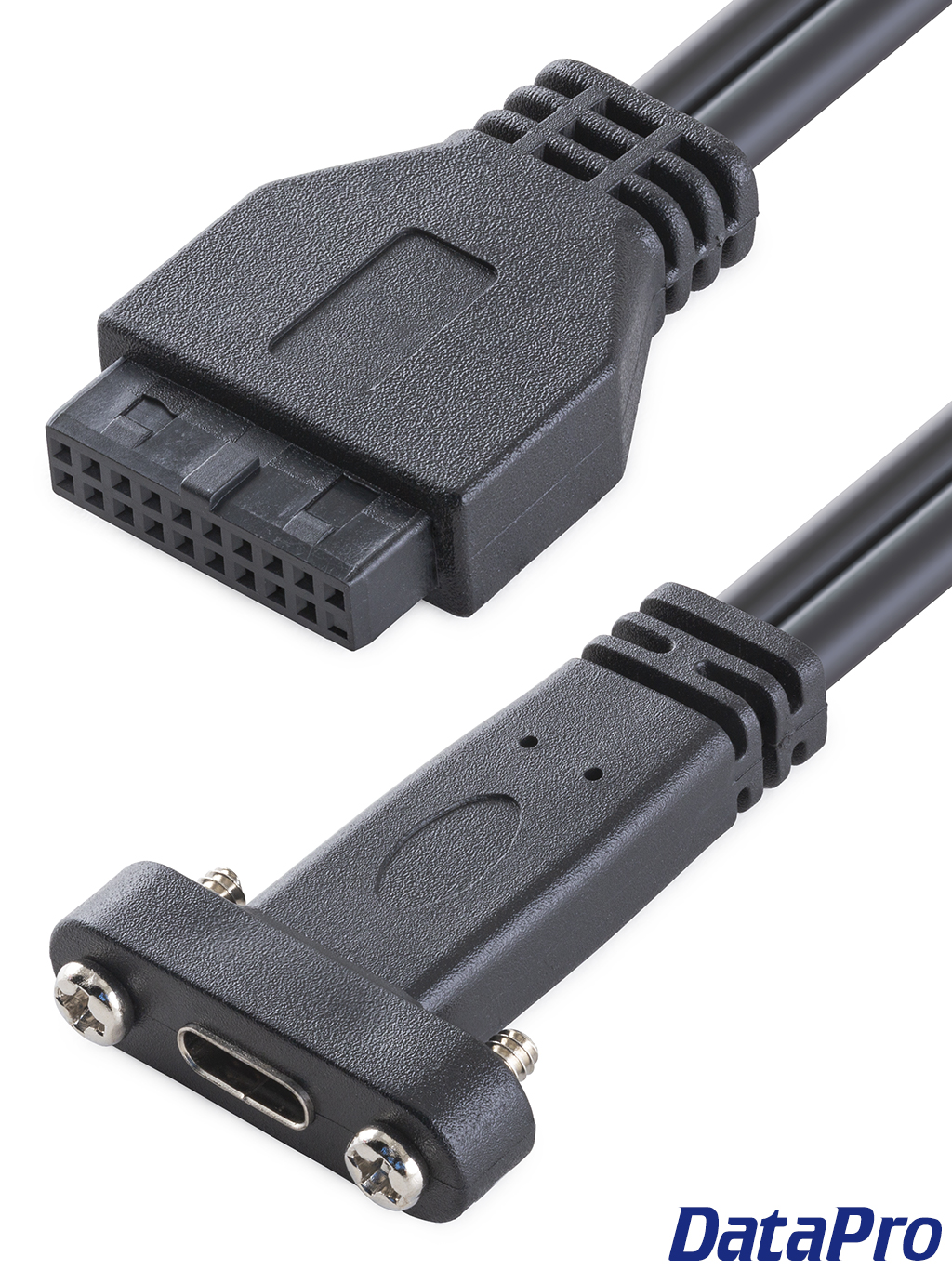

This panel-mount USB Type-C cable features a female USB-C jack on the panel-mount end, and a female 20-pin motherboard header connector on the other.




USB-C Cutout Dimensions
PDFClick here for PDF version

Drawings & Models:

PartDownloads
1670PDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
REACH Compliant
Related Products:

Features:

  • Panel-mountable Female USB Type-C Connector
  • CL2 rated for in-wall use
  • Includes mounting hardware
  • Gold-plated contacts
  • Shielded to minimize Electromagnetic / Radio Frequency Interference (EMI / RFI)

Specifications:

  • 1x Panel-Mountable Female USB Type-C Connector
  • 1x 20-Pin Female Motherboard Header
  • USB 3, supports SuperSpeed USB 5Gb/s
  • Backwards compatible with USB 1.1/2.0
  • Aluminum/Mylar Foil Wrap + Braided Shielding
  • Wire Gauge 30 & 24 AWG
  • RoHS Compliant
  • CL2 Rated
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: hand tighten, 2.0 in-lbs maximum torque
