SCSI Ultra-320 LVD+SE Ribbon Cable

SCSI Ultra-320 LVD+SE Ribbon Cable

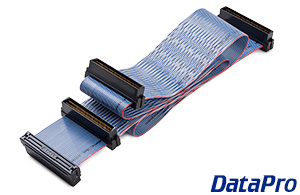

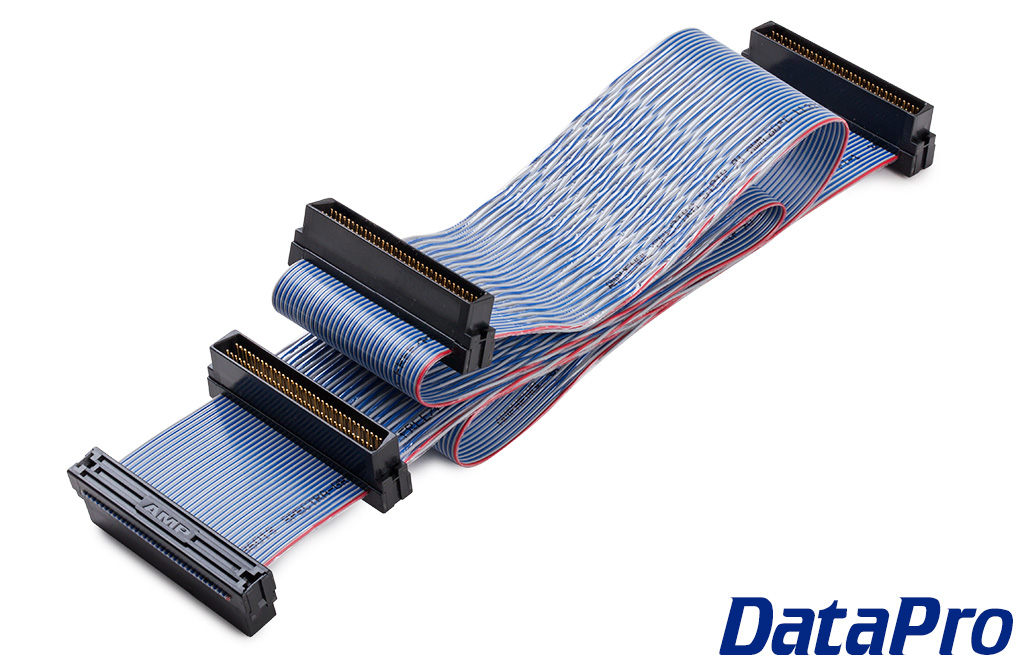

String up a series of SCSI spindles with DataPro's LVD ribbon cables! Available in configurations of up to seven drives, and customizable to any layout you want, there's no better way to keep those valuable SCSI drives in service.

5072-00R   SCSI Ultra-320 LVD+SE 2-Device   27IN $ 74.95   6 in stock   Add to Cart
5073-00R   SCSI Ultra-320 LVD+SE 3-Device
Not stocked. Special order only.
  27IN $ 79.95 Call for ETA   Backorder
5074-00R   SCSI Ultra-320 LVD+SE 4-Device
Not stocked. Special order only.
  32IN $ 89.95 Call for ETA   Backorder
5075-00R   SCSI Ultra-320 LVD+SE 5-Device
Not stocked. Special order only.
  37IN $ 99.95 Call for ETA   Backorder
5076-00C   SCSI Ultra-320 LVD+SE 6-Device
Not stocked. Special order only.
  43IN $ 109.95 Call for ETA   Backorder
5077-00R   SCSI Ultra-320 LVD+SE 7-Device
Not stocked. Special order only.
  48IN $ 119.95 Call for ETA   Backorder

This is an internal SCSI ribbon cable for LVD SCSI, more eloquently known as "Low Voltage Differential". This cable also works for SE (standard "single-end") SCSI, and operates at the highest speed of the slowest device on the bus.

These classic SCSI assemblies are available in a variety of lengths, depending on the number of connectors you require.

We can also custom-build this cable to your dimensions, with the restriction that the cable is specially twisted and connectors can only be mounted where the cable is flat (about every six inches).

All of our internal LVD cable products use ultra-high grade Hitachi cable, which is a 0.025" stranded, dual-laminated, TPO micro quick-twist wire. They feature 30 AWG stranded tinned copper, with each conductor individually extruded with TPO. A thin, clear laminate coating is applied to both sides to prevent floating and maintain maximum impedance consistency throughout the entire length of the cable.

This cable is compatible with:

  • SCSI Fast-XX
  • SPI-2
  • SPI-3
  • Ultra-160 LVD
  • Ultra-320 LVD
  • SPI-4 Ultra-320 LVD
  • SE (single-end) wide and ultra-wide applications.

The connectors are laid out as follows: 16 inches between the controller connector and the first device connector; 5.25 inches between each device connector; and two inches between the last device connector and the terminator connector.

The last connector is available to attach a terminator, however a terminator is NOT included as part of the cable.


---. ---. ---. ---. ---. ---.
|::|=====|::|===xxx===|::|==== ===|::|===xxx===|::|===xxx===xxx===|::|68
|::|=====|::|===xxx===|::|=== ====|::|===xxx===|::|===xxx===xxx===|::|
|::|=====|::|===xxx===|::|==== ===|::|===xxx===|::|===xxx===xxx===|::|
|::|=====|::|===xxx===|::|=== ====|::|===xxx===|::|===xxx===xxx===|::|
|::|=====|::|===xxx===|::|==== ===|::|===xxx===|::|===xxx===xxx===|::|
|::|=====|::|===xxx===|::|=== ====|::|===xxx===|::|===xxx===xxx===|::|01
---' ---' ---' ---' ---' ---'
2 In = 4 In = --(etc.)-- = 5.25 In = = 16 Inches =


---. ---. ---. ---.
---' ---' ---' ---'
2 In = 9.25 In = = 16 Inches =

RoHS Compliant
IPC Compliant
Made in the USA

Related Products:


  • Length:
    • 16 inches from card to 1st device
    • 5.25 inches to each subsequent device
    • 4 inches to last device,
    • 2 inches to terminator
  • Capacitance:
    • 11 pF/ft (G-S)
    • 15 pF/ft (G-S-G)
  • Impedance:
    • 86 Ohms (G-S-G) SE
    • 115 Ohms (G-S) Diff.
  • Propagation Delay:
    • 1.56 ns/ft
    • 0.035 ns/ft max. skew
