DVI-I Dual Link Panel-Mount Extension Cable


Categories:
> Digital Video Panel-Mount Cables, DVI-I Cables, DVI Cables
DVI-I Dual Link Panel-Mount Extension Cable


Our low-profile DVI cables offer fully shielded protection in minimal space, ideal for bulkhead mounting. Install DVI ports wherever you need them with these convenient panel-mount digital video cables!

1143-01C   DVI-I DIG/ANA Panel-Mount M/F   1 ft $ 26.95   211 in stock   Add to Cart
1143-02C   DVI-I DIG/ANA Panel-Mount M/F   2 ft $ 27.95   1343 in stock   Add to Cart
1143-03C   DVI-I DIG/ANA Panel-Mount M/F   3 ft $ 28.95   102 in stock   Add to Cart
1143-04C   DVI-I DIG/ANA Panel-Mount M/F   4 ft $ 29.95   429 in stock   Add to Cart
1143-06C   DVI-I DIG/ANA Panel-Mount M/F   6 ft $ 31.95   1659 in stock   Add to Cart
1143-10C   DVI-I DIG/ANA Panel-Mount M/F   10 ft $ 34.95   52 in stock   Add to Cart
1143-15C   DVI-I DIG/ANA Panel-Mount M/F   15 ft $ 39.95   28 in stock   Add to Cart

Technical Documents

Download Drawing

Download 3D Model

The 1143 series DVI Panel-mount Extension cable is the perfect solution for remotely installing a DVI port on any face plate, enclosure, or bulkhead.

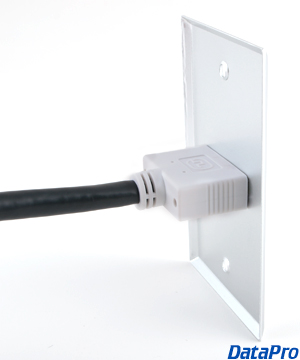

Its low-profile connector is designed for a minimal footprint when you fasten the female end to a DVI cutout. Sturdy hex mounting screws secure the connector to the panel, allowing remote users to access a computer, projector, monitor, or other digital video device. It is specifically designed to fit in a DataPro DVI Face Plate, or any custom plate made in our Custom Plate Designer.

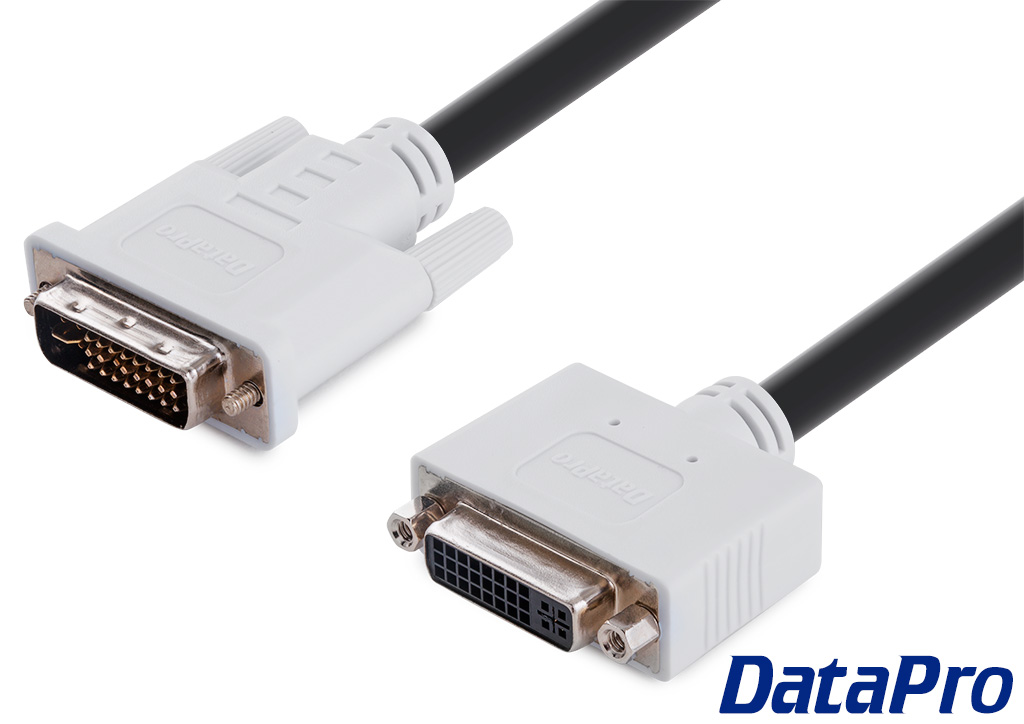

This is a Male-to-Female Dual-Link DVI cable, with DVI-I connectors on each end. The female connector has an exclusive specially-designed backshell to minimize the clearance requirements behind the panel.

The DVI-I style connectors on this cable make it the most broadly compatible with your devices. A DVI-I can connect any two analog devices together, or two digital devices together, regardless of their connector type.

However, this cable will not work to connect a digital device (DVI-D) to an analog one (DVI-A).

For help finding the right DVI cable, see our DVI Info and FAQ page.


RoHS Compliant
REACH Compliant
CL2 In-Wall Rated
2560x1600 Capable

Related Products:

Features:

  • Panel or bulkhead mountable on up to 2.5mm thick material
  • Includes reduced-height 4-40 hex screws
  • Gold-plates contacts


Specifications:

  • Supports resolutions up to 2560x1600 (WQXGA)
  • Allowable panel depth:
    • 2.0mm (full mating)
    • 2.5mm (max recommended)
